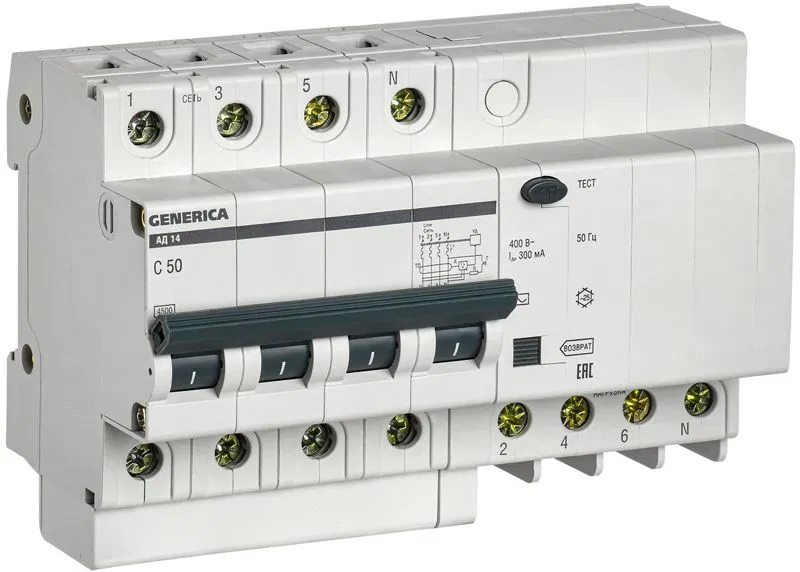

Residual current circuit breaker AD14 4P 50A 300mA GENERICA MAD15-4-050-C-300

SKU: MAD15-4-050-C-300 ETIM: EC000905

2,660 ₽

Get back 26 ₽ in points

Stock by warehouse

Manufacturer warehouse September 23 · Delivery to Smolensk Oblast on September 28 51 шт On order Manufacturer warehouse September 23 · Delivery to Smolensk Oblast on September 28 1 шт On order

Description Specifications Reviews

Mounting installation depth 75 мм

Current limiting class 3

Number of protected poles 4

Number of poles 4

Maximum supply cable cross-section 25 кв.мм

Availability of residual current release Yes

Thermal release available Yes

Electromagnetic release present Yes

Electronic release available No

Rated impulse withstand voltage 4

Rated differential making and breaking capacity 4500

Rated breaking capacity in accordance with EN 60898 4.5 кА

Rated breaking capacity per IEC 60947-2 4.5 кА

Rated voltage 230/400 В

Rated current 50 А

Rated leakage current 0.3 мА

Total number of poles 4

Breaking capacity per IEC 61009-1 4500

Breaking capacity 4.5 кА

Current type Alternating current (AC)

With switched neutral conductor Yes

Tripping system Thermal, electromagnetic

Mounting method On DIN rail

IP protection rating IP20

Residual current type Alternating current (AC)

Connection type Screw connection

Tripping characteristic It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.

Frequency (Hz) 50 Hz

Width in modular units 7.4
