Dynamometer DL-R-02 NILED 13303371

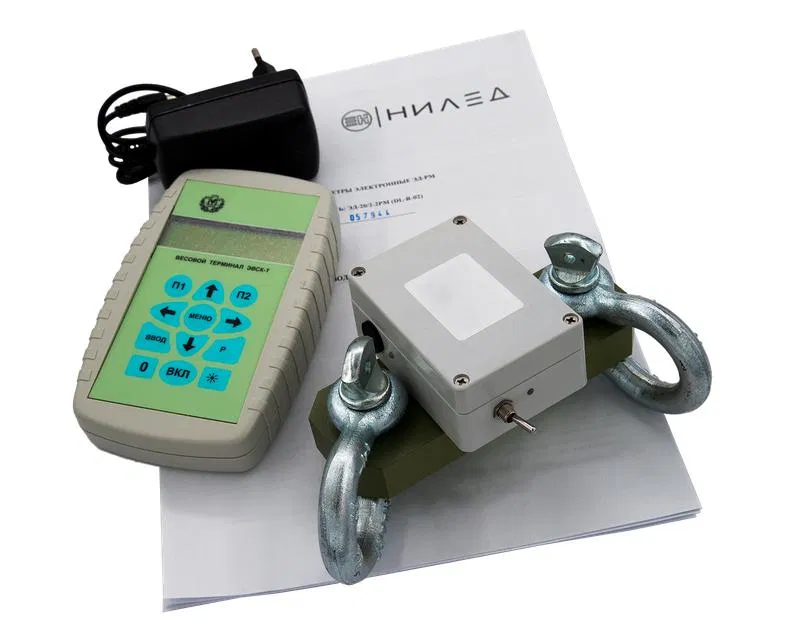

Measurement of mechanical stress/wire tension when the wire is under tension in the anchor span. Dynamometers are designed for measuring static tensile and compressive forces. They consist of a force-measuring strain gauge sensor and a terminal. The sensor consists of an elastic element connected to force-transmitting parts that ensure the installation conditions of the dynamometer and the module, which is a power supply unit combined with a transceiver module. Signal transmission to the terminal is carried out via radio channel. Ambient air temperature range, °C: from -30 to +40 Accuracy class according to GOST R 55223-2012: 0.5; 1; 2 Sensor dimensions, mm, not more than: 150*95*65 Terminal dimensions, mm (length, width, height), not more than: 200*95*40 Sensor mass, kg, not more than: 1.2 Terminal mass, kg, not more than: 0.4 Maximum measurement range, kN: 20 Guaranteed operating range with fully charged batteries, m: from 50 to 100 Dynamometers are powered by 18650 batteries Voltage, V: 3.7
