DKC
EC22CCOMS JSC "Dielectric Cable Systems"
SKU: EC22CCOMS
ETIM: EC002883
166401 ₽
Price list (incl. VAT):
237716 ₽
Preorder

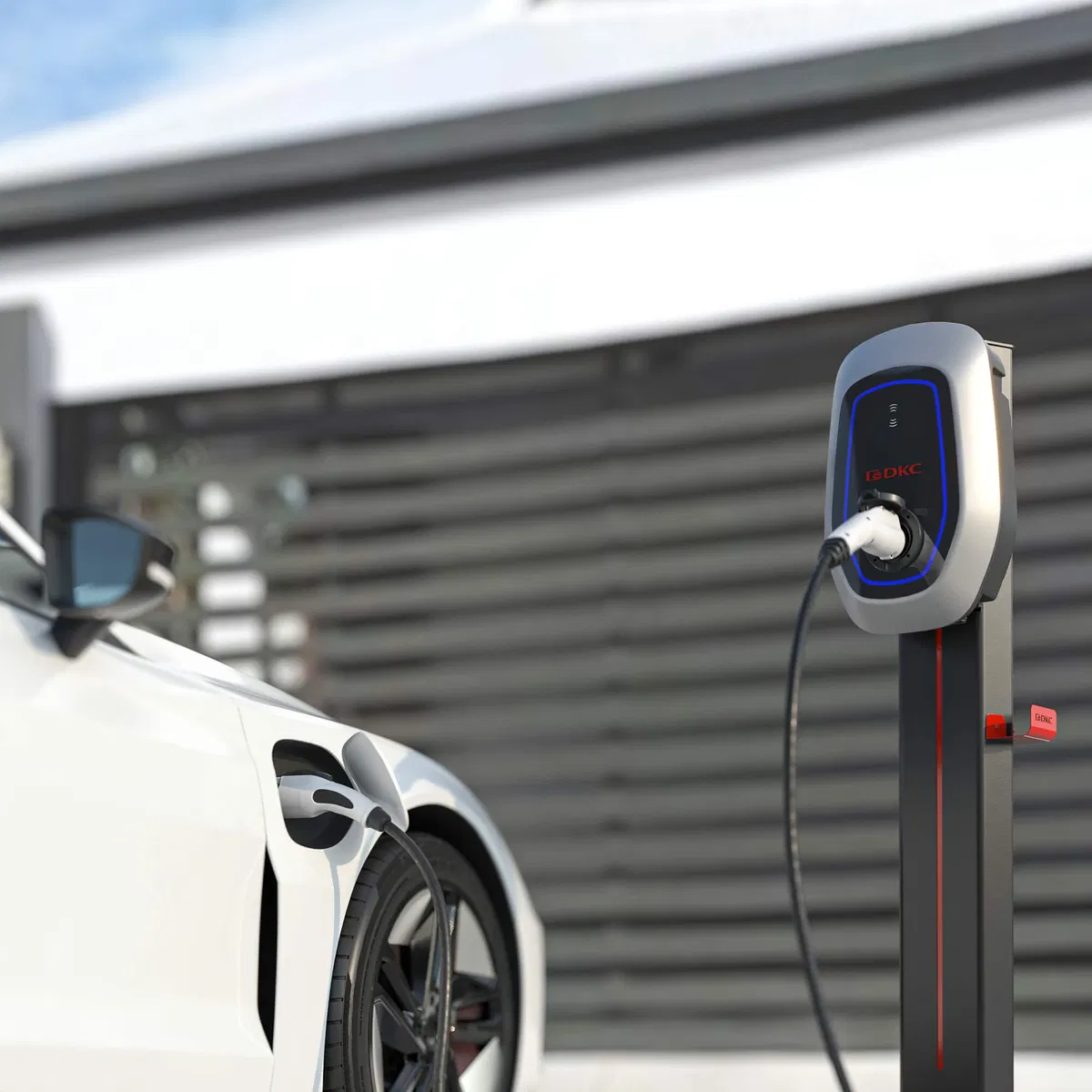

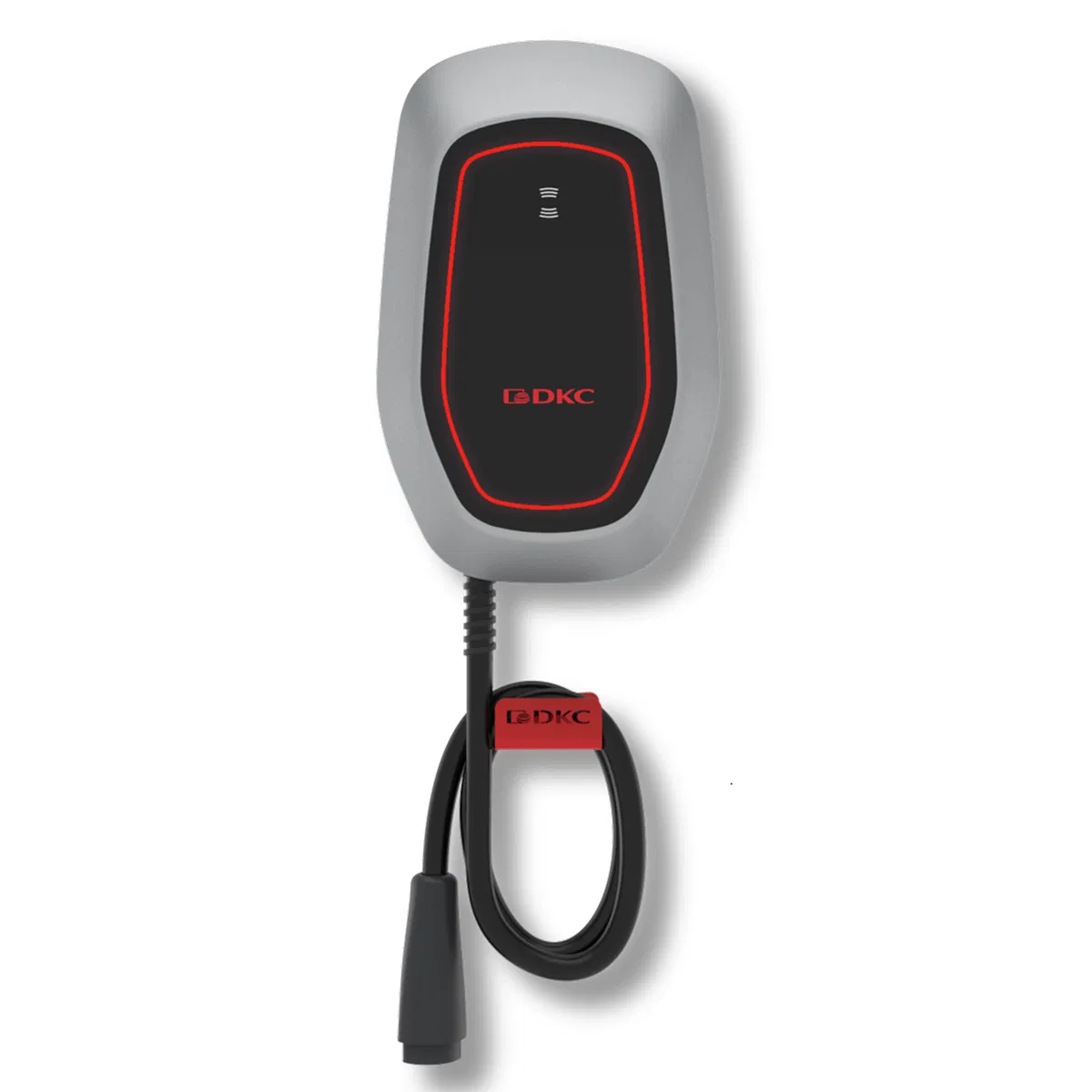

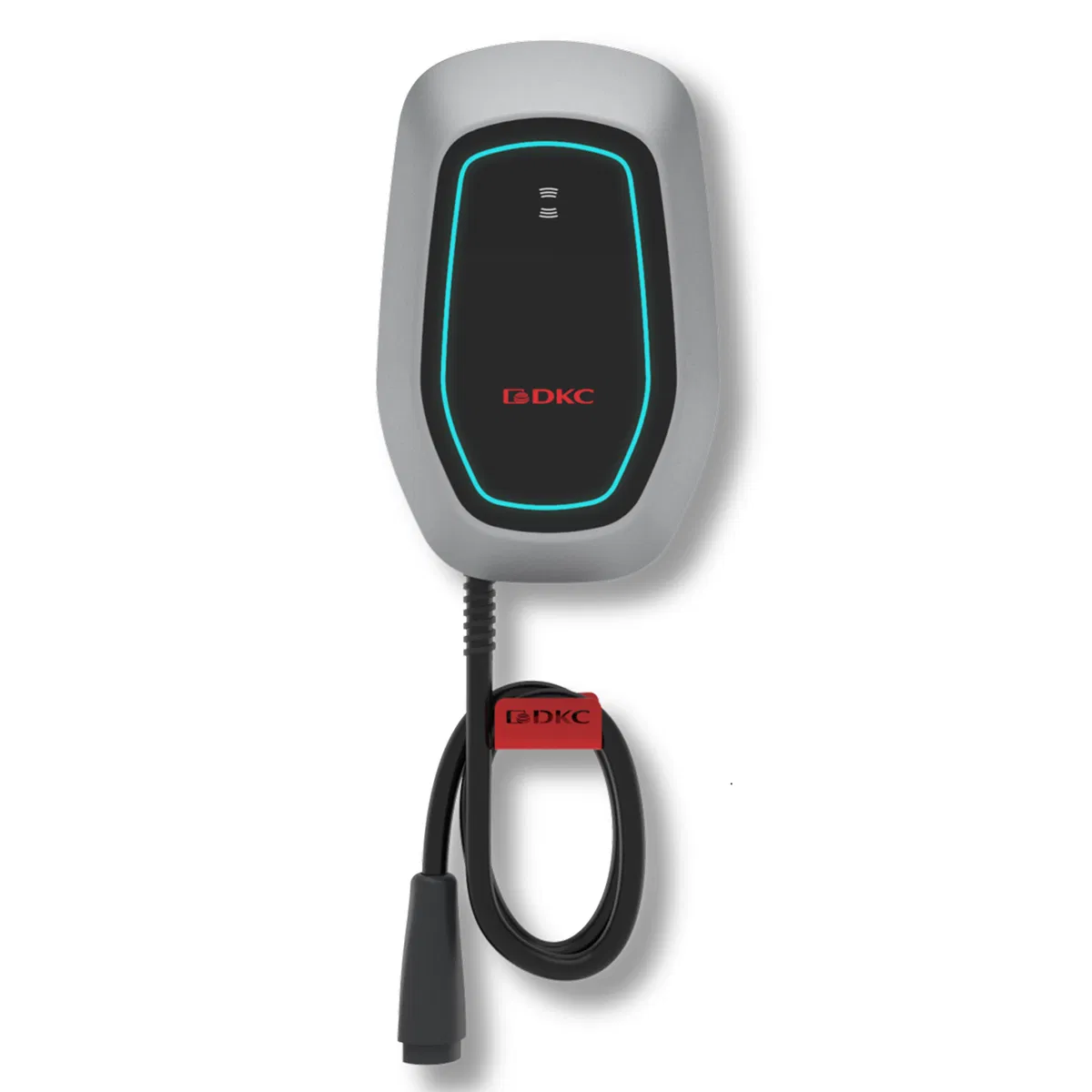

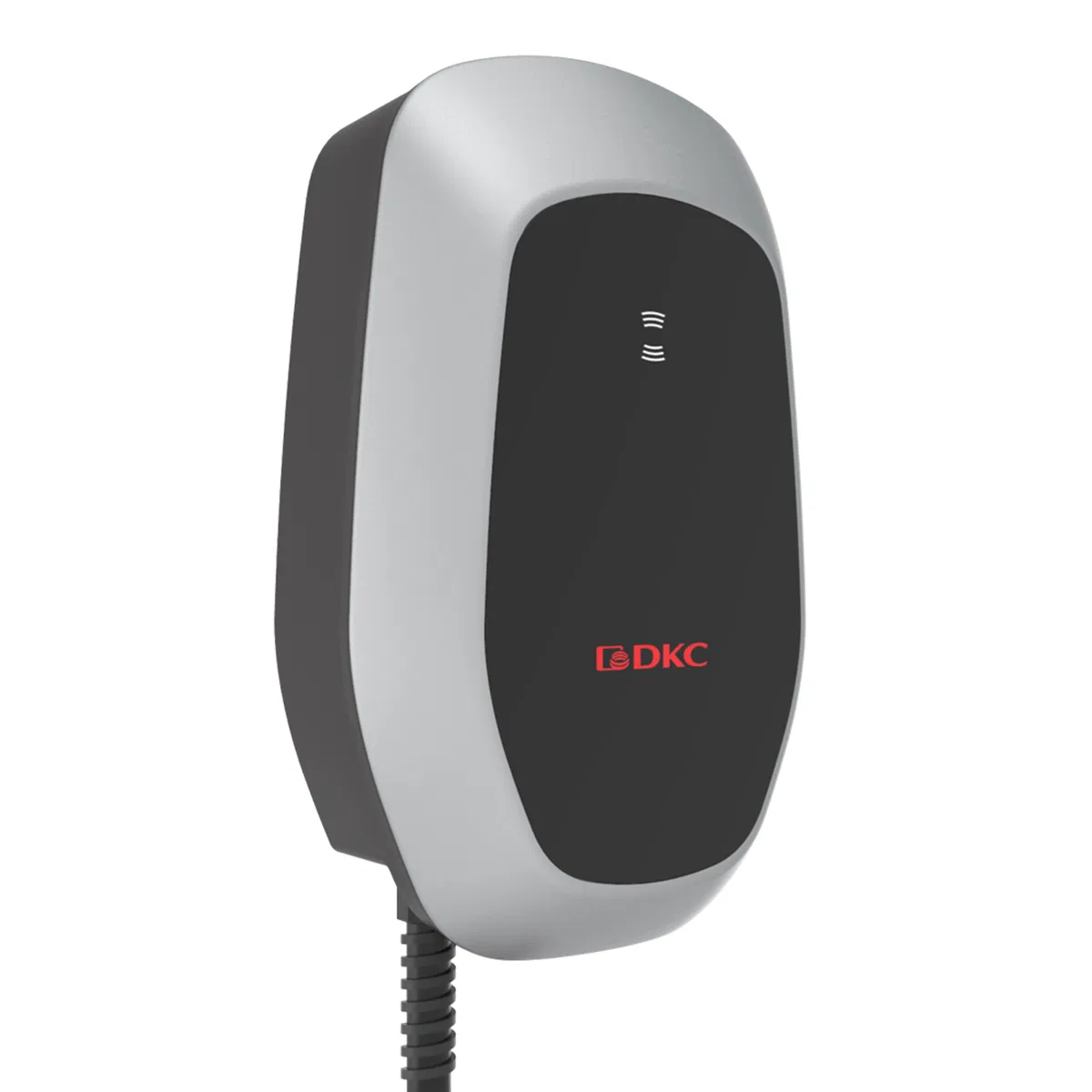

Electric vehicle charging station "EOS Charge" with maximum power up to 22 kW (AC), equipped with a 5 m Type 2 cable. Reliability and safety are ensured by components with an increased service life. Warranty – 5 years. Intended for use when connected to a dedicated power line without the need for load balancing, when connecting two charging stations as a slave, or more than two stations as both master and slave with dynamic load balancing (DLB) via an external compatible power meter.
| Height | 497 мм |
| Height | 497 мм |
| Depth | 150 мм |
| Number of chargers | 1 |
| Number of type A residual current breakers | 1 |
| Max. power per charging point | 22 кВт |
| Housing material | Plastic |
| Housing material | Plastic |
| Connection model for installation | 3-phase |
| Rated power | 22 кВт |
| With communication interface | Yes |
| With house connection box (HAK) | No |
| With charge control | Yes |
| With energy meter | No |
| Mounting method | Wall mounting |
| IP protection rating | IP54 |
| Impact resistance | IK10 |
| Access control function | Yes |
| Width | 315 мм |
