IEK

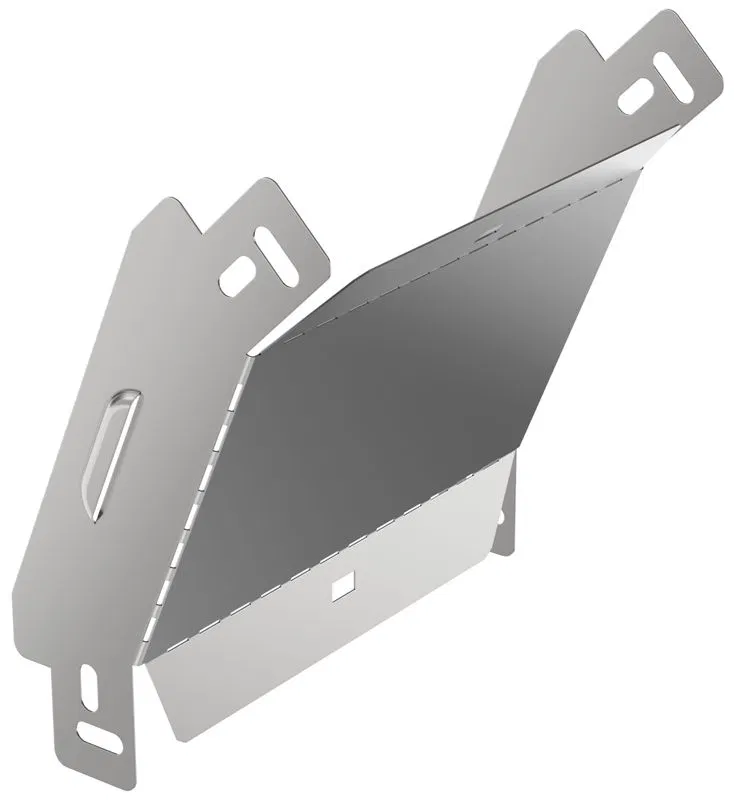

ESCA 3 Vertical external bend 45deg 50x200-0,6 IEK ES3-PV-45-050-200-06
SKU: ES3-PV-45-050-200-06
ETIM: EC002400
6,219 ₽
Order multiple: 10 шт
Analogues by specifications
45° vertical external bend is designed for organizing cable route rotation in a vertical plane.
Accessory is supplied flat, featuring guide perforation for bending and assembly before installation.
Connection of the accessory to the tray is made via a telescopic connector. Suitable for all types of ESCA series sheet trays. The cover for the accessory is ordered separately.
Accessory is made of Sendzimir galvanized steel (zinc protective layer not less than 5-10 μm).
Weight
0.26 кг
Material type/grade
Other
Height
50 мм
Height
50 мм
Cable tray height
50 мм
Length
209 мм
Length
209 мм
Protective surface coating
Sendzimir galvanizing
Direction change
Vertically descending (external)
Design
Integrated connector
Corrosion resistance class
2
Climatic version
U2, HL2, UHL2, OM2
Material
Steel
Mounting perforation in base
No
Mounting temperature from
-50...40 град.C
RAL colour number
7047
Perforated side wall
No
Rotation (angle)
45
Suitable for circuit integrity (fire resistance)
No
IP protection rating
IP00
Operating temperature from
-50...40 град.C
Metal thickness
0.6
Zinc coating thickness
10
Colour
Light grey
Color
Light grey
Width
200 мм
Cable tray width
200 мм
Branch width
200 мм
Wide-range version
No
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
Price on request
DKC Vertical internal corner 90 degrees 80x150, 1.5 mm, AISI 304 complete with fasteners and connecting plates required for mounting ISIM815KC DKC
SKU: ISIM815KC
Price on request
IEK ESCA 7 Vertical internal bend 90deg 50x200-1,5 HDZ85 IEK ES7-PN-90-050200-15-HDZ85
SKU: ES7-PN-90-050200-15-HDZ85
10979 ₽
DKC Vertical external sheet metal corner 45 degrees 80x800, R600 USOC688 DKC
SKU: USOC688
9407 ₽

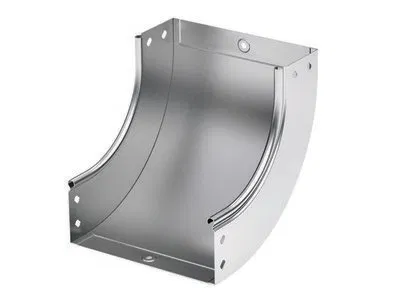

DKC Vertical internal corner 90 degrees 600x50, 1.2 mm, hot zinc, complete with fasteners and connecting plates required for installation SIN560KHDZ DKC
