IEK

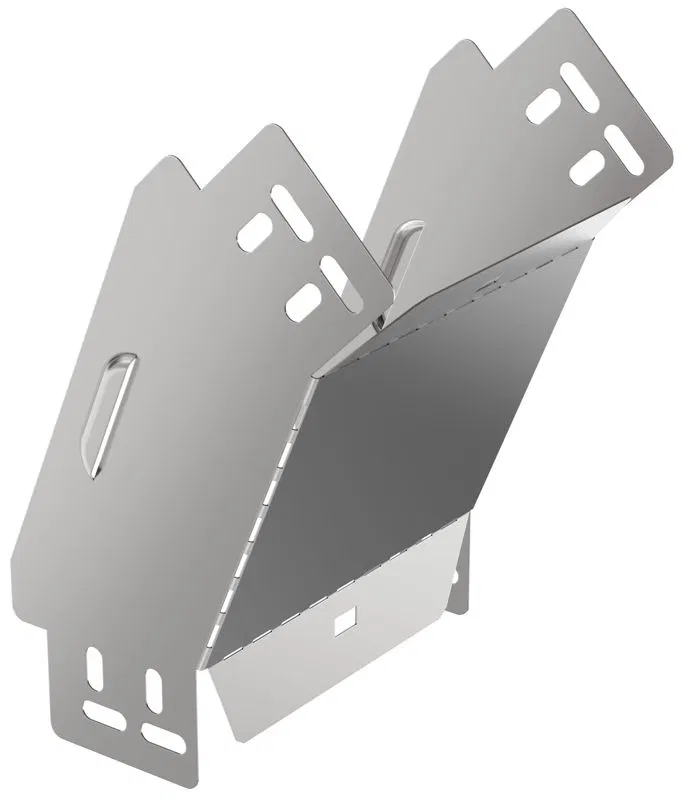

ESCA 3 Vertical external bend 45deg 80x150-0,6 IEK ES3-PV-45-080-150-06
SKU: ES3-PV-45-080-150-06
ETIM: EC002400
559 ₽
Get back 5 ₽ in points
Analogues by specifications
45° vertical external bend is designed for organizing cable route rotation in a vertical plane.
Accessory is supplied flat, featuring guide perforation for bending and assembly before installation.
Connection of the accessory to the tray is made via a telescopic connector. Suitable for all types of ESCA series sheet trays. The cover for the accessory is ordered separately.
Accessory is made of Sendzimir galvanized steel (zinc protective layer not less than 5-10 μm).
Weight
0.29 кг
Material type/grade
Other
Height
80 мм
Height
80 мм
Cable tray height
80 мм
Length
230 мм
Length
230 мм
Protective surface coating
Sendzimir galvanizing
Direction change
Vertically descending (external)
Design
Integrated connector
Corrosion resistance class
2
Climatic version
U2, HL2, UHL2, OM2
Material
Steel
Mounting perforation in base
No
Mounting temperature from
-50...40 град.C
RAL colour number
7047
Perforated side wall
No
Rotation (angle)
45
Suitable for circuit integrity (fire resistance)
No
IP protection rating
IP00
Operating temperature from
-50...40 град.C
Metal thickness
0.6
Zinc coating thickness
10
Color
Light grey
Colour
Light grey
Width
150 мм
Cable tray width
150 мм
Branch width
150 мм
Wide-range version
No
