IEK
ESCA 5 Vertical internal swivel 45deg 100x150-0.8 RAL 9016 IEK ES5-PN-45-100-150-08-RGA
SKU: ES5-PN-45-100-150-08-RGA
ETIM: EC002400
1,609 ₽
Analogues by specifications

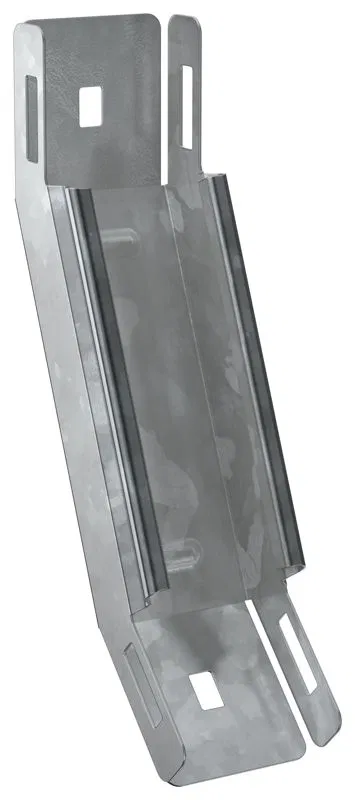

Vertical internal bend 45° is designed to organize the turning of a cable route in a vertical plane.
The accessory is joined to the tray using a telescopic connector. Suitable for all types of ESCA series sheet metal trays. The cover for the accessory is ordered separately.
The accessory is made of steel galvanized by the Sendzimir method (zinc protective layer not less than 5-10 μm).
Weight
0.54 кг
Material type/grade
Other
Height
100 мм
Height
100 мм
Cable tray height
100 мм
Length
252 мм
Length
252 мм
Protective surface coating
Powder coating
Direction change
Vertically ascending (internal)
Design
Integrated connector
Corrosion resistance class
2
Climatic version
U2, HL2, UHL2, OM2
Material
Steel
Mounting perforation in base
No
Mounting temperature from
-50...40 град.C
Pickled stainless steel
No
RAL colour number
9016
Perforated side wall
No
Rotation (angle)
45
Suitable for circuit integrity (fire resistance)
No
IP protection rating
IP00
Operating temperature from
-50...40 град.C
Metal thickness
0.8
Zinc coating thickness
10
Color
Pure white
Colour
Pure white
Width
150 мм
Cable tray width
150 мм
Branch width
150 мм
Wide-range version
No
