IEK

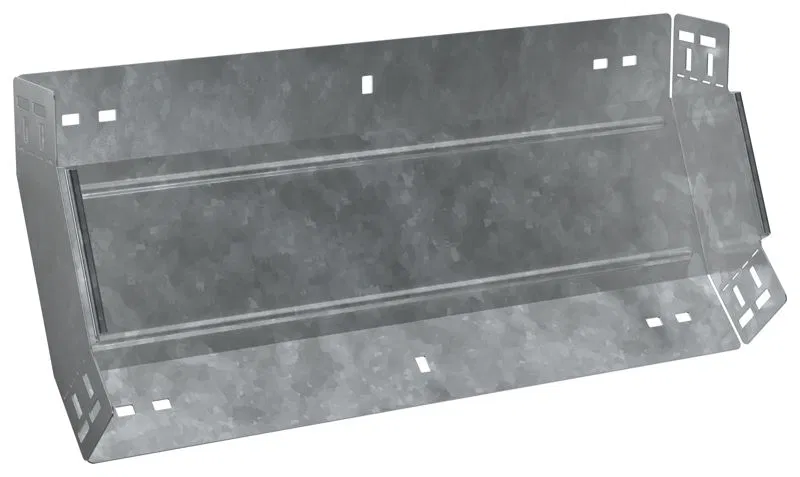

Vertical internal tray corner 90deg. 400x80 steel 0.8mm HDZ ESCA 5 IEK ES5-PN-90-080-400-08-HDZ
SKU: ES5-PN-90-080-400-08-HDZ
ETIM: EC002400
3,462 ₽
Get back 34 ₽ in points
Analogues by specifications
Vertical internal bend 90° is designed to organize the cable route turn in the vertical plane.
Connection of the accessory to the tray is carried out via a telescopic connector. Suitable for all types of ESCA series sheet trays. The cover for the accessory is ordered separately.
The accessory is made of hot-dip galvanized steel (zinc coating layer not less than 55 μm).
Weight
1.26 кг
Material type/grade
Other
Height
80 мм
Height
80 мм
Cable tray height
80 мм
Length
295 мм
Length
295 мм
Protective surface coating
Hot-dip coating
Direction change
Vertically ascending (internal)
Design
Integrated connector
Corrosion resistance class
6
Climatic version
U1, KhL1, UKhL1, UKhL5, OM1
Material
Steel
Mounting perforation in base
No
Mounting temperature from
-50...40 град.C
Pickled stainless steel
No
RAL colour number
7047
Perforated side wall
No
Rotation (angle)
90
Suitable for circuit integrity (fire resistance)
No
IP protection rating
IP00
Operating temperature from
-50...40 град.C
Metal thickness
0.8
Zinc coating thickness
55
Colour
Light grey
Color
Light grey
Width
400 мм
Cable tray width
400 мм
Branch width
400 мм
Wide-range version
No
