IEK

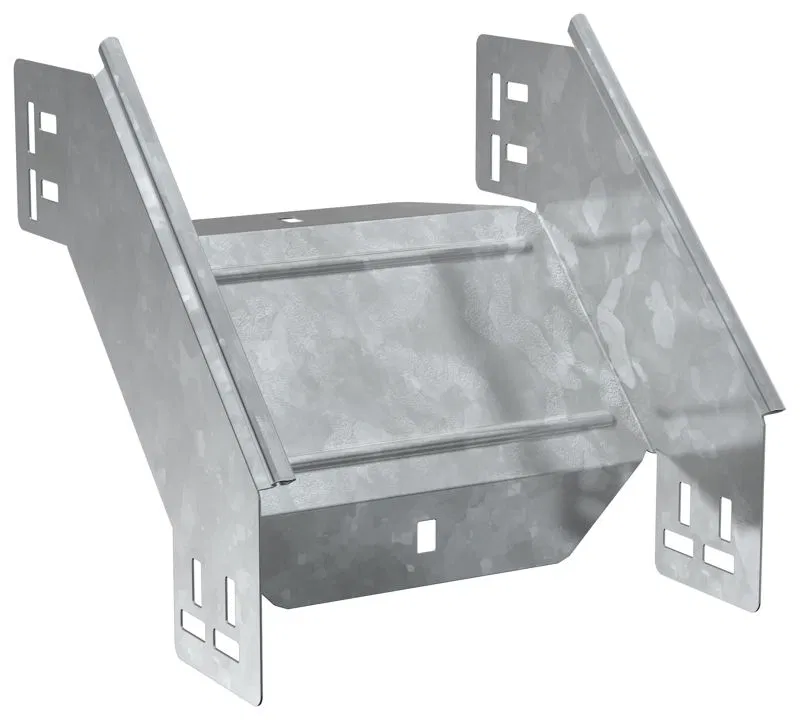

ESCA 7 Vertical swivel external 45deg 80x100-2.0 HDZ IEK ES7-PV-45-080-100-20-HDZ
SKU: ES7-PV-45-080-100-20-HDZ
ETIM: EC002400
6,643 ₽
Analogues by specifications
Vertical external bend 45° is designed to organize the cable route turn in the vertical plane.
Connection of the accessory to the tray is carried out via a telescopic connector.
Suitable for all types of ESCA series sheet trays.
The cover for the accessory is ordered separately.
The accessory is made of hot-dip galvanized steel (zinc coating layer not less than 55 μm).
Weight
0.91 кг
Material type/grade
Other
Height
80 мм
Height
80 мм
Cable tray height
80 мм
Length
248 мм
Length
248 мм
Protective surface coating
Hot-dip coating
Direction change
Vertically descending (external)
Design
Integrated connector
Corrosion resistance class
6
Climatic version
U1, KhL1, UKhL1, UKhL5, OM1
Material
Steel
Mounting perforation in base
No
Mounting temperature from
-50...40 град.C
Pickled stainless steel
No
RAL colour number
7047
Perforated side wall
No
Rotation (angle)
45
Suitable for circuit integrity (fire resistance)
No
IP protection rating
IP00
Operating temperature from
-50...40 град.C
Metal thickness
2.0
Zinc coating thickness
55
Colour
Light grey
Color
Light grey
Width
100 мм
Cable tray width
100 мм
Branch width
100 мм
Wide-range version
No
