IEK
ESCA 7 Vertical external bend 45deg 80x200-2,0 RAL 9016 IEK ES7-PV-45-080-200-20-RGA
SKU: ES7-PV-45-080-200-20-RGA
ETIM: EC002400
6,964 ₽
Analogues by specifications

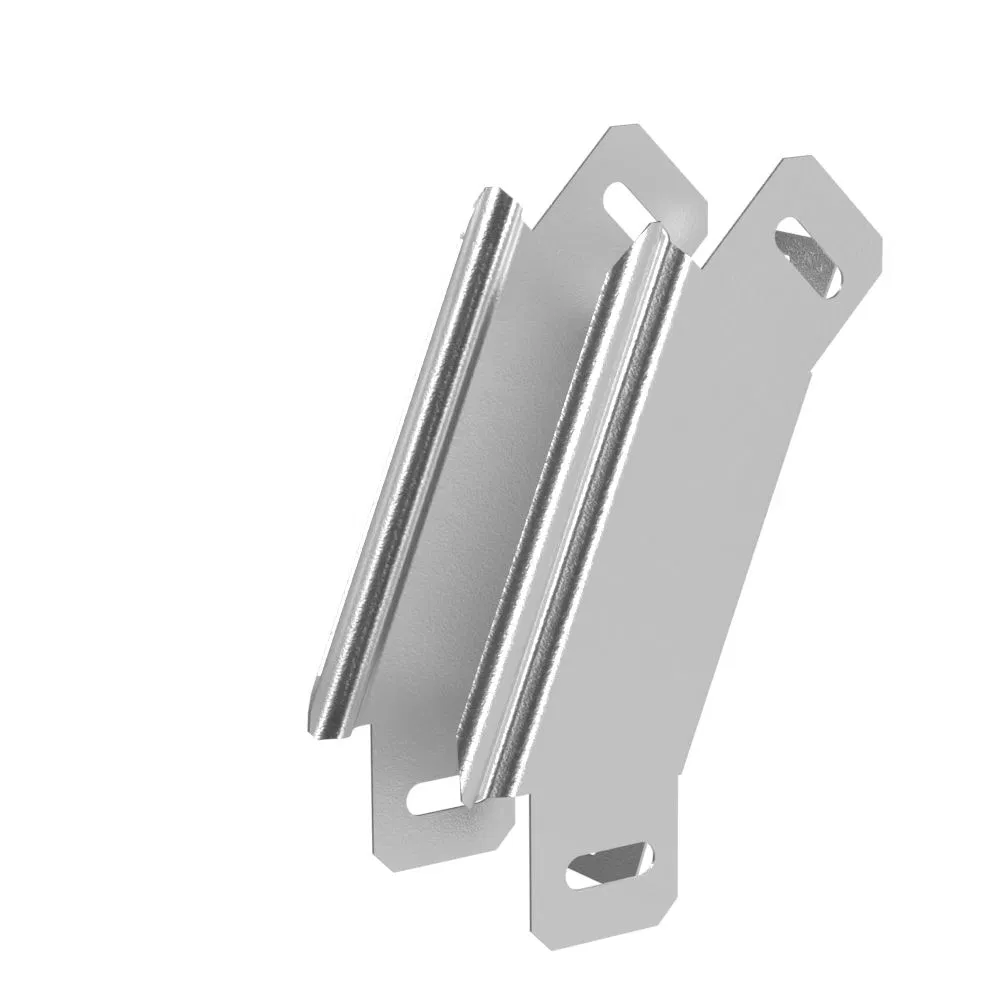

Vertical external bend 45° is designed to organize the turning of the cable route in the vertical plane.
The connection of the accessory to the tray is carried out via a telescopic connector.
Suitable for all types of ESCA series sheet cable trays.
The cover for the accessory is ordered separately.
The accessory is made of galvanized steel using the Sendzimir method (zinc protective layer not less than 5-10 μm).
Weight
1.17 кг
Material type/grade
Other
Height
80 мм
Height
80 мм
Cable tray height
80 мм
Length
248 мм
Length
248 мм
Protective surface coating
Powder coating
Direction change
Vertically descending (external)
Design
Integrated connector
Corrosion resistance class
2
Climatic version
U2, HL2, UHL2, OM2
Material
Steel
Mounting perforation in base
No
Mounting temperature from
-50...40 град.C
Pickled stainless steel
No
RAL colour number
9016
Perforated side wall
No
Rotation (angle)
45
Suitable for circuit integrity (fire resistance)
No
IP protection rating
IP00
Operating temperature from
-50...40 град.C
Metal thickness
2.0
Zinc coating thickness
10
Color
Pure white
Colour
Pure white
Width
200 мм
Cable tray width
200 мм
Branch width
200 мм
Wide-range version
No
