IEK

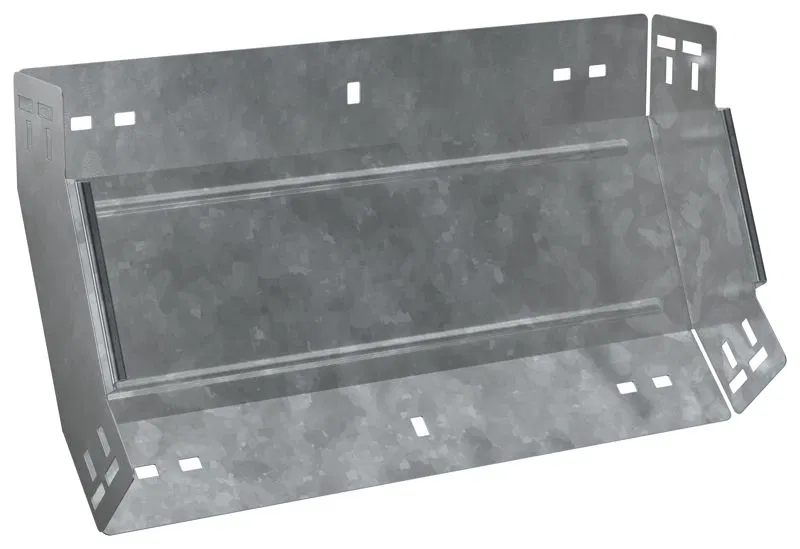

ESCA 7 Vertical internal turn 45deg 100x400-1.5 HDZ IEK ES7-PN-45-100-400-15-HDZ
SKU: ES7-PN-45-100-400-15-HDZ
ETIM: EC002400
6,854 ₽
Get back 68 ₽ in points
Analogues by specifications
Vertical internal 45° bend is designed for organizing cable route turns in the vertical plane.
The accessory is joined to the tray using a telescopic connector.
Suitable for all types of ESCA series sheet metal trays.
The cover for the accessory is ordered separately.
The accessory is made of hot-dip galvanized steel (zinc protective layer not less than 55 μm).
Weight
1.84 кг
Material type/grade
Other
Height
100 мм
Height
100 мм
Cable tray height
100 мм
Length
252 мм
Length
252 мм
Protective surface coating
Hot-dip coating
Direction change
Vertically ascending (internal)
Design
Integrated connector
Corrosion resistance class
6
Climatic version
U1, KhL1, UKhL1, UKhL5, OM1
Material
Steel
Mounting perforation in base
No
Mounting temperature from
-50...40 град.C
Pickled stainless steel
No
RAL colour number
7047
Perforated side wall
No
Rotation (angle)
45
Suitable for circuit integrity (fire resistance)
No
IP protection rating
IP00
Operating temperature from
-50...40 град.C
Metal thickness
1.5
Zinc coating thickness
55
Colour
Light grey
Color
Light grey
Width
400 мм
Cable tray width
400 мм
Branch width
400 мм
Wide-range version
No
