IEK
ESCA Smooth bend 45deg type B10 100x500mm HDZ IEK CPV51-0-45-100-500-HDZ
SKU: CPV51-0-45-100-500-HDZ
ETIM: EC002400
4,987 ₽
Analogues by specifications
Vertical internal smooth 45° bend is designed for organizing a 45° vertical internal turn of a cable route. The accessory cover is not included in the kit.
The accessory is made of steel with a zinc coating applied by immersion in molten zinc (zinc protective layer not less than 55 μm).
Weight
1.38 кг
Material type/grade
Galvanized steel
Internal radius
100 мм
Height
100 мм
Height
100 мм
Cable tray height
100 мм
Length
228 мм
Length
228 мм
Protective surface coating
Hot-dip coating
Direction change
Vertically ascending (internal)
Design
With connector
Corrosion resistance class
6
Climatic version
U1, KhL1, UKhL1, UKhL5, OM1
Material
Steel
Mounting perforation in base
No
Mounting temperature from
-50...40 град.C
Pickled stainless steel
No
RAL colour number
7047
Perforated side wall
No
Rotation (angle)
45
Suitable for circuit integrity (fire resistance)
No
IP protection rating
IP00
Operating temperature from
-50...40 град.C
Metal thickness
0.8
Zinc coating thickness
55
Color
Light grey
Colour
Light grey
Width
500 мм
Cable tray width
500 мм
Branch width
500 мм
Wide-range version
No
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
Price on request
IEK Tray cover clamp 100x150mm universal HDZ IEK N-HK2-100150-HDZ
SKU: N-HK2-100150-HDZ
5378 ₽
OBO Bettermann Corner section for LKS 60x200 RBL 90 620 FT RU steel hot-galv OBO 6837630 OBO Bettermann
SKU: 6837630
Price on request
IEK Universal horizontal partition 100mm for accessories HDZ85 IEK CRP02-0-100-HDZ85
SKU: CRP02-0-100-HDZ85
3279 ₽

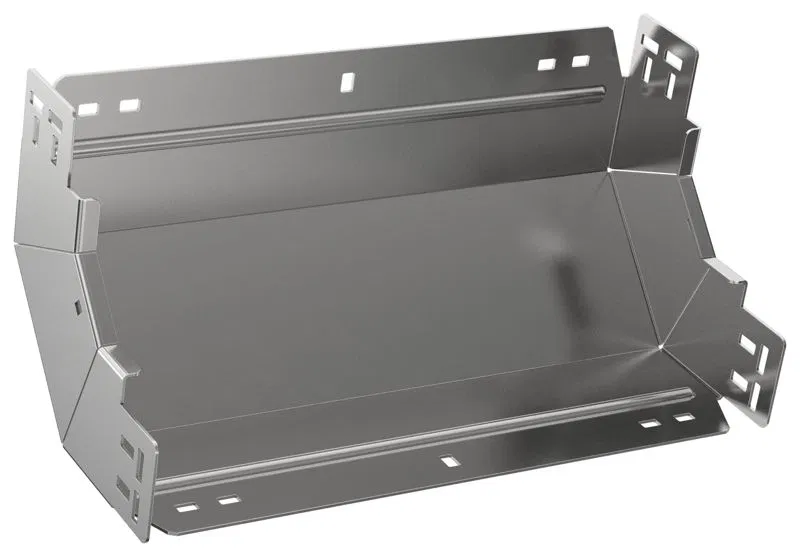

IEK ESCA 7 Vertical internal bend 90deg 100x150-1,5 IEK ES7-PN-90-100-150-15
