FINDER
Photocell outdoor mounting housing 1NO 12A 120V AC sensitivity adjustment 1…80lux IP54 FINDER 105181200000
SKU: 105181200000
ETIM: EC000189
5,068 ₽
Analogues by specifications
No description available
C-load
Yes
Illuminance range to
80 лк
Illuminance range from
1 лк
Switch-on delay
15 с
Switch-off delay
30 с
Protective surface coating
Untreated
Sensor design
Built-in light sensor
Contacts
One normally closed
Max switching power (connected load)
2760 Вт
Maximum switching current (resistive load)
12 А
Material
Plastic
Halogen-free
Yes
Rated voltage
120 В
Rotary
No
Suitable for ingress protection IP
IP54
Operating temperature
70 град.C
Operating temperature from
-30 град.C
Mounting method
Surface mounting
Color
White
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
1398 ₽
Меандр Photo relay FR-2M AC230V UHL4 without sensor (spec.) Meandr A8302-19911304
SKU: A8302-19911304
9052 ₽

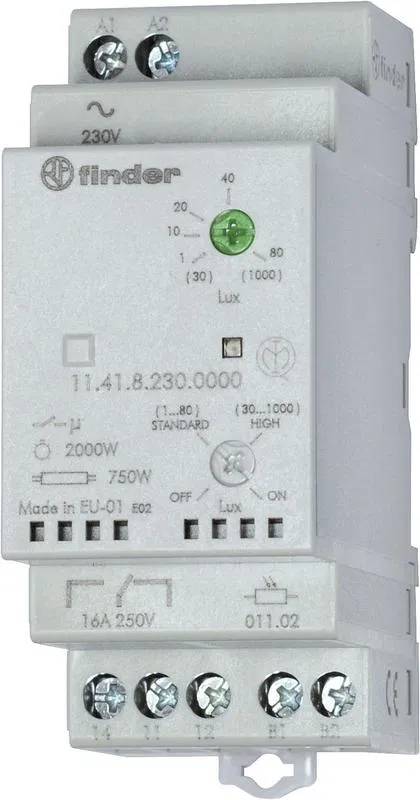

FINDER Modular photo relay with photocell 011.02 DIN rail mounting 35mm 1CO 16A 230V AC 1…80lux 30…1000lux 35mm photo relay IP20/photocell IP54 FINDER 114182300000
SKU: 114182300000
6947 ₽
FINDER Photocell outdoor mounting housing 2NO 16A (L + N) 230V AC 1…80lux IP54 FINDER 103282300000
SKU: 103282300000
5668 ₽

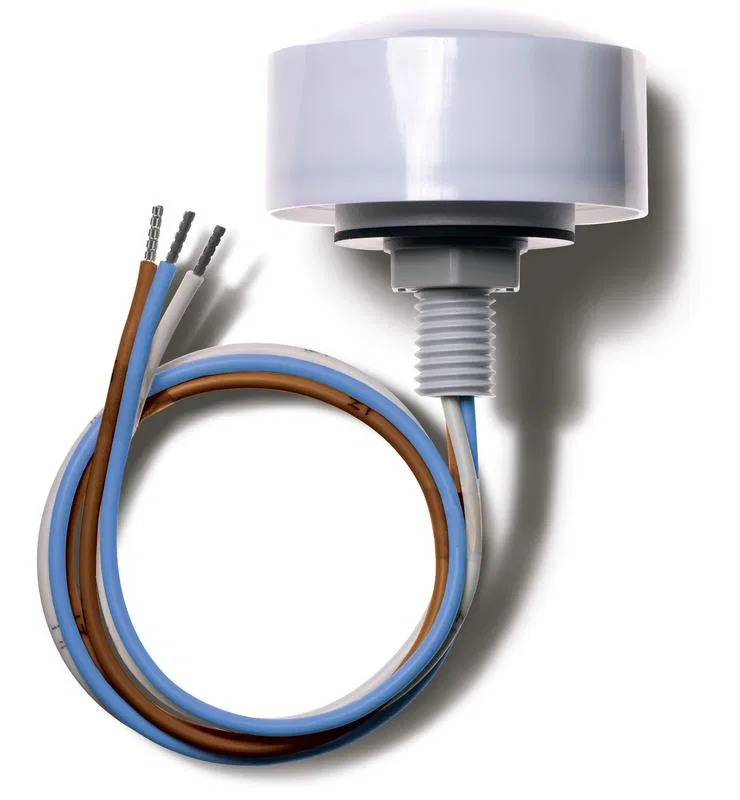

FINDER Photocell outdoor housing 1NO 16A 230V AC 10lux built-in wire 500mm IP54 FINDER 106182300000
