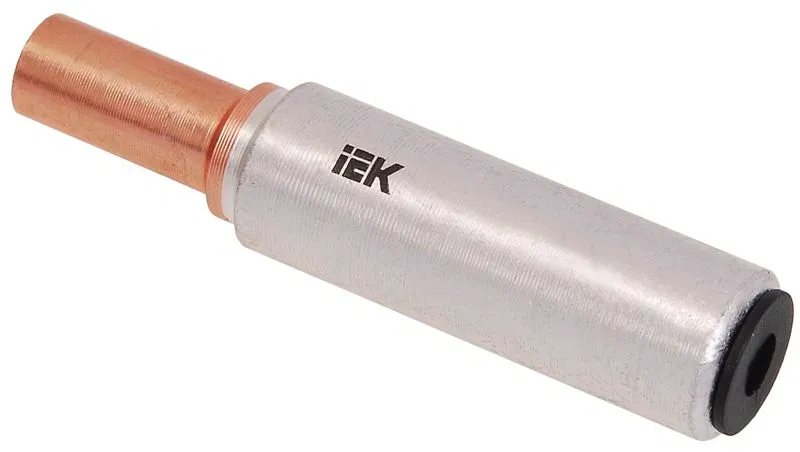

Sleeve GMA-120/150 copper-aluminum connecting IEK UGTL10-120-16
SKU: UGTL10-120-16
ETIM: EC001060
639 ₽
Get back 6 ₽ in points
Analogues by specifications
Stock by warehouse
GMA copper-aluminum sleeves are designed for connecting a copper conductor with an aluminum conductor of various cross-sections.
GMA sleeves are equipped with a cap on the aluminum side, which protects the internal part of the sleeve from the formation of an oxide film that negatively affects the conductivity of the connection between the sleeve and the cable.
Outer diameter
25.0 мм
Internal diameter 1
15.5
Inner diameter 2
15.5
Depth of cable hole on left side
59.0
Cable hole depth on the right side
35.0
Operating temperature range
-60...+50
Length
107.0 мм
For strain-relieved connections
No
Material
Aluminium/Copper
Min. axial breaking load
6.00
Nominal cross-section of aluminum cores
150 кв.мм
Suitable for aluminium-magnesium cables
No
Application
Other
Voltage range
Up to 1 kV
Reduced rated cross-section - aluminum
Please provide the text you would like me to translate. мм²
Cross-section shape
Stranded round/sector conductor
