Price on request
Order multiple: 25 шт
From our own stock you can buy 20 шт in any quantity. Above that — supply on order, in multiples of 25 шт.
Analogues by specifications
Stock by warehouse

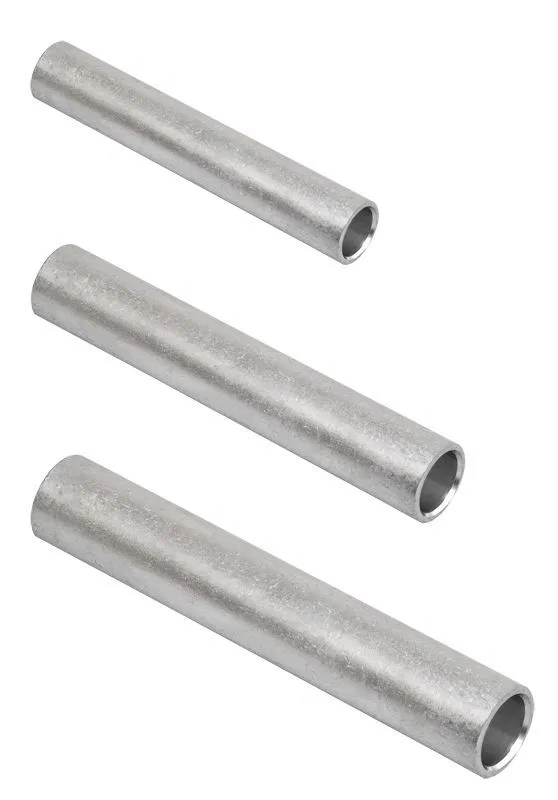

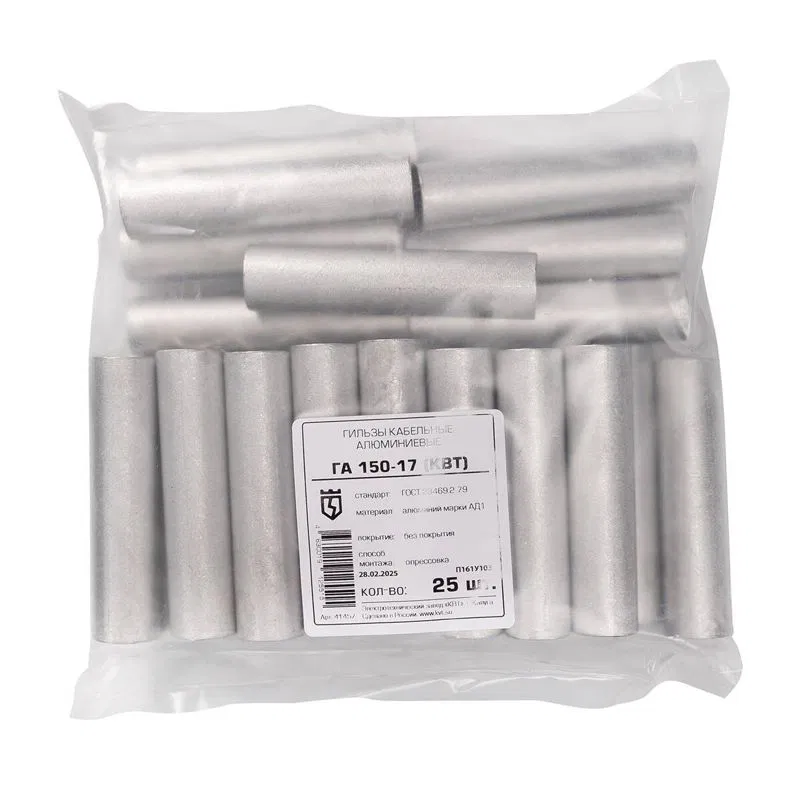

• Designed for crimping aluminum cables and wires without axial load
• Sleeves have a through-hole design
• Material: aluminum grade AD1
• Sector cores are recommended to be rounded using the NM-300 C (KVT) die set
• After cleaning the ends of the aluminum cores using a wire brush, KVT conductive contact paste is applied to the cores. The internal surface of the sleeve should also be cleaned and lubricated with the paste, after which the cores should be inserted halfway into the sleeve and crimped
Length
250 мм
For strain-relieved connections
No
Maximum sheet thickness
1 мм
Material
Aluminum
Nominal cross-section of aluminum cores
150 кв.мм
Suitable for steel-aluminium conductor
Yes
Straight design
No
Voltage range
15 kV
Control
Universal
Cross-section shape
For round stranded/For sector stranded
