IEK

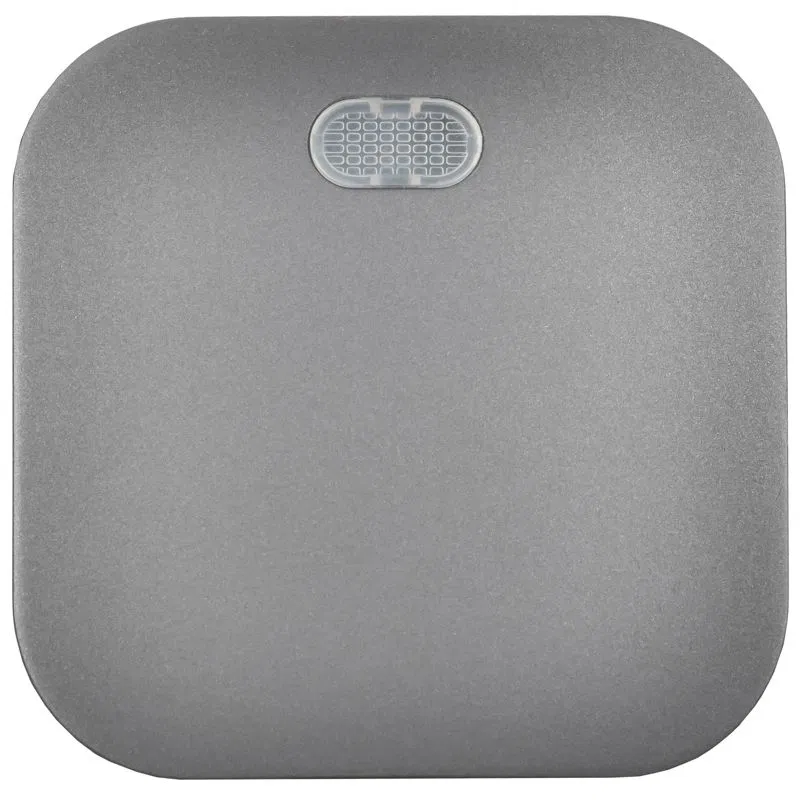

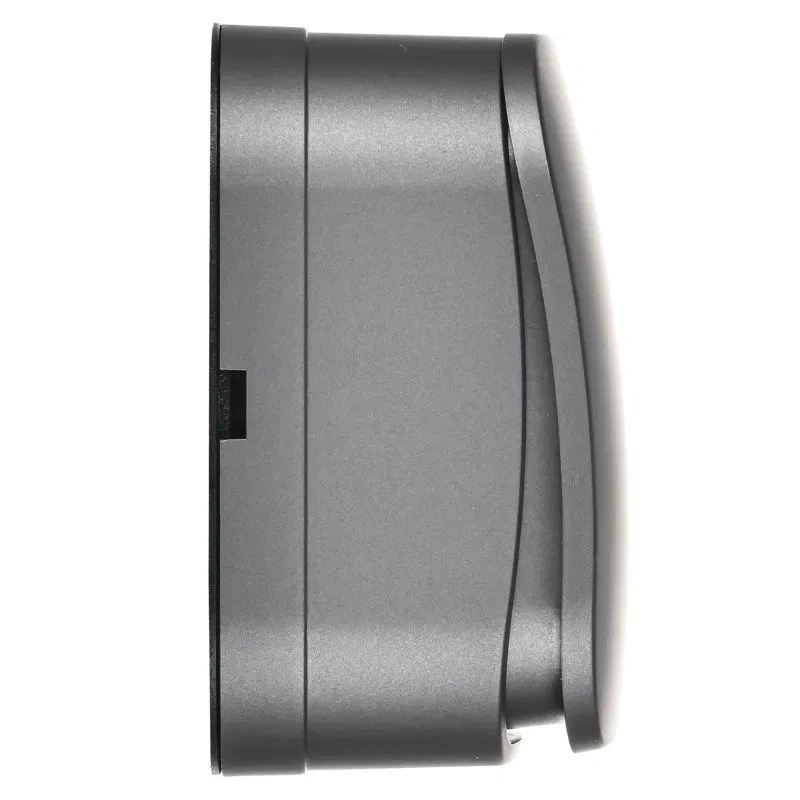

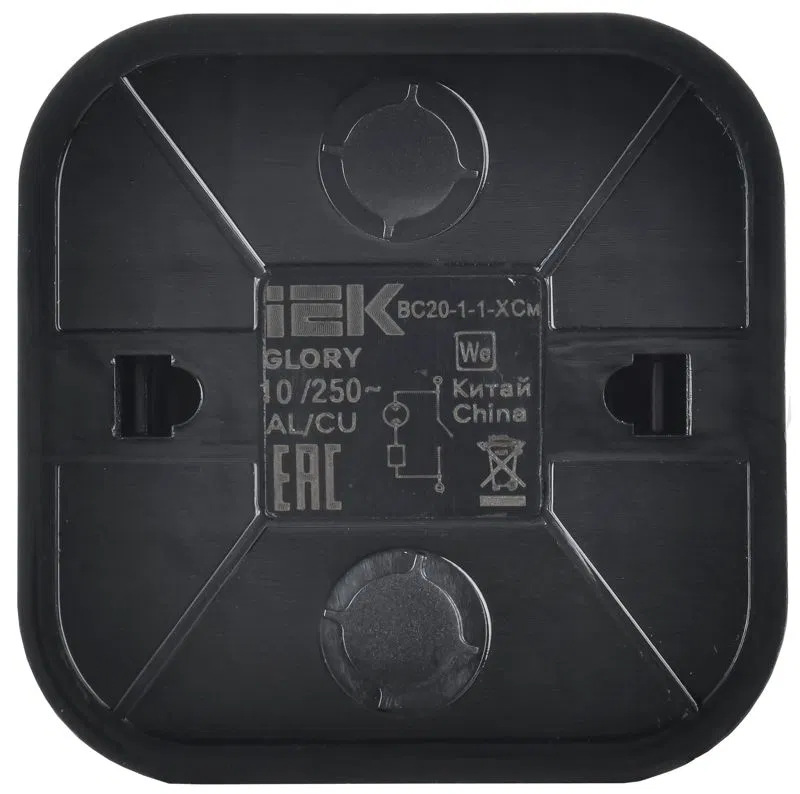

GLORY 1-gang switch for surface mounting with indication 10A ВС20-1-1-ХСм steel matte IEK EVH11-K46M-10
SKU: EVH11-K46M-10
ETIM: EC001590
11,772 ₽
Get back 117 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 36 шт
Analogues by specifications
Stock by warehouse
No description available
Material type/grade
Thermoplastic
Spring-return push
No
Washing machine switch
No
Protective surface coating
Untreated
Number of actuator buttons
1
Number of modules (modular system)
1
Number of poles
1
Maximum conductor cross-section
2.5 mm²
Material
Plastic
Rated voltage
250 V
Rated current
10 A
Labelling surface
No
Backlight
Yes
Suitable for ingress protection IP
IP20
With label field
No
Status signalling contact
No
Mounting method
Surface mounting (exposed installation)
Connection method
Screw terminal
Operating temperature from
-25...40 °C
Switching/control type
Rocker/push-button
Configuration type
Mechanism in housing (assembled)
Fastening type
Screw fixing
Surface type
Matte
Connection diagram type
1-pole switch
Colour
Other
Color
Other
Frequency (Hz)
50 Hz
