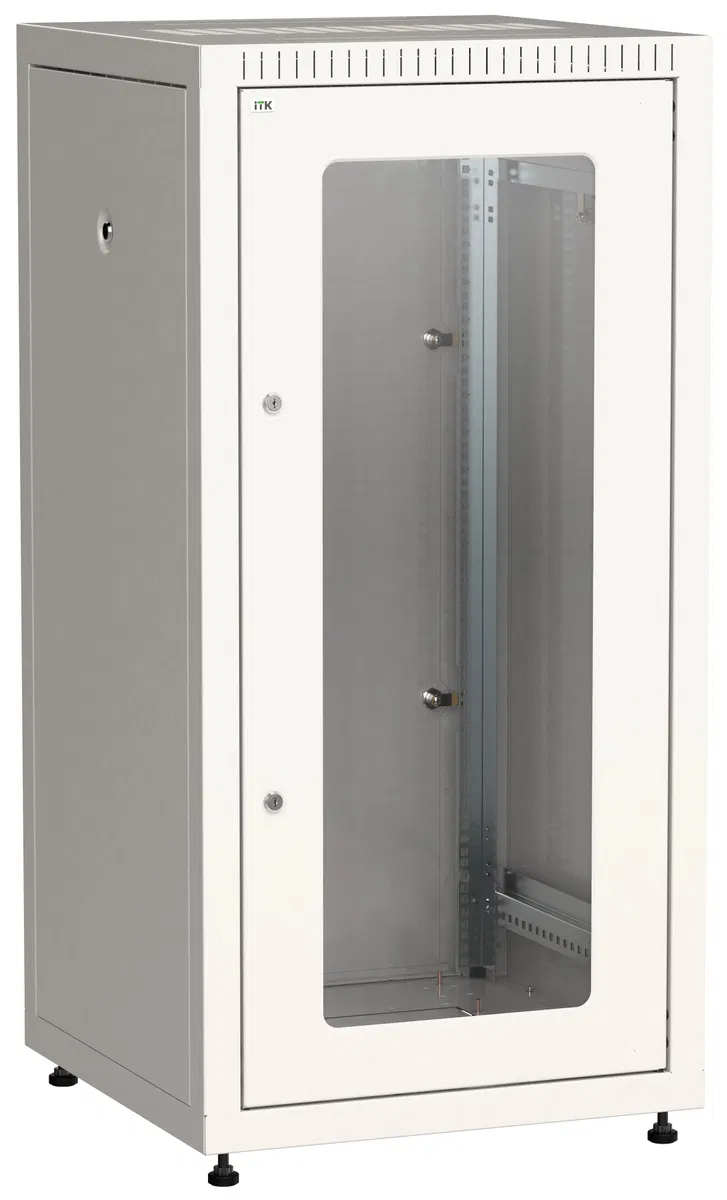

ITK LINEA E Floor-standing network cabinet 19" 24U 600x600mm glass front door metal rear gray LE35-24U66-GM

LINEA E series floor-standing 19" cabinets are designed for housing telecommunications equipment. The cabinets are made in the 482.6 mm series load-bearing structure system according to GOST 28601.2-90. The knock-down design cabinet consists of a base, roof, vertical posts, profiles, and doors. Equipment installation access is possible from four sides through removable side walls, front and rear doors. Doors are easy to remove and lock with point locks. To ensure efficient heat exchange and maintain the required temperature regime, ITK fan panels of the PV series can be installed in the cabinet roof, up to 3 pieces per cabinet (1000mm depth). The roof and base have perforations for installing ITK brush cable entries. Vertical 19" mounting profiles are adjustable in depth with a 20 mm pitch. Adjustable supports (feet) allow for compensating floor unevenness. The cabinet grounding kit allows connecting all cabinet parts into a single grounding loop. Cabinets can be joined together using a connection kit.
