ITK (группа IEK)
ITK U/UTP twisted pair Cat.6 4x2x24AWG PATCH LSZH нг(А)-HF grey (305m) LC2-C604-121
SKU: LC2-C604-121
ETIM: EC003249
5,040 ₽
Get back 50 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 40 м
Analogues by specifications
No description available
Cable outer diameter
6.0±0.2
Wave impedance
100 Ом
Conductor diameter
0.20 мм
Cable length
305 м
For laying in the ground
No
Permissible operating temperature (no movement) to
70 град.C
Permissible operating temperature (without movement) from
-60…70 град.C
NVP value
69 %
Core insulation
Solid polyethylene
Category
6
Conductor class
Class 2 (stranded conductor)
Reaction to fire class in accordance with EN 13501-6
P1b.8.1.2.1
Number of cores
8
Number of twisted elements
4
Max mutual capacitance per 100 metres
5.6
Max. contact resistance
20
Max. capacitance unbalance pF per 100 m
160
Max DC resistance per 100m at 20°C, not more than
9.38
Cable/wire grade
U/UTP
Core marking
Colour
Outer sheath material
Other
Conductor material
Copper
Mounting temperature from
-10...50 град.C
Low smoke emission in accordance with EN 61034-2 (ng-LS version)
Yes
Rated transmission rate
69
Rated voltage from
≤ 48 В
Rated conductor cross-section
0.03 кв.мм
With metal cable
No
Halogen-free (per IEC 60754-2)
Yes
Core cross-section
23 мм
Insulation resistance
5000
Operating temperature from
-60…70 град.C
Twist type
Lay (layer)
UV resistance
No
Outer sheath colour
Grey
Signal frequency
250
Screen over the twist
No
Screen over stranding element
No
Dielectric strength
1000
Twisting element
Paired
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
53 ₽

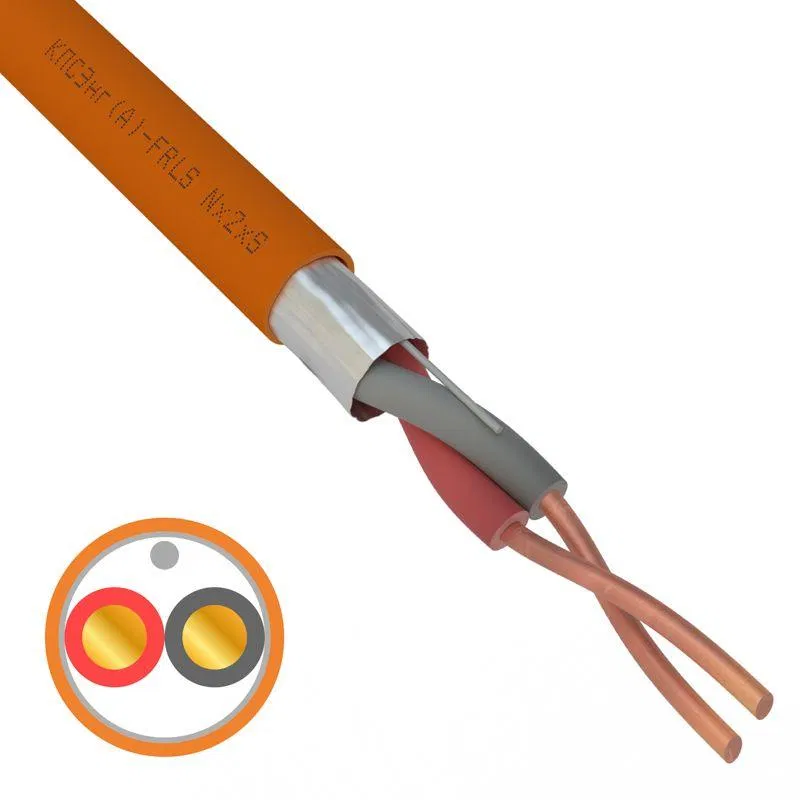

ITK (группа IEK) ITK Fire-resistant Cable KPSEng(A)-FRLS 1x2x0.35 orange (200m) FR1-01-F-3307
