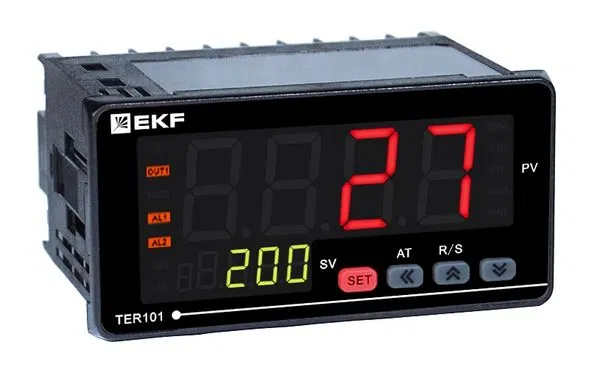

Microprocessor devices designed for monitoring and automatic regulation of technological process parameters. TER101 instruments can be used to measure and regulate various parameters (temperature, pressure, level, humidity, flow, etc.) in heating systems, water supply, furnaces, drying ovens, pasteurizers, thermoforming machines, extruders, refrigeration equipment, and other technological equipment. The devices are universal and can operate in measuring mode, ON/OFF controller mode, and PID controller mode. In controller mode, the device can operate for both heating and cooling of the controlled medium. In PID controller mode, the device has the capability for both manual and automatic adjustment. The device has 1 input for measurement, 1 output for control, and up to 2 alarm outputs. The alarm outputs can also be used as control outputs. The built-in RS-485 interface (Modbus RTU protocol) allows the TER101 to be used in distributed dispatching systems. The devices are installed in a panel and have a housing with increased IP65 dust and water protection.
AC voltage at "Relay" digital output from
0...250 В
DC voltage on digital output "Relay" from
0...30 В
DC voltage at digital output "Transistor" from
0...24 В
DC voltage on digital output "External SSR control" from
0...24 В
With time switch (*)
No
Analogue input 0-1 V
No
Analogue input 0-10 V
Yes
Analogue input 0-2 kOhm
No
Analog input 0-20 mA
No
Analog input 0-300 kΩ
No
Analogue input 0-4 kOhm
No
Analogue input 0-5 kOhm
No
Analogue input 0-5 mA
No
Analogue input 4-20 mA
Yes
Analog input ±1V
No
Analogue input ±50 mV
No
Analog input active resistance 25-2000 Ω
No
Analogue input resistance 25-5000 Ohm
No
Analogue input ohmic resistance 25-900 Ohm
No
Analog input, thermocouple tP.tL
No
Analogue output 0(4)-20 mA
No
Analogue output 0-10 V
No
Weight
0.4 кг
Height
96 мм
Height
96 мм
Built-in power supply output voltage
24 В
Depth
73 мм
Group control
No
Display design
LED
Accuracy class
0.5 %
Number of HW USB interfaces
0
Number of HW serial RS-485 interfaces
1
Number of analog inputs
1 шт.
Number of analogue outputs
0 шт.
Number of 0(4)-20 mA analogue outputs
0
Number of 0-10V analog outputs
0
Number of digital inputs
0 шт.
Number of digital outputs
4 шт.
Number of digital outputs "Relay"
3
Number of "Triac" digital outputs
0
Number of digital outputs "Transistor"
1
Number of digital outputs "External SSR control"
1
Communication bus
RS-485
Tap water monitoring
No
Air handling system control
No
Maximum power consumption
10 Вт
Can be connected
Yes
DIN rail mounting
No
Air heater
No
Supply voltage
230 В
AC supply voltage 50 Hz to
240 В
AC supply voltage 50Hz from
100...240 В
DC supply voltage to
240 В
DC supply voltage from
100...240 В
Wall mounting
No
Independently acting
Yes
Air cooler
No
OWEN protocol support
No
Air heater
No
Standby power consumption
10 Вт
Communication protocol
Modbus
Operating temperature
50 град.C
Operating temperature from
-20...+50 град.C
Air curtain control
No
With external sensor
Yes
With feed sensor
No
With display
Yes
With room sensor
No
With PC connection
Yes
With negative temperature coefficient resistor
No
With positive temperature coefficient resistor
No
With timer
No
Ingress protection (IP value)
65
IP protection rating
IP65
Resistance thermometer 1000H
No
1000M resistance thermometer
No
1000P resistance thermometer
No
Resistance thermometer 100H
No
Resistance thermometer 100M
No
Resistance thermometer 100P
No
500H resistance thermometer
No
Resistance thermometer 500M
No
500P resistance thermometer
No
50M resistance thermometer
No
50P resistance thermometer
No
Resistance thermometer Cu100
No
Cu1000 resistance thermometer
No
Cu50 resistance thermometer
No
Resistance thermometer Cu500
No
Ni100 resistance thermometer
No
Ni1000 resistance thermometer
No
Ni500 resistance thermometer
No
Pt100 resistance thermometer
No
Resistance thermometer Pt1000
No
Pt50 resistance thermometer
No
Pt500 resistance thermometer
No
TSM gr.23 resistance thermometer
No
Thermocouple type TVR (A-1)
No
Thermocouple type TVR (A-2)
No
Thermocouple type TVR (A-3)
No
Type B thermocouple
No
Thermocouple type J
No
Thermocouple type K
No
Thermocouple type L
No
Thermocouple type n
No
Thermocouple type r
No
Thermocouple type S
No
Type T thermocouple
No
Temperature controller type
III
Current at "Relay" digital output from
0...3 А
Current at digital output "Transistor" from
0...0.1 А
Digital output current "External SSR control" with
0...0.03 А
Air humidifier
No
Extractor fan control
No (without)
Exhaust fan control - yes, no
No
Boiler/water heater control
No
Swimming pool control
No
Split unit control
No
Heat pump control
No
Control of boiler/water heater heat exchange valve
No
Digital input "220V"
No
Digital input "24V"
No
Digital input "NPN"
No
Digital input "PNP"
No
Digital input "SK"
No
Conductometric digital input
No
Digital output "Relay"
Yes
Digital output "Triac"
No
Digital output "Transistor"
Yes
Digital output "External SSR control"
Yes
Real-time clock (RTC)
No
Width
96 мм
