254 ₽
Get back 2 ₽ in points
Analogues by specifications
Stock by warehouse

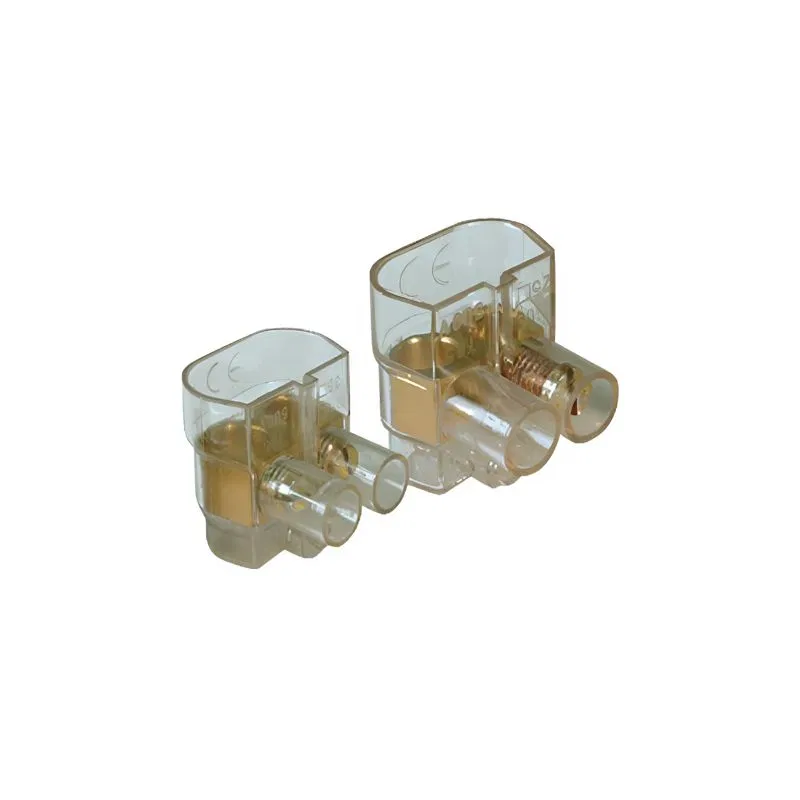

Screw terminal is designed for electrical connection of conductors in circuits up to 400 V. It is used in junction boxes for connecting sockets, switches, chandeliers, and lighting fixtures. Maximum conductor cross-section is 10 mm2. Strong galvanized steel screws are protected against thread stripping. Insulation material is self-extinguishing polycarbonate with thermal stability up to +130 °C.
Version tested for explosion protection "Ex e"
No
Minimum possible mounting height
21 мм
Length
19.7 мм
Length
19.7 мм
Flammability class of insulation material in accordance with UL57
EV004429
Number of terminals per pole
2
Number of poles
1
Housing insulation material
Polycarbonate (PC)
Rated voltage
500 В
Rated current In
80 А
Closing plate can be fitted if required
No
Transparent
Yes
Operating temperature
85 град.C
Operating temperature from
-5 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
10 кв.мм
Stranded flexible conductor cross-section from
1 кв.мм
Solid conductor cross-section to
16 кв.мм
Solid conductor cross-section from
6 кв.мм
Mounting method
EV000154
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Colour
Other
Color
EV000154
Width/connection pitch
22.2 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
553 ₽

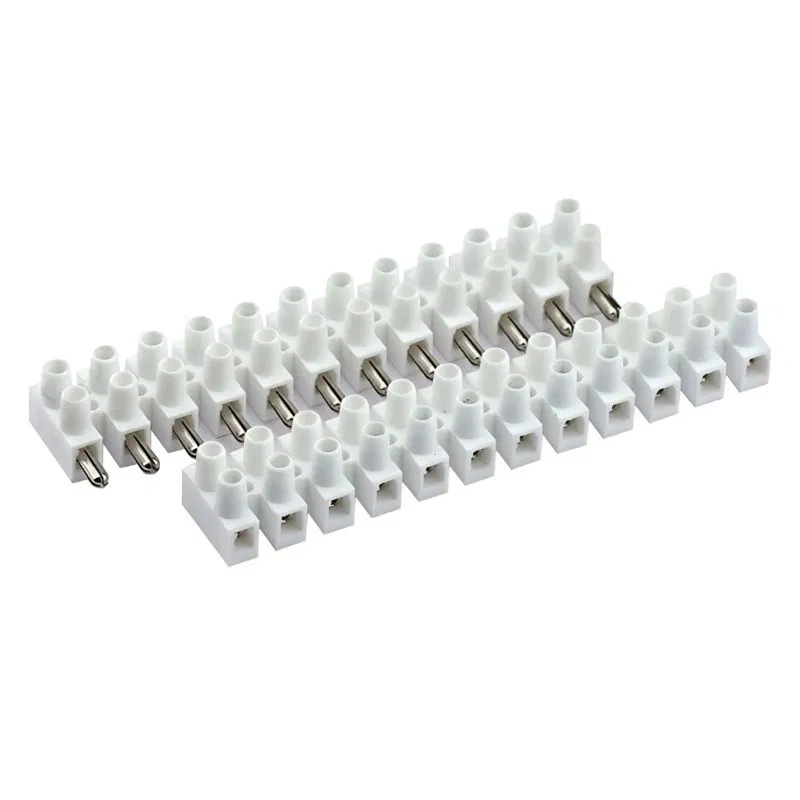

EKF Terminal block TK-020 up to 2.5mm2 20A 10 terminal pairs EKF tk-020
