Live cable cutting kit NGPI-85 PROFI series 61843 kW

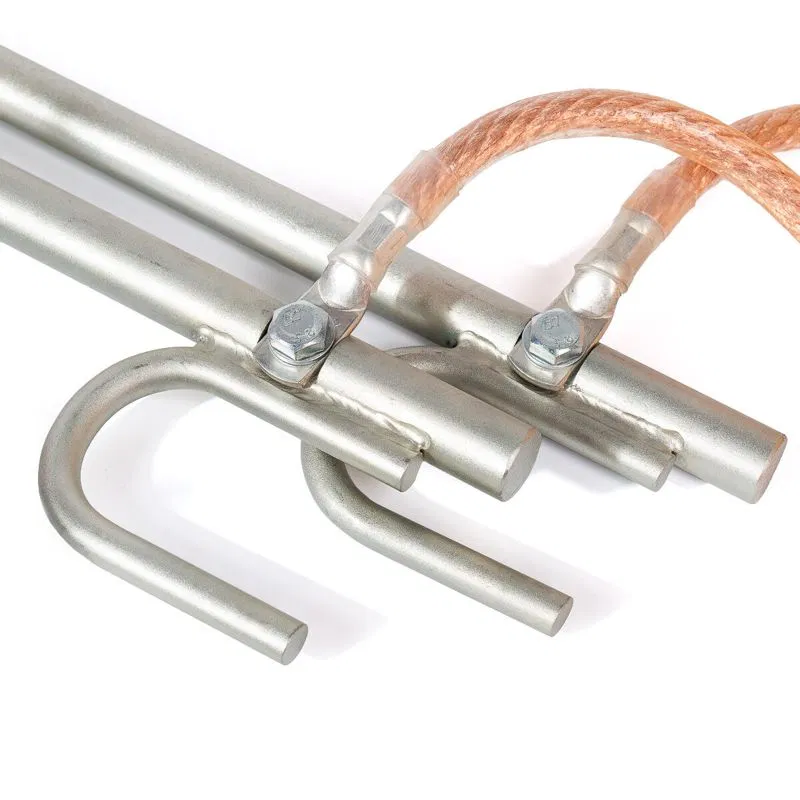

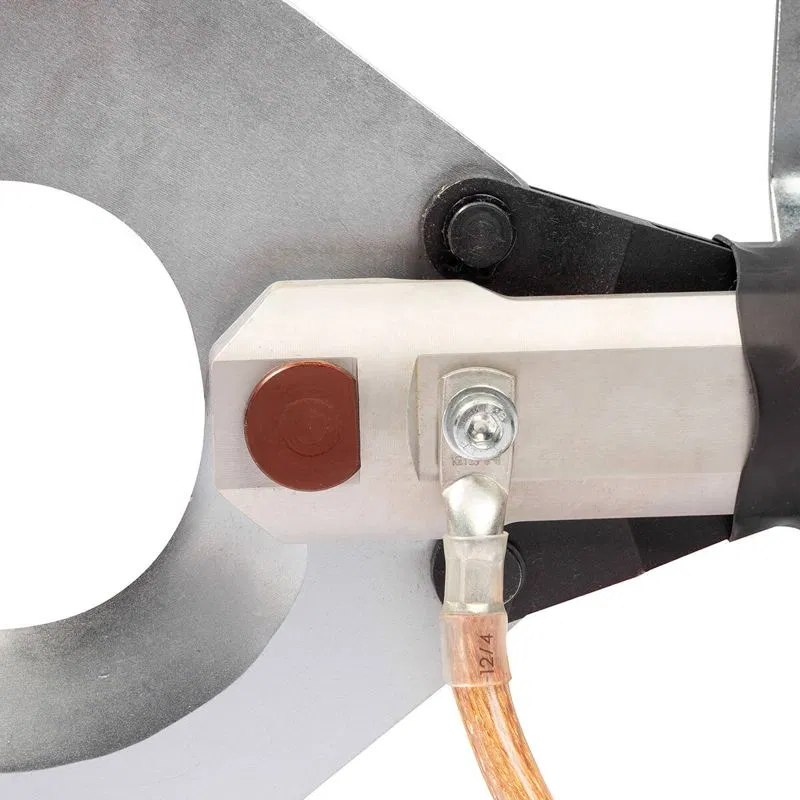

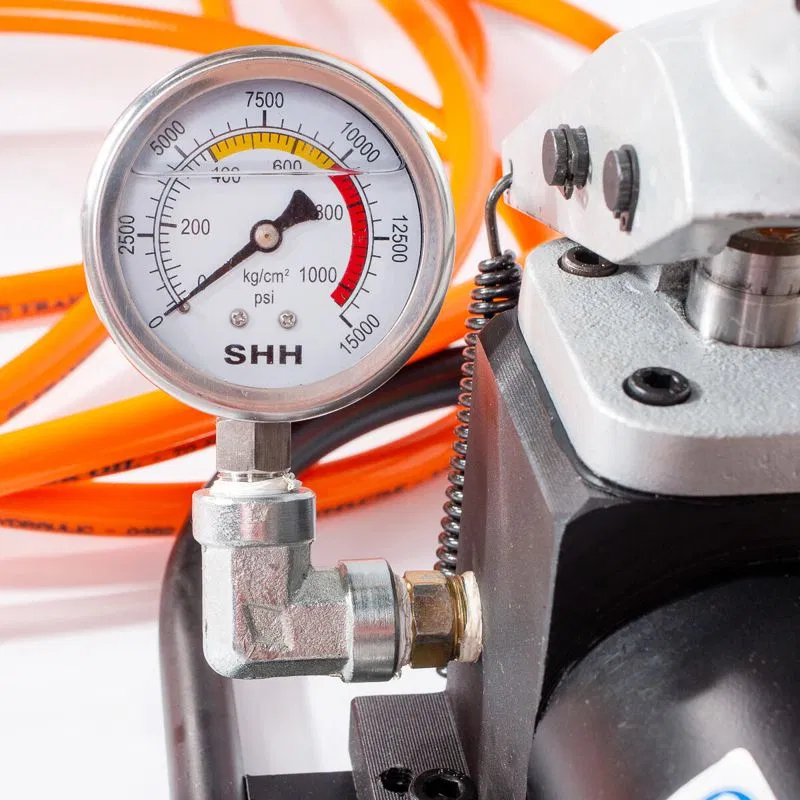

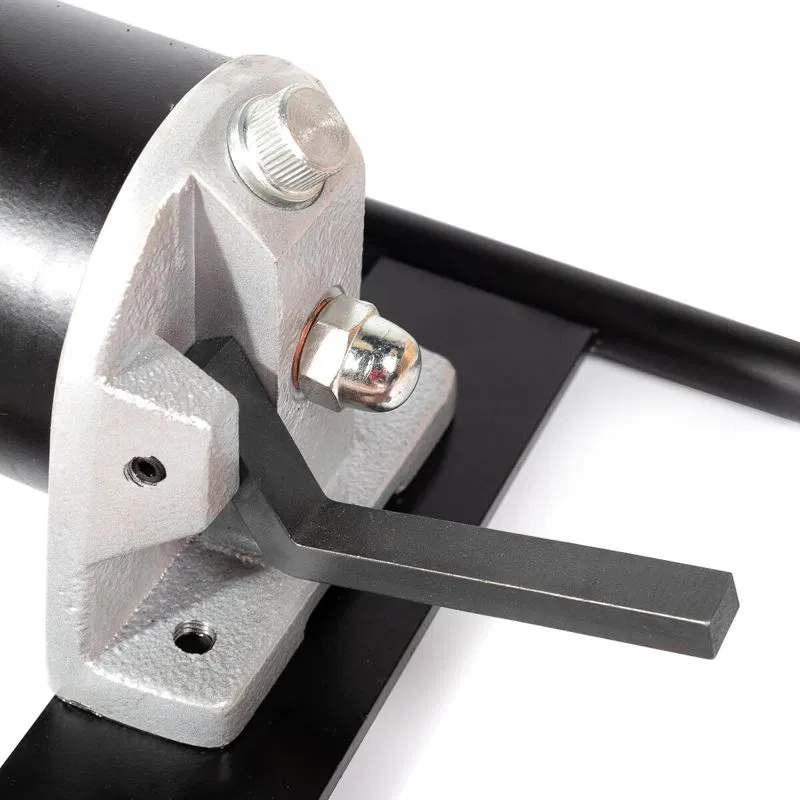

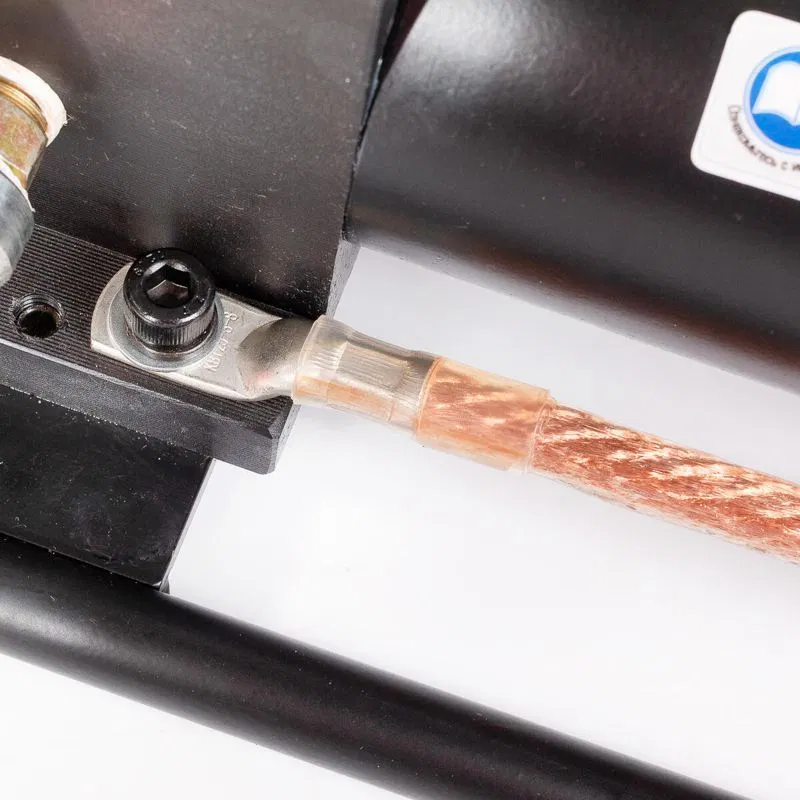

• cutting diameter 85 mm • For operation under voltage up to 35 kV • Kit contents: • NGO-85 shears • PMN-7012 foot-operated hydraulic pump with built-in pressure gauge • insulated high-pressure hose, 10 m • grounding kit for the cutting head: (1 m grounding wire with pin) • grounding kit for the pump: (3 m grounding wire with pin) • heavy-duty steel case • Increased length of the insulating hose allows the operator to remain at a safe distance from the cutting site • Open type shears with a stand-handle • Foot-operated pressure release lever and built-in pressure gauge ensure full control of the pump during operation • Maximum pressure: 700 bar • Special oil composition with specified insulating properties • The grounding wire used in NGPI kits has thick transparent silicone insulation • Increased pump oil tank capacity: 1.2 l • The pump is filled with special dielectric oil. If oil replacement or topping up is required, contact the "KVT" service center • Case dimensions: 760x270x250 mm • Force: 6.5 t • Kit weight: 36 kg
