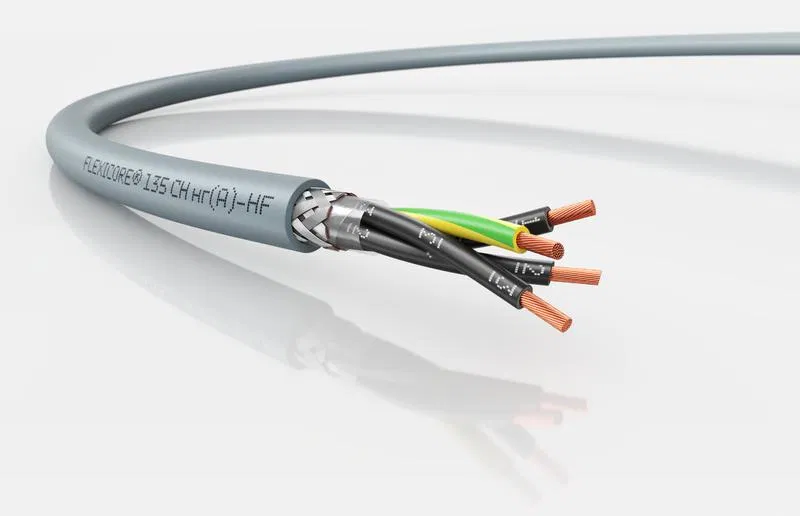

FLEX-CY-JZ cable is used as installation, measuring, control, and management cable for connecting machines and other mechanisms, in production equipment and on assembly lines. This type of cable is suitable for fixed or mobile installation with unlimited mobility without tensile stress. Installation can be carried out in dry and wet rooms. Outdoor installation without additional UV protection is not permitted. This cable with copper screen is ideal for interference-resistant data and signal transmission in measurement and control systems. Good chemical resistance, high oil resistance.
Permissible operating temperature (no movement) to
80 град.C
Permissible operating temperature (without movement) from
-40 град.C
Protective grounding conductor
Yes
Core insulation
Polyvinyl chloride (PVC)
Conductor class
5 - flexible stranded
Number of cores
5
Core marking
Digits
Oil resistance in accordance with EN 60811-2-1
Yes
Outer sheath material
Polyvinyl chloride (PVC)
Outer diameter (approx.)
10.5 мм
Low smoke emission in accordance with EN 61034-2 (ng-LS version)
Yes
Rated voltage U
300 кВ
Rated conductor cross-section
1.5 кв.мм
Fire resistance
In accordance with EN 60332-3-22
Recommended installation temperature during pulling, up to
70 град.C
Recommended installation temperature during pulling from
-15 град.C
Low temperature resistance in accordance with EN 60811-1-4
No
Outer sheath colour
Grey
