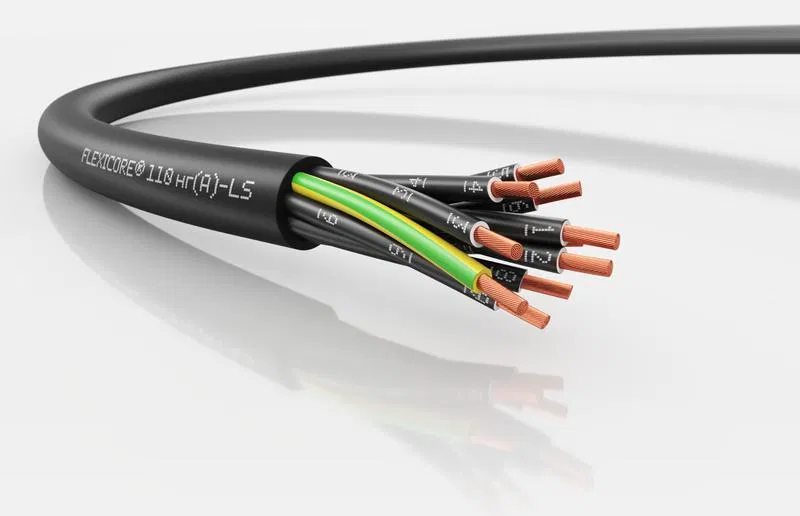

Flexicore (LAPP)

FLEXICORE 110 11G1.0 (m) LAPP 3120000831

SKU: 3120000831 ETIM: EC000104

521 ₽

Get back 5 ₽ in points

Description Specifications Reviews

Permissible operating temperature (no movement) to 80 град.C

Permissible operating temperature (without movement) from -60 град.C

Protective grounding conductor Yes

Core insulation Polyvinyl chloride (PVC)

Conductor class 5 - flexible stranded

Number of cores 11

Core marking Digits

Oil resistance in accordance with EN 60811-2-1 Yes

Outer sheath material Polyvinyl chloride (PVC)

Outer diameter (approx.) 11.4 мм

Low smoke emission in accordance with EN 61034-2 (ng-LS version) No

Rated voltage U 300 кВ

Rated conductor cross-section 1 кв.мм

Fire resistance In accordance with IEC 600332-1-2

Recommended installation temperature during pulling, up to 70 град.C

Recommended installation temperature during pulling from -20 град.C

Low temperature resistance in accordance with EN 60811-1-4 Yes

Outer sheath colour Grey
