40 ₽
Get back 1% in points
Analogues by specifications
Stock by warehouse
No description available
Armoured
No
Conductor diameter
.98 мм
For laying in the ground
No
Permissible operating temperature (no movement) to
70 град.C
Permissible operating temperature (without movement) from
-40 град.C
Core insulation
Rubber
Insulation per GOST R IEC 60331
Yes
Category
No (without)
Conductor class
1 - single-wire
Number of cores
2
Number of twisted elements
1
Cable/wire grade
KPSng(A)-FRLS
Core marking
Digits
Oil-resistant
No
Oil-resistant (in accordance with IEC 60811-404)
No
Outer sheath material
Polyvinyl chloride (PVC)
Conductor material
Copper
Outer diameter (approx.)
6.6 мм
Low smoke emission in accordance with EN 61034-2 (ng-LS version)
Yes
Rated conductor cross-section
.75 кв.мм
Fire resistance
In accordance with IEC 60332-3-22
Main insulation
Rubber (silicone)
Longitudinal water blocking
No
Radial water blocking
No
Recommended installation temperature during pulling, up to
60 град.C
Recommended installation temperature during pulling from
-10 град.C
With low smoke emission in accordance with IEC 61034-2
Yes
Halogen-free (per EN 60754-1/2)
No
Halogen-free (per IEC 60754-2)
No
Twist type
Bundled
UV resistance
No
Outer sheath colour
Orange
Screen over the twist
No (without)
Screen over stranding element
No (without)
Twisting element
Paired
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
90 ₽

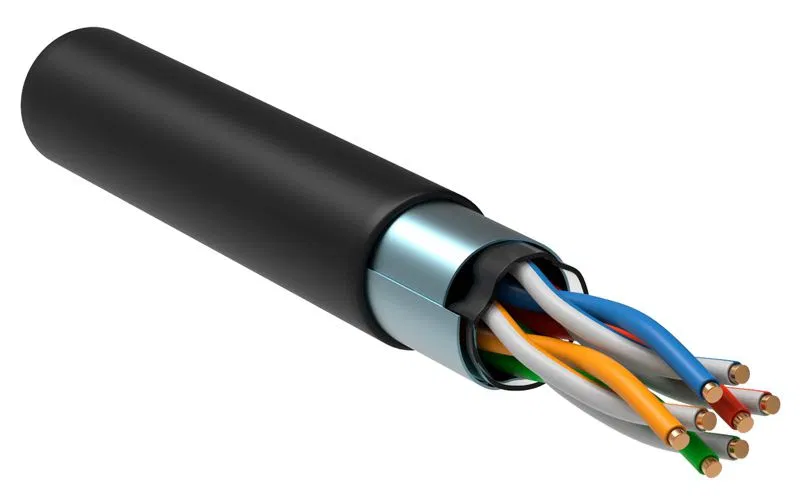

Rexant Twisted pair cable F/UTP Cat.5e 4x2x24AWG PVC INDOOR copper stranded grey (305m) Rexant 01-0145
