82 ₽
Analogues by specifications

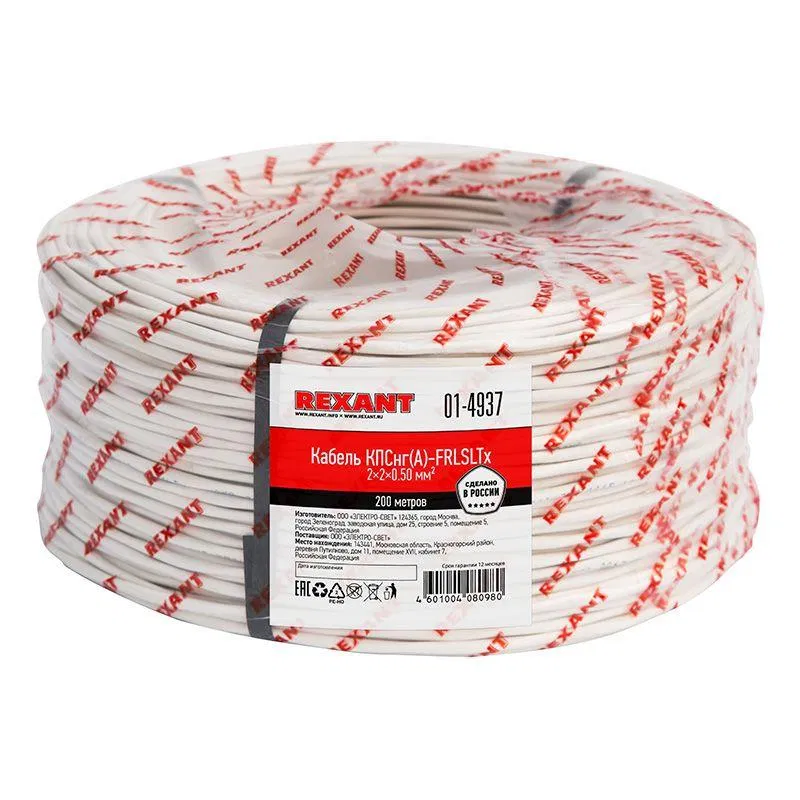

Cable KPSng(A)-FRLSLTx 2x2x0.50 mm2 is a fire-resistant symmetrical twisted pair cable that does not propagate fire during group installation and has low smoke and gas emission. It is halogen-free. It maintains functionality in fire conditions for 180 minutes. Manufactured according to TU 27.32.13-001-27284528-2018.
Used in the organization of fire protection systems, smoke protection systems, fire alarm systems (FAS), evacuation warning and management systems (EWS), as well as in the organization of automatic fire extinguishing systems (AFES).
Cable is used in all critical life support systems that must remain operational in fire conditions.
Cable consists of a single-strand copper conductor, insulation made of fire-resistant ceramizing silicone rubber, a drainage copper conductor, and a PVC jacket with reduced fire hazard, low smoke and gas emission, and low toxicity. Thanks to 100% annealing of the copper cores, the cable becomes softer, which simplifies the installation process and increases service life.
The use of KPSng(A)-FRLSLTx cable is regulated by the Customs Union certificate of conformity (EAC).
Cable marking: KPSng(A)-FRLSLTx Nx2xS, where N is the number of pairs and S is the cross-section of the current-carrying conductors.
Armoured
No
Conductor diameter
It appears your message contains only ".8". Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. мм
For laying in the ground
No
Permissible operating temperature (no movement) to
70 град.C
Permissible operating temperature (without movement) from
-40 град.C
Core insulation
Rubber
Insulation per GOST R IEC 60331
Yes
Category
No (without)
Conductor class
1 - single-wire
Number of cores
4
Number of twisted elements
2
Core marking
Digits
Oil-resistant
No
Oil-resistant (in accordance with IEC 60811-404)
No
Outer sheath material
Polyvinyl chloride (PVC)
Conductor material
Copper
Outer diameter (approx.)
6.9 мм
Low smoke emission in accordance with EN 61034-2 (ng-LS version)
Yes
Rated conductor cross-section
It appears your message contains only ".5". Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. кв.мм
Fire resistance
In accordance with IEC 60332-3-22
Main insulation
Rubber (silicone)
Longitudinal water blocking
No
Radial water blocking
No
Recommended installation temperature during pulling, up to
60 град.C
Recommended installation temperature during pulling from
-10 град.C
With low smoke emission in accordance with IEC 61034-2
Yes
Halogen-free (per EN 60754-1/2)
No
Halogen-free (per IEC 60754-2)
No
Twist type
Bundled
UV resistance
No
Outer sheath colour
White
Screen over the twist
No (without)
Screen over stranding element
No (without)
Twisting element
Paired
