49 ₽
Analogues by specifications
The cable is used indoors and outdoors, provided it is protected from direct sunlight, atmospheric precipitation, and other external factors. It can be installed in explosion-prone areas of any class. Manufactured according to TU 27.32.13-006-39644825-2020.
When installed singly, KSVV ng(A)LS brand cables do not propagate combustion according to GOST 31565-2012.
8 single-wire conducting cores with a diameter of 0.5 mm are made of copper and subjected to 100% annealing, which makes the cable softer, simplifying the installation process and increasing service life. Cores are insulated with polyvinyl chloride plastic.
A polyvinyl chloride plastic sheath is applied on top, which has reduced fire hazard and low smoke and gas emission.
Installation temperature: –10…+50 °C.
Armoured
No
Conductor diameter
It appears your message contains only ".5". Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. мм
For laying in the ground
No
Permissible operating temperature (no movement) to
60 град.C
Permissible operating temperature (without movement) from
-40 град.C
Core insulation
Polyvinyl chloride (PVC)
Insulation per GOST R IEC 60331
Yes
Category
No (without)
Conductor class
1 - single-wire
Number of cores
8
Cable/wire grade
KSVVng(A)-LS
Core marking
Digits
Oil-resistant
No
Oil-resistant (in accordance with IEC 60811-404)
No
Outer sheath material
Polyvinyl chloride (PVC)
Conductor material
Copper
Outer diameter (approx.)
3.5 мм
Low smoke emission in accordance with EN 61034-2 (ng-LS version)
Yes
Rated conductor cross-section
Please provide the text you would like me to translate. кв.мм
Fire resistance
In accordance with IEC 60332-3-22
Longitudinal water blocking
No
Radial water blocking
No
Recommended installation temperature during pulling, up to
60 град.C
Recommended installation temperature during pulling from
-10 град.C
With low smoke emission in accordance with IEC 61034-2
Yes
Halogen-free (per EN 60754-1/2)
No
Halogen-free (per IEC 60754-2)
No
Twist type
Bundled
UV resistance
No
Outer sheath colour
Red
Screen over the twist
No (without)
Screen over stranding element
No (without)
Twisting element
No
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
1060 ₽
ТПД Паритет ParBus Profibus 150 ARM PS ZH Мнг(А)-HF 1х2х0.64 (m) Paritet 111486 TPD Paritet
SKU: 111486
64 ₽
TOKOV ELECTRIC Twisted Pair Cable U/UTP 4x2x24AWG(0.51 mm) Cat.5E ng(A)-HF (LSZH) indoor Fluke tested 305 m (m) PRO TOKOV ELECTRIC TKP-C06-U42-5E-305-LSZH
SKU: TKP-C06-U42-5E-305-LSZH
Price on request

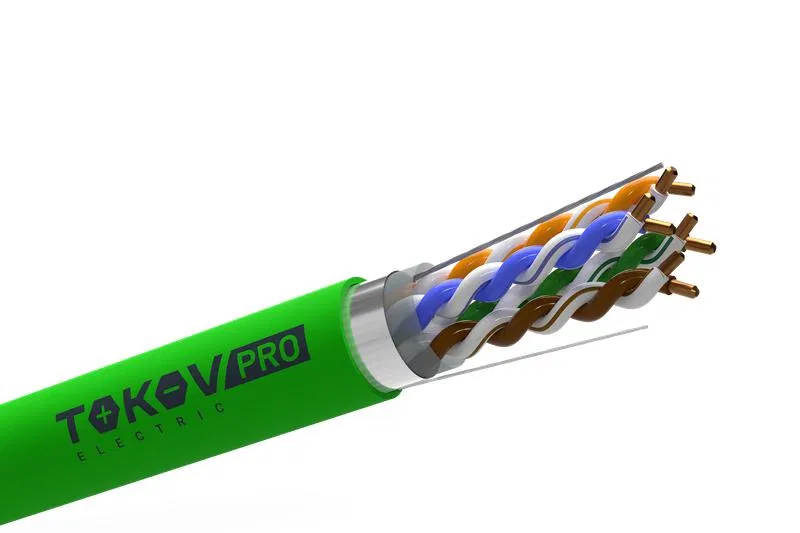

TOKOV ELECTRIC Twisted pair cable F/UTP 4x2x24AWG(0.48mm) cat.5E PVCLS ng(A)-LSLTx indoor Fluke tested 305m (m) TOKOV ELECTRIC TKE-C11-F42-5E-RU-LSLTx
