Cable TOKOV ELECTRIC VBShvng(A)-LS 4x240 MS (N) 1kV (m) 000015989 TOKOV ELECTRIC KPP
SKU: 000015989
ETIM: EC000057
Price on request
Analogues by specifications
Stock by warehouse

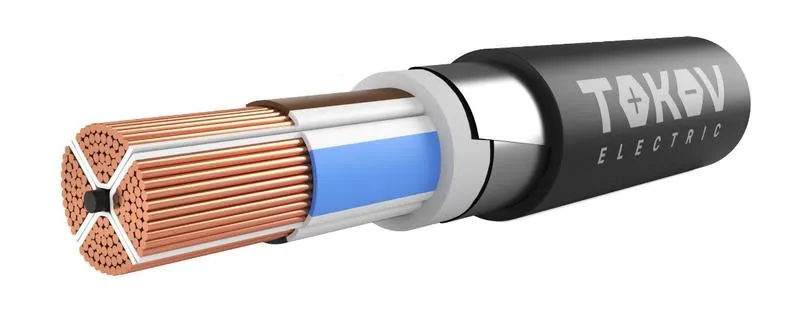

Power cable in climatic execution UKHL with four copper multi-strand sector-shaped cores with a nominal cross-section of 240 sq.mm with a neutral core, for nominal voltage 1 kV, with insulation and sheath made of polyvinyl chloride plastic of reduced fire hazard, with armor made of galvanized steel tapes. Does not propagate fire during group installation according to category A, with low smoke and gas emission.
Armoured
Yes
Permissible operating temperature (no movement) to
50 град.C
Permissible operating temperature (without movement) from
-50 град.C
Protective grounding conductor
Yes
Core insulation
Polyvinyl chloride (PVC)
Conductor class
2 - stranded
Number of cores
4
Maximum permissible conductor temperature
70 град.C
Cable/wire grade
VBShvng-LS
Outer sheath material
Polyvinyl chloride (PVC)
Conductor material
Copper
Display present
No
Outer diameter (approx.)
60.31 мм
Low smoke emission in accordance with EN 61034-2 (ng-LS version)
Yes
Rated voltage U
1 кВ
Rated conductor cross-section
240 кв.мм
Fire resistance
No
Recommended installation temperature during pulling, up to
-15 град.C
Recommended installation temperature during pulling from
-15 град.C
Lead sheath
No
Conductor strand shape
Sector-shaped
Outer sheath colour
Black
