Rexant
Twisted pair cable F/UTP cat.5e 4x2x24AWG LSZH ng(A)-HF INDOOR SOLID orange (m) Rexant 01-0150
SKU: 01-0150
ETIM: EC003249
24,559 ₽
Get back 245 ₽ in points
Order multiple: 305 м
Analogues by specifications
Stock by warehouse

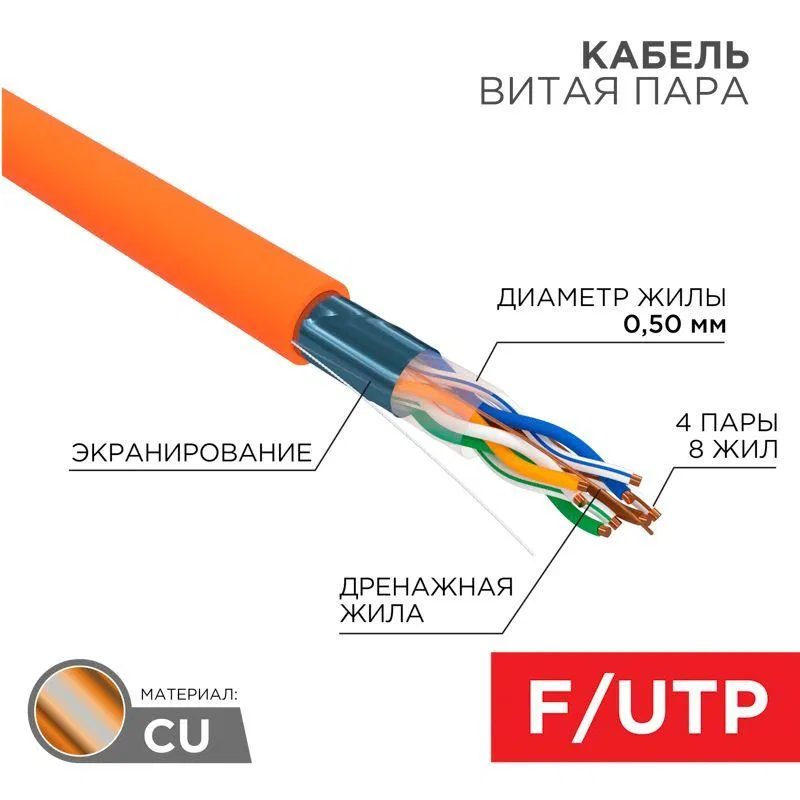

Orange twisted pair cable is intended for creating local area networks, computer networks, connecting security system devices, telephony, internet, surveillance cameras, security and access control systems, etc. Used for indoor installation. Characterized by rigidity. Belongs to category 5e.
Electromagnetic radiation from electrical appliances and power cables does not affect signal quality thanks to aluminum foil shielding.
The central conductor of the cable is made of high-purity oxygen-free copper and is covered with HDPE insulation. The outer insulation is made of a halogen-free compound, 0.5 mm thick.
Due to enhanced interaction between each pair of conductors, the user has access to a high level of data transmission efficiency.
Technical description:
Cable has 8 (eight) cores, four pairs (4PR)
Conductor material: high-purity oxygen-free copper, gauge (24 AWG)
Conductor insulation: high-density polyethylene (HDPE), diameter 1.02 mm
Shielding, FTP: in the shield (aluminum foil)
Outer insulation: HF, thickness 0.5 mm
Overall cable diameter: 6.2 mm
Minimum cable bending radius: 8 (eight) times the outer diameter of the cable
Frequency range: 1-100 MHz
Operating temperature: –60...+60 °C, cable laying and installation must be carried out at a temperature no lower than –10 °C

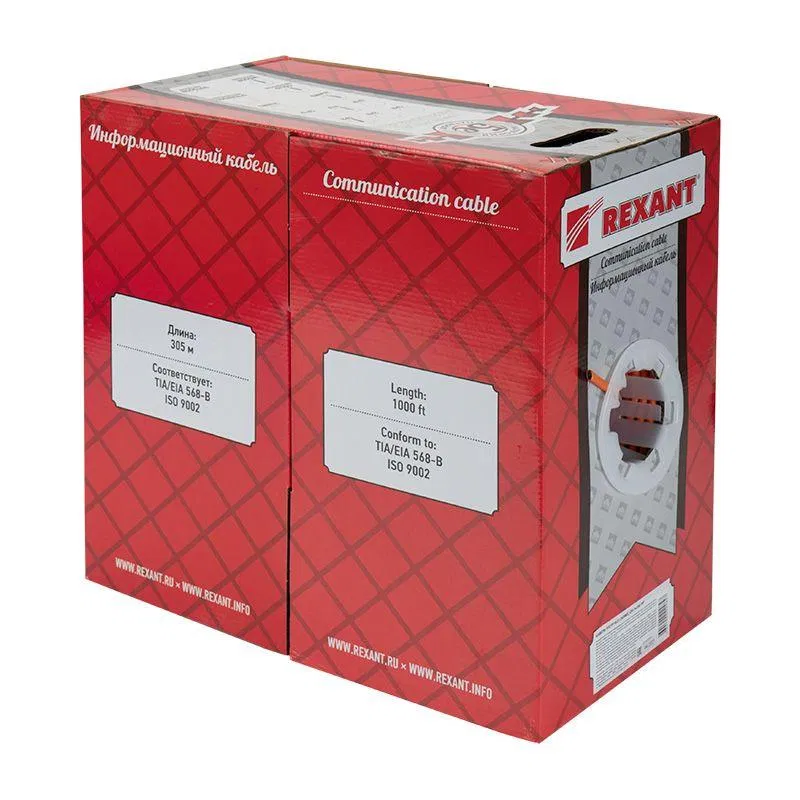

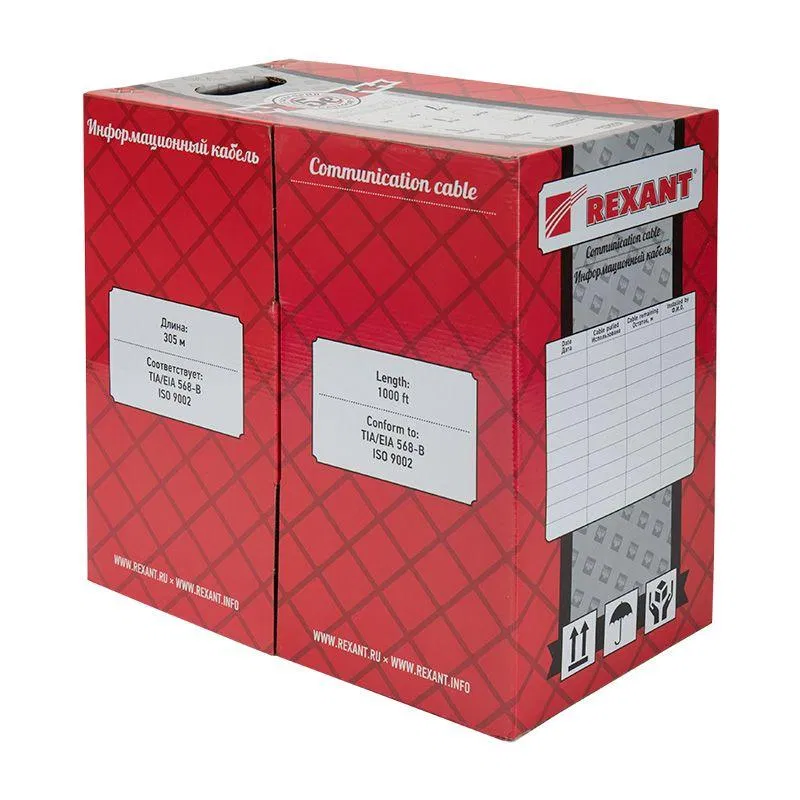

Packaging: 305 m coil in a box, one coil per box
Service life: 25 years
Armoured
No
Conductor diameter
It appears your message contains only ".5". Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. мм
For laying in the ground
No
Permissible operating temperature (no movement) to
60 град.C
Permissible operating temperature (without movement) from
-40 град.C
NVP value
.69 %
Core insulation
Polyethylene (PE)
Insulation per GOST R IEC 60331
No
Category
5E
Conductor class
1 - single-wire
Number of cores
8
Number of twisted elements
4
Cable/wire grade
F/UTP
Core marking
Colour
Oil-resistant
No
Oil-resistant (in accordance with IEC 60811-404)
No
Outer sheath material
Polyethylene (PE)
Conductor material
Copper
Outer diameter (approx.)
6.2 мм
Low smoke emission in accordance with EN 61034-2 (ng-LS version)
Yes
Rated conductor cross-section
Please provide the text you would like me to translate. кв.мм
Main insulation
Polyethylene (PE)
Longitudinal water blocking
No
Radial water blocking
No
Recommended installation temperature during pulling, up to
40 град.C
Recommended installation temperature during pulling from
-10 град.C
With low smoke emission in accordance with IEC 61034-2
Yes
Halogen-free (per EN 60754-1/2)
Yes
Halogen-free (per IEC 60754-2)
Yes
Core cross-section
Please provide the text you would like me to translate. You only provided ".13", which does not contain meaningful text for translation. мм
UV resistance
No
Outer sheath colour
Orange
Screen over the twist
Foil
Screen over stranding element
Foil
Twisting element
Paired
