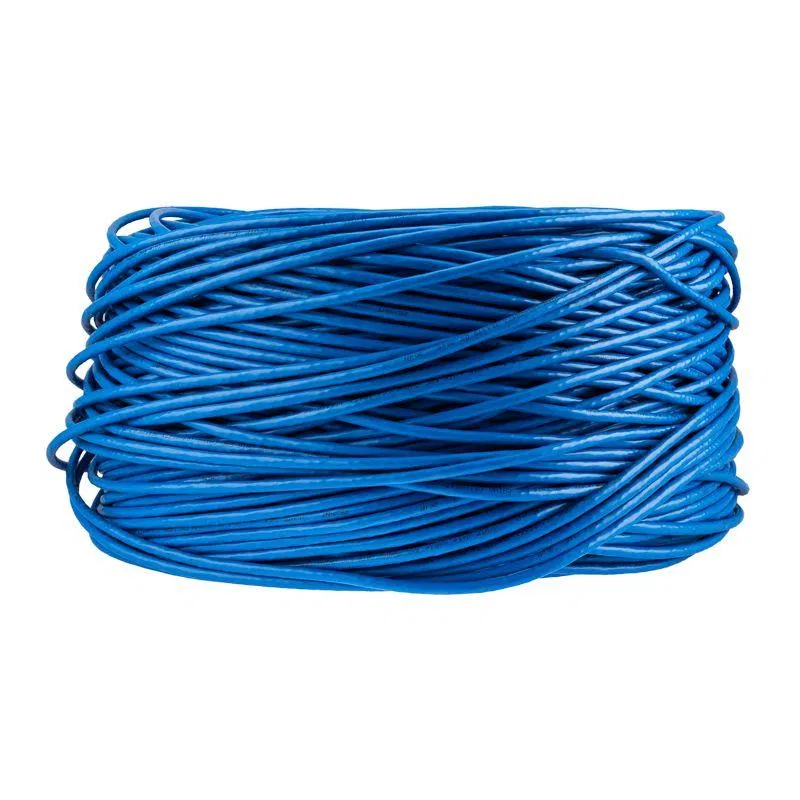

Twisted pair cable U/UTP Cat.6 4x2x23AWG solid CU PVC blue (m) Rexant 01-0047

REXANT blue U/UTP twisted pair cable is used in Gigabit Ethernet and Fast Ethernet networks. It is used for creating local area networks, computer networks, connecting security system devices, telephony, internet, surveillance cameras, etc. It is intended for indoor installation. Category 6: operates at a frequency of 250 MHz, achieving high data transfer speeds. It is capable of supporting speeds up to 10 Gbps at distances up to 50 m. Central conductor material – highly purified oxygen-free copper. Conductor insulation – high-density polyethylene (HDPE). Outer insulation is made of PVC. Due to its flexible shape, the cable is easy to lay in hard-to-reach places without forming kinks at the bend points. Technical description: The cable has 8 (eight cores), four pairs (4PR) Conductor material: highly purified oxygen-free copper, 23AWG Conductor insulation: high-density polyethylene (HDPE), 1.07 mm diameter UTP shielding: unshielded Outer insulation: PVC — polyvinyl chloride (PVC), 0.5 mm thickness Total cable diameter: 6.5 mm Minimum bending radius is 8 (eight) outer cable diameters Frequency range: 1-250 MHz Operating temperature: –40...+60 °C, cable laying and installation must be performed at a temperature no lower than –10 °C Packaging: 305 m coil / two coils in a box Service life: 25 years
