31 ₽
Get back 1% in points
Analogues by specifications
Stock by warehouse

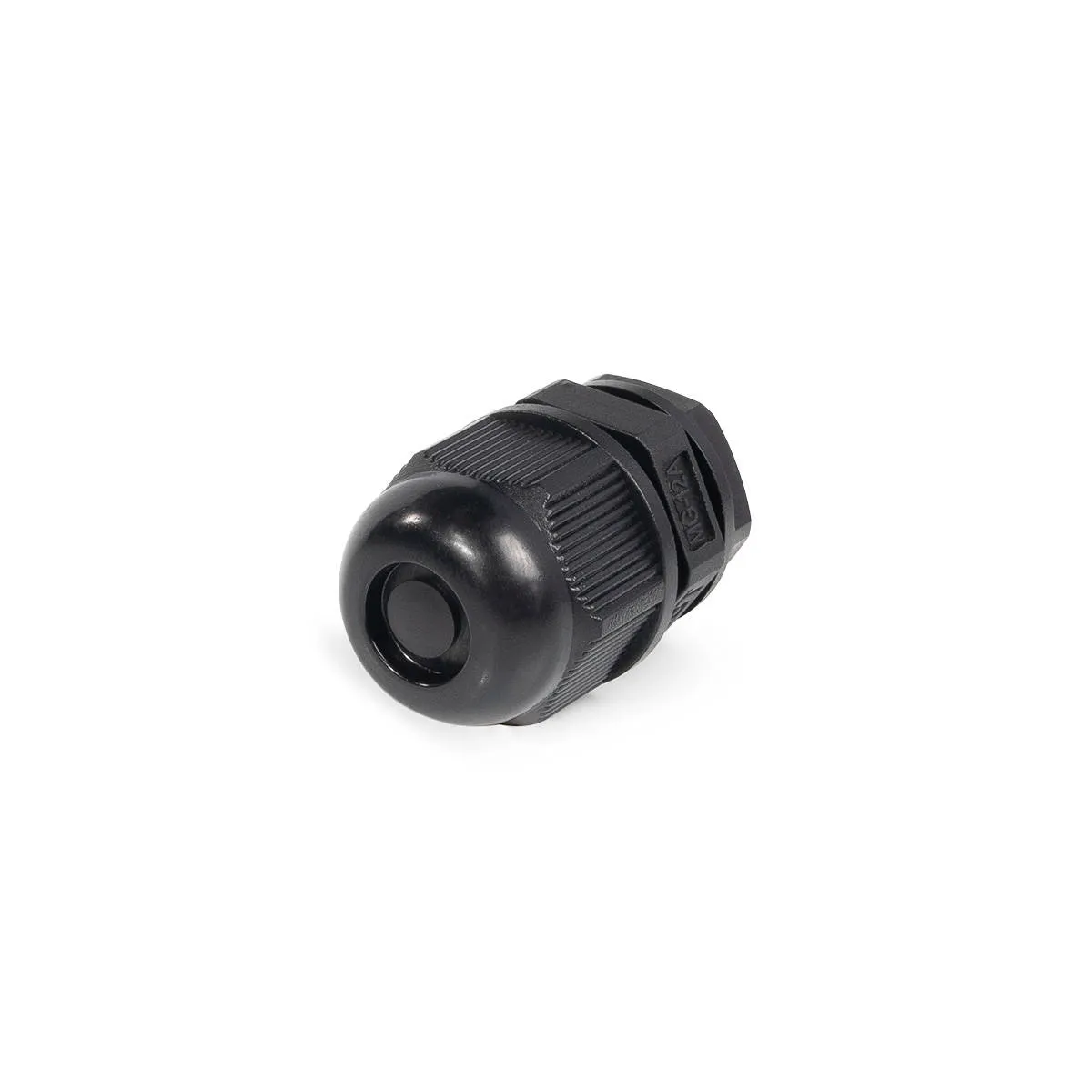

• Designed for the hermetic entry and exit of cables and wires into switchgear enclosures
• Housing material: nylon 6.6, self-extinguishing, halogen-free, UV-resistant
• Seal material: neoprene
• Color: black
• Operating temperature: from -40 °C to +100 °C
• Thread type: metric
• The compression nut design features special locking notches to prevent self-loosening
• IP 68 protection rating
• Dielectric strength: 60 kV/mm
• Specific resistance: 1*1012 Ohm cm
• Resistant to synthetic oils and all types of fuel
• Wrench size marking on the fastening nut
• Protective membrane prevents dust ingress
• Recommended tools:
• Hydraulic hole punching systems:
• PGPO-60
• PGPO-60A
• Hydraulic hole punching presses:
• PGRO-60A
• PGROu-60A
• PGROp-60A
• NMPO-MG die set for installing MG series cable entries
Material type/grade
Polyamide (PA)
For armoured cable
No
For gas explosion hazardous areas
No (without)
For cable diameter to
5.3 мм
For cable diameter from
3 мм
For dust explosion protection zone (EU ATEX directives)
No (without)
Kink protection
No
Design
Straight
Flat cable gland
No
Material
Plastic
Halogen-free
Yes
Nominal metric/PG thread size
12
IP protection rating
IP68
Operating temperature to
100 град.C
Operating temperature from
-40 град.C
Thread type
Metric
Sealing type
Sealing ring (gasket)
Impact-resistant
No
Color
Black
Thread pitch
1.5 мм
Screened
No
EMC-compatible version
No
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
