IEK

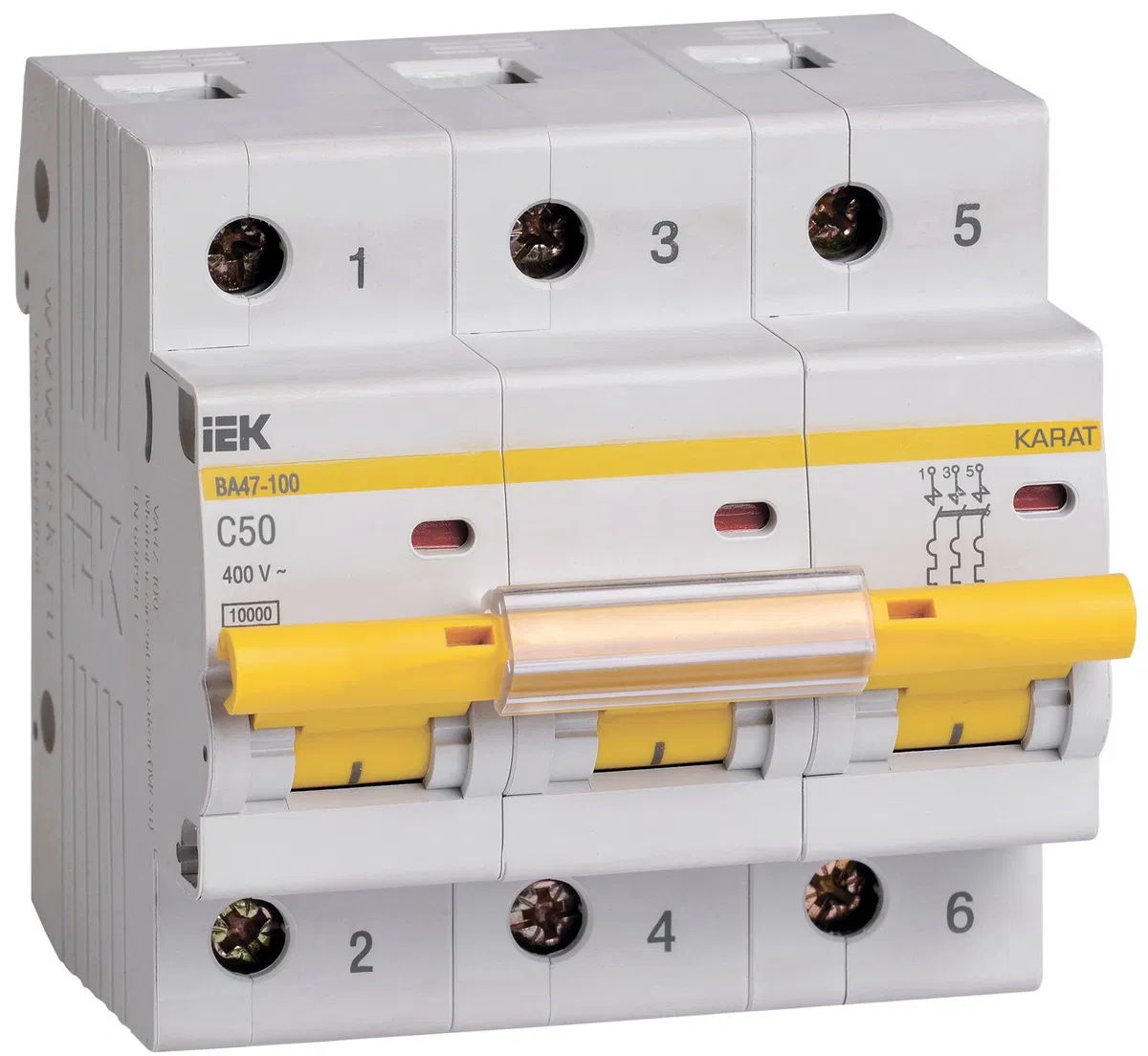

KARAT circuit breaker VA47-100 3P C 50A 10kA IEK MVA40-3-050-C
SKU: MVA40-3-050-C
ETIM: EC000042
12,254 ₽
Get back 122 ₽ in points
Order multiple: 4 шт
Analogues by specifications
Stock by warehouse
VA47-100 circuit breakers are designed to protect distribution and group circuits with active and inductive loads.
Recommended for use in input-distribution devices of domestic and industrial electrical installations.
Additional equipment possible
Yes
Release response time in short-circuit range tm
0.1
Mounting installation depth
74.3 мм
Current limiting class
3
Climatic version
UKhL4
Number of protected poles
3
Number of poles
3
Number of power poles
3
Maximum supply cable cross-section
35 кв.мм
Explosion protection present
Without explosion protection
Availability of residual current release
No
Thermal release available
Yes
Electromagnetic release present
Yes
Electronic release available
No
Rated impulse withstand voltage
6
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
10.0 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
10.0 кА
Rated breaking capacity in accordance with EN 60898
10 кА
Rated voltage
400 В
Rated DC voltage from
≤ 60 В
Rated current
50.0 А
Total number of poles
3
Power loss
27.0 Вт
Current type
AC/DC
Tripping system
Thermal, electromagnetic
Instantaneous release setting method
By multiple (Ki)
Trip unit setting method
By type (A/B/C/D...)
Mounting method
On DIN rail
IP protection rating
IP20
Application area
Industrial and domestic
Mounting rail type
35x7.5
Connection type
Screw connection
Tripping characteristic
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency
50 Гц
Frequency at
50 Гц
Frequency from
50 Гц
Width in modular units
4.5
