IEK

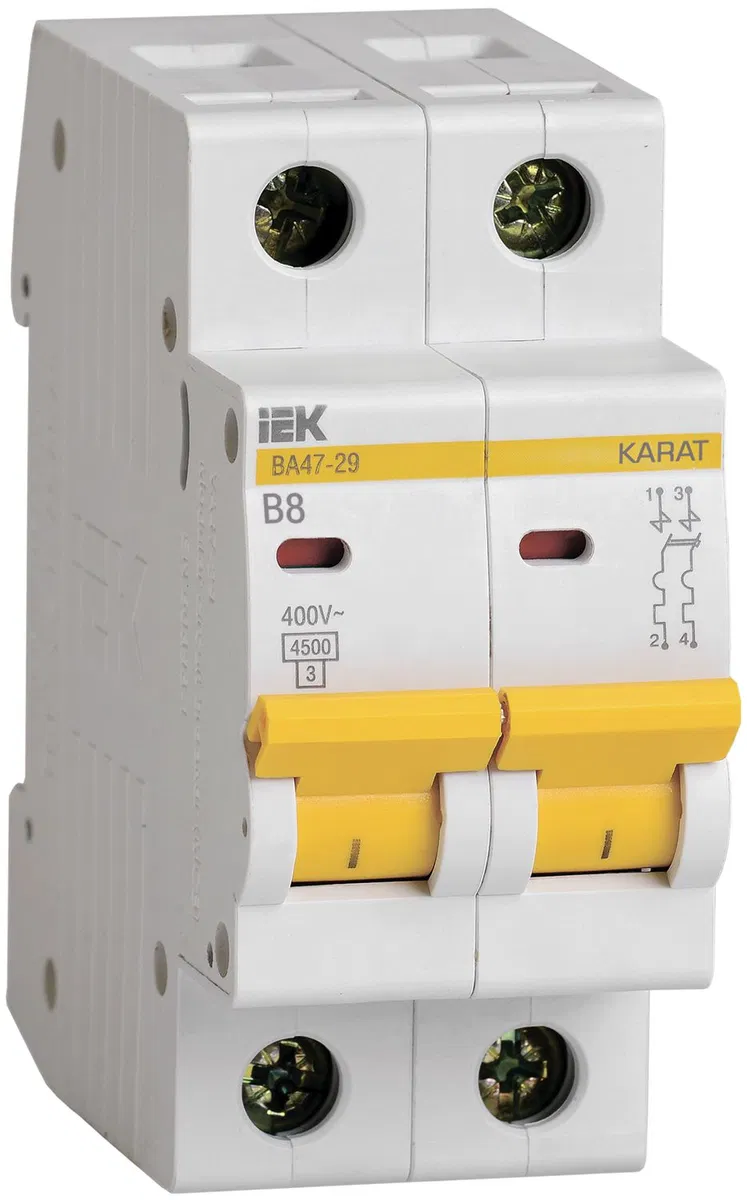

KARAT Circuit breaker VA47-29 2P B 8A 4.5kA IEK MVA20-2-008-B
SKU: MVA20-2-008-B
ETIM: EC000042
647 ₽
Price list (incl. VAT):
862 ₽
Preorder
Order multiple: 6
No description available
| Additional equipment possible | Yes |
| Release response time in short-circuit range tm | 0.1 |
| Mounting installation depth | 73.6 мм |
| Current limiting class | 3 |
| Climatic version | UKhL4 |
| Number of protected poles | 2 |
| Number of poles | 2 |
| Number of power poles | 2 |
| Maximum supply cable cross-section | 25 кв.мм |
| Explosion protection present | Without explosion protection |
| Availability of residual current release | No |
| Thermal release available | Yes |
| Electromagnetic release present | Yes |
| Electronic release available | No |
| Rated impulse withstand voltage | 4 |
| Rated short-circuit breaking capacity Icu IEC 60898 at 230 V | 4.5 кА |
| Rated short-circuit breaking capacity Icu IEC 60898 at 400 V | 4.5 кА |
| Rated breaking capacity in accordance with EN 60898 | 4.5 кА |
| Rated voltage | 400 В |
| Rated DC voltage from | ≤ 48 В |
| Rated current | 8.0 А |
| Total number of poles | 2 |
| Suitable for motor protection switch | No |
| Power loss | 6.0 Вт |
| Current type | AC/DC |
| Tripping system | Thermal, electromagnetic |
| Mounting method | On DIN rail |
| IP protection rating | IP20 |
| Application area | Industrial and domestic |
| Mounting rail type | 35x7.5 |
| Connection type | Screw connection |
| Tripping characteristic | Please provide the text you would like me to translate. |
| Frequency | 50 Гц |
| Frequency at | 50 Гц |
| Frequency from | 50 Гц |
| Width in modular units | 2 |
