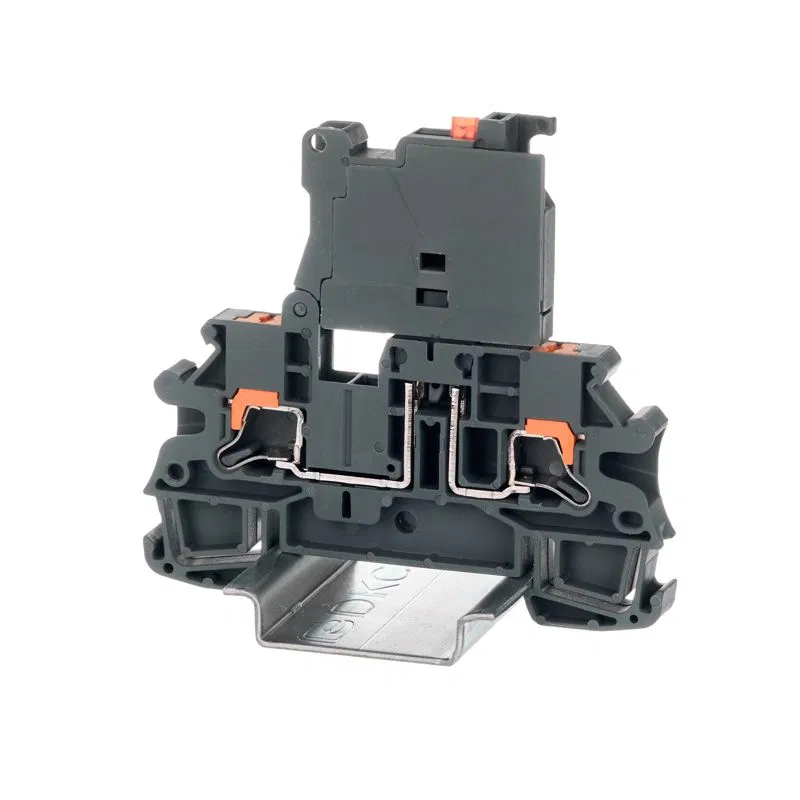

Fuse terminal, Push-in clamp, 2 connection points, 24V indication, 4 mm², gray IPR-4-HESILED24 DKC
SKU: IPR-4-HESILED24
ETIM: EC000899
918 ₽
Get back 9 ₽ in points
Analogues by specifications
Stock by warehouse
Fuse holder for 5x20 mm fuse and LED indicator at 24 V with Push-in terminal designed for connecting two conductors, current limiting, and indicating a blown fuse. Mounting is on OMEGA DIN rail. Operating temperature from -40 to +105°C. Housing made of PA 6.6 with UL-94 V0 flammability rating.
Gray color, 2 connection points, 4 mm2. Plug-in jumper system. Dimensions (H*W*D) 65*69*6.2 mm.
Minimum possible mounting height
65 мм
Length
69 мм
Length
69 мм
Fuse holder design
Rotary
Fuse design
G fuse 5x20 mm
Flammability class of insulation material in accordance with UL57
V0
Number of levels
1
Housing insulation material
Thermoplastic
Fault indication supply voltage at
30 В
Supply voltage for fault indication from
12 В
Rated voltage
30 В
Rated current In
6.3 А
Closing plate can be fitted if required
I understand. I am ready to act as your professional e-commerce/PIM translator. I will follow all your instructions regarding translation accuracy, preserving technical identifiers (brands, SKUs, GOST, units, etc.), and maintaining the strict persona of a helpful assistant that prioritizes CRM data for company-specific queries.
Please provide the text or data you wish to translate.
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Sideways
Current type for fault indication
AC/DC
Stranded wire cross-section with ferrule
0.25...4 мм²
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...4 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Fault indication element type
LED
Colour
Grey
Color
Grey
Width/connection pitch
6.2 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
725 ₽

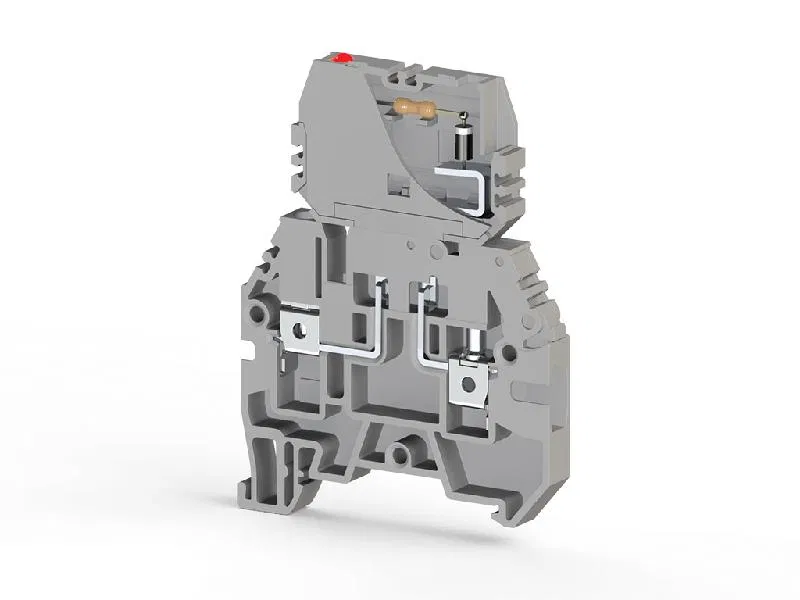

Klemsan Terminal block with fuse holder (5x20 5x25) with 48V DC indication for DIN rail 6mm2 ASK 2LD (48 VDC) Klemsan 351329
