DKC

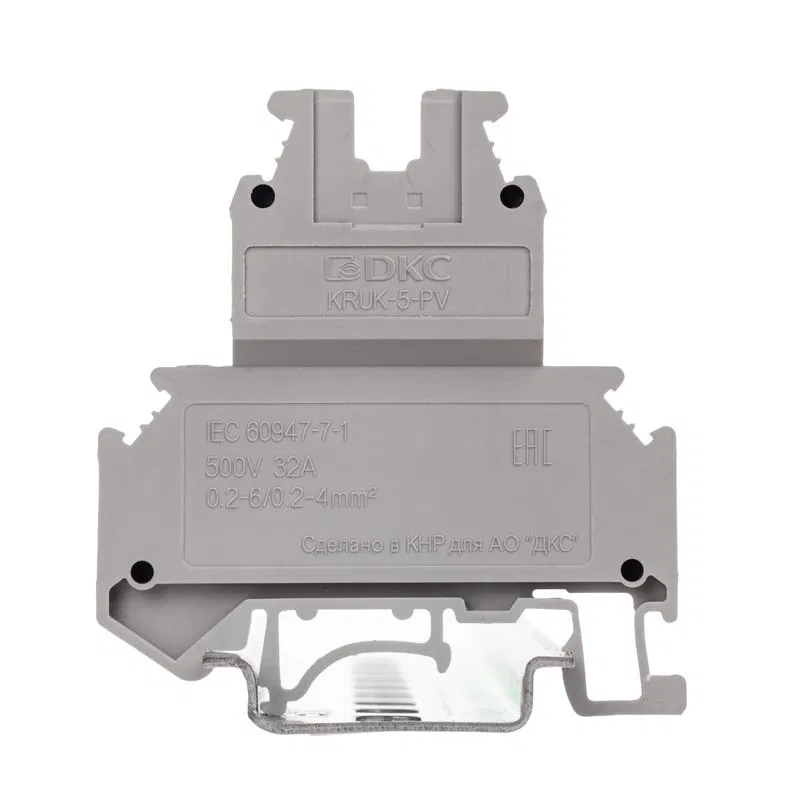

Two-level terminal block, screw clamp, 4 connection points, 4 mm², grey KRUK-5-PV DKC
SKU: KRUK-5-PV
ETIM: EC000897
540 ₽
Get back 5 ₽ in points
Analogues by specifications
Stock by warehouse
Two-level terminal block with screw clamp is designed for connecting four conductors. Mounting on OMEGA DIN rail at an operating temperature from -40 to +105°C. Housing is made of PA 6.6 with flammability class V0 UL-94.
Gray color, 4 connection points, 4 mm2. 1 screw jumper channel. Levels are connected by a jumper. Dimensions (H×W×D) 62×56×5.2 mm.
Version tested for explosion protection "Ex e"
No
Internally linked levels
Yes
Minimum possible mounting height
62 мм
Length
67 мм
Length
67 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
2
Number of poles
4
Number of levels
2
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
32 А
Closing plate can be fitted if required
Yes
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Side
Core cross-section
4 кв.мм
Stranded wire cross-section with ferrule
0.25...4 мм²
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...4 кв.мм
Mounting method
DIN rail/G-rail
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Colour
Grey
Color
Grey
Width/connection pitch
6.2 мм
