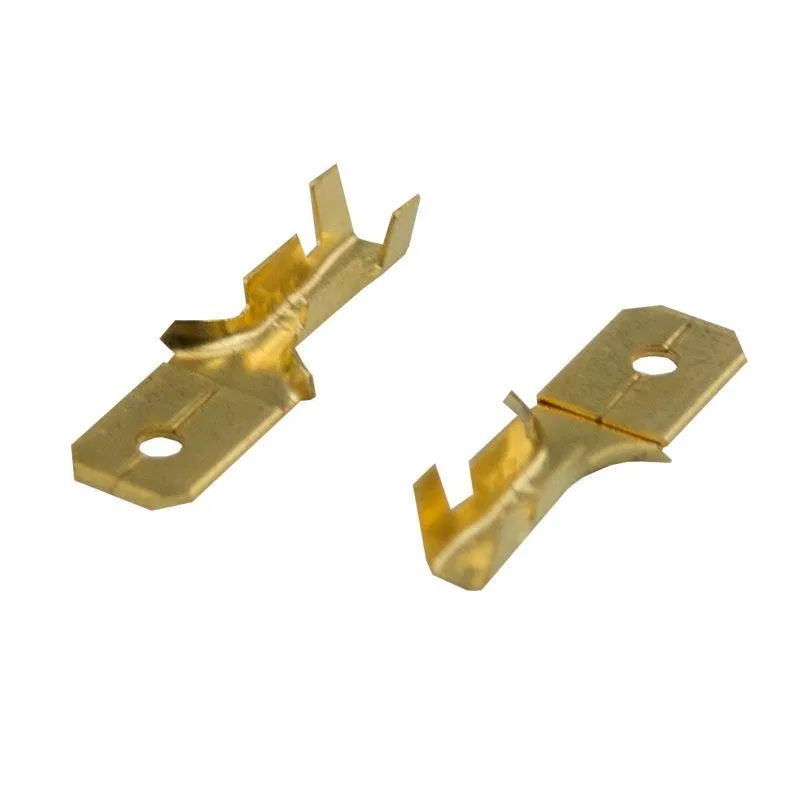

Flat terminal (plug-6.3mm) 1-1.5mm² (DJ617-6.3B) Rexant 08-0913

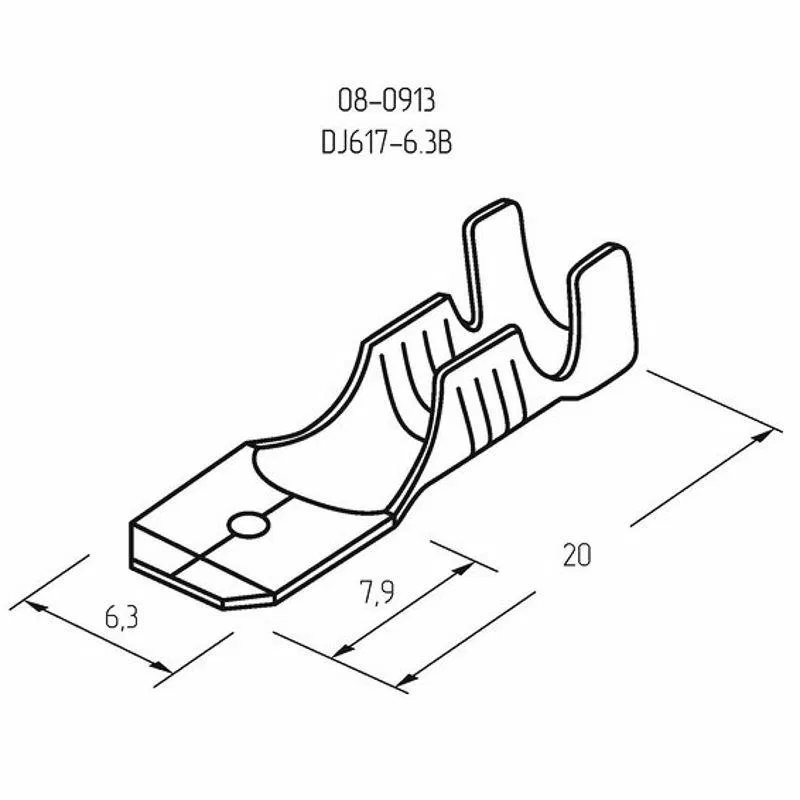

Flat terminal (CP plug – 6.3 mm) 0.5-1.5 mm2 (DJ617-6.3B) REXANT is designed to create a high-quality connection for electrical equipment or to connect wires together, which can be disconnected without extra effort if necessary. Such a terminal is used for terminating stranded copper wires when installing mobile electrical contact connections in rolling stock (automotive, railway, aircraft, and shipbuilding). The non-insulated flat terminal (plug) REXANT is made of brass. Crimping is performed with special crimping tools (for example, ht-202 art.12-3031 and 12-3032; ht-230 art.12-3101 and 12-3001; ht-301 art.12-3020) on the conductor and the insulation, which ensures maximum connection strength with the wire. The contact size is determined by the terminal width. Each terminal has a hole that serves as a lock-type fastener with a socket connector. Main characteristics: Operating temperature range: -55...+135 ° Wire cross-section range: 0.5-1.5 mm2 Total plug length: 20 mm Working plug width: 6.3 mm The use of flat terminals makes it possible to significantly speed up electrical installation work, while providing the possibility of repeated disconnection and reconnection of wires.
