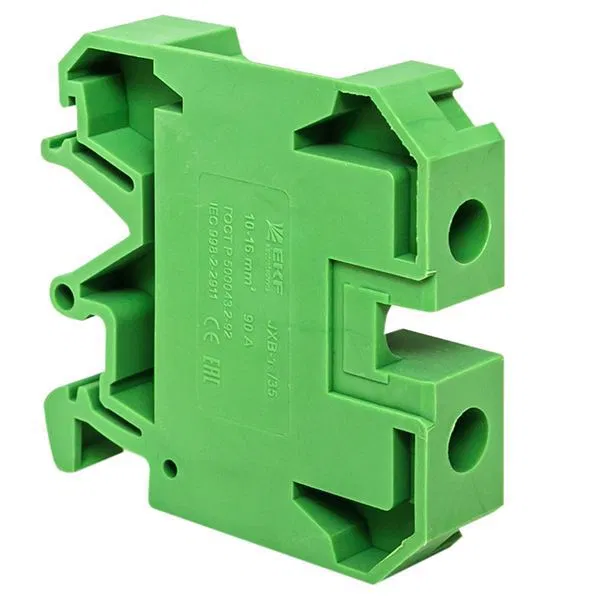

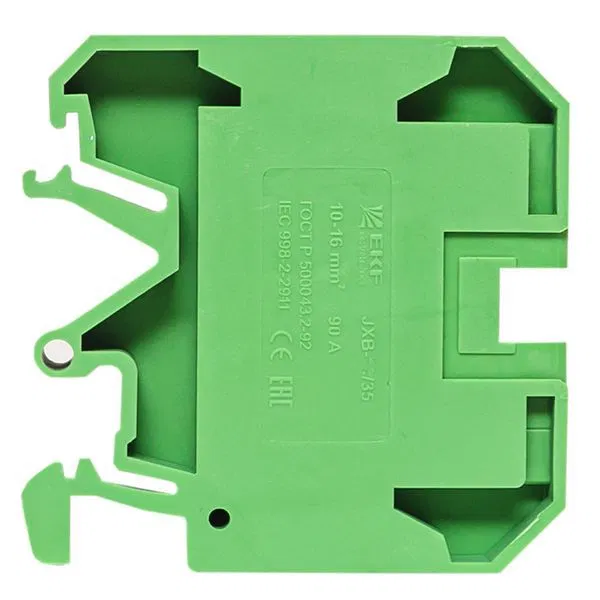

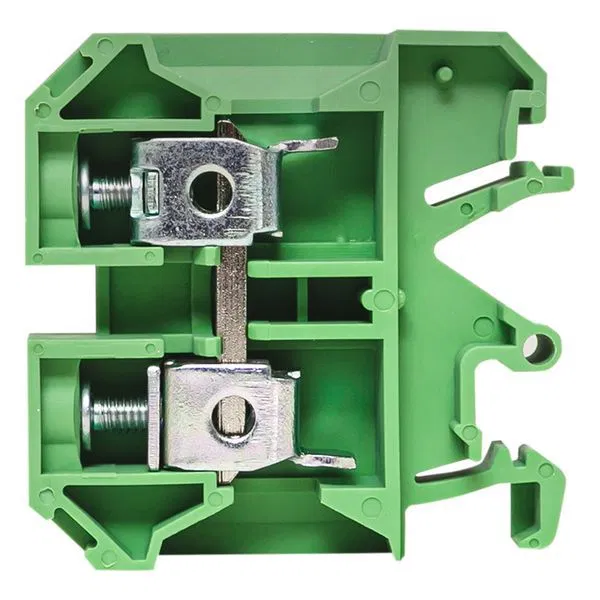

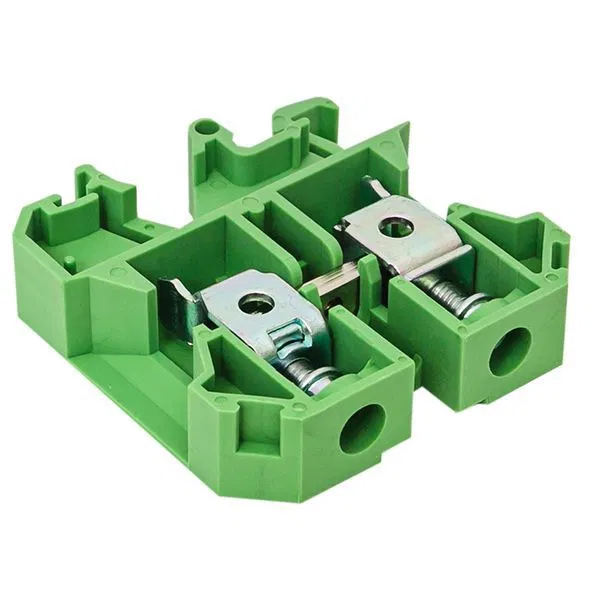

Terminal block JXB-10/35 (70a) green EKF plc-jxb-10/35gn

SKU: plc-jxb-10/35gn

ETIM: EC000897

123 ₽

Preorder

Order multiple: 1000

Description Specifications Reviews

Version tested for explosion protection "Ex e"	No
Internally linked levels	No
Minimum possible mounting height	45 мм
Length	42 мм
Flammability class of insulation material in accordance with UL57	V0
Number of terminals per level	2
Number of levels	1
Housing insulation material	Polyamide (PA)
Rated voltage	800 В
Rated current In	70 А
Closing plate can be fitted if required	Yes
Operating temperature	85 град.C
Operating temperature from	-40 град.C
Connection position	Side
Flexible stranded conductor cross-section up to	10 кв.мм
Stranded flexible conductor cross-section from	6 кв.мм
Solid conductor cross-section to	10 кв.мм
Solid conductor cross-section from	6 кв.мм

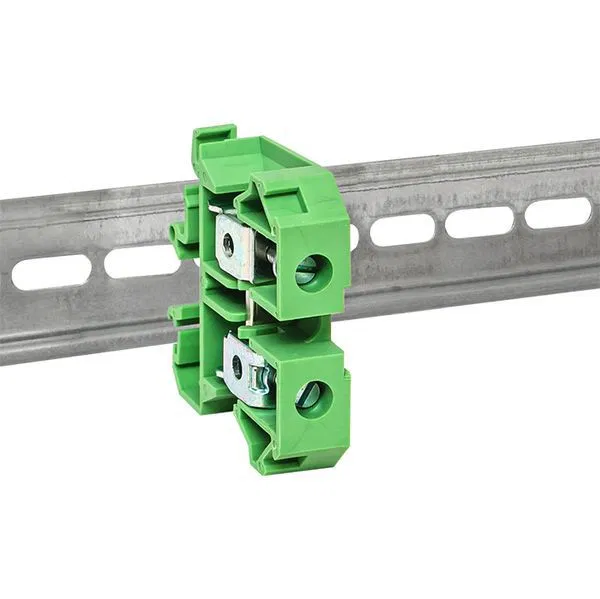

Mounting method	DIN rail 35 mm
Electrical connection type 1	Screw connection
Color	Green
Width/connection pitch	10 мм
