EKF

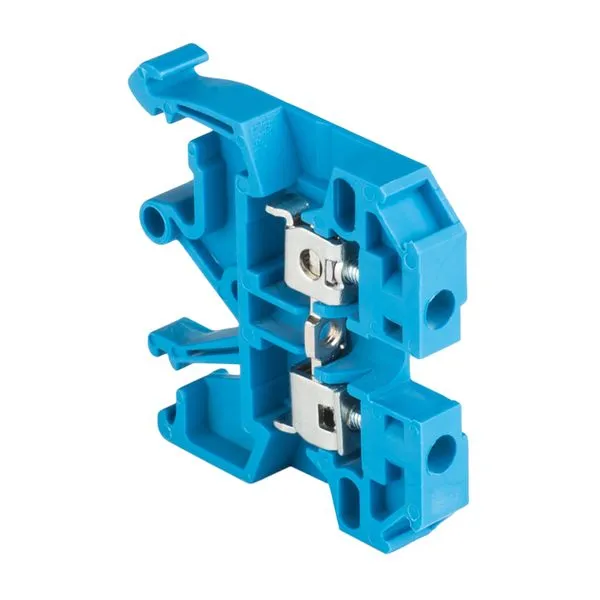

Screw feed-through terminal block JXB 2.5 mm2 blue EKF plc-jxb-2.5/35b
SKU: plc-jxb-2.5/35b
ETIM: EC000897
1,426 ₽
Get back 14 ₽ in points
Order multiple: 50 шт
Analogues by specifications
Stock by warehouse
JXB EKF PROxima and EK-JXB (ground) terminal blocks are installed on a DIN rail in distribution boards for reliable and convenient connection of conductors of various cross-sections and different purposes. The conductor is clamped with a screw. Designed for use in AC circuits with a frequency of 50 Hz. Made of colored fire-resistant polyamide. GOST R 50030.7.2002
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Minimum possible mounting height
40.5 мм
Length
40.7 мм
Insulated
Yes
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
2
Number of levels
1
Housing insulation material
Polyamide (PA)
Rated voltage
800 В
Rated current In
25 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40...85 град.C
Connection position
Side
With sealing head
No
Flexible stranded conductor cross-section up to
2.5 кв.мм
Stranded flexible conductor cross-section from
1...2.5 кв.мм
Solid conductor cross-section to
2.5 кв.мм
Solid conductor cross-section from
1 кв.мм
Mounting method
DIN rail (O-profile) 35 mm
Electrical connection type 1
Screw connection
Color
Blue
Colour
Blue
Width/connection pitch
6.5 мм
