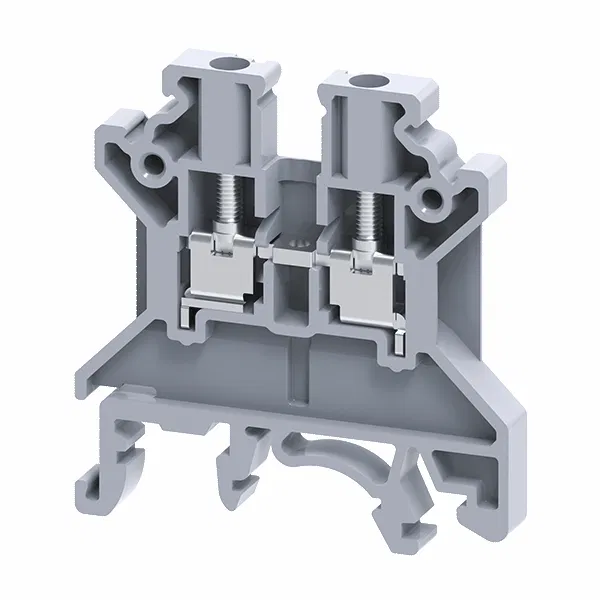

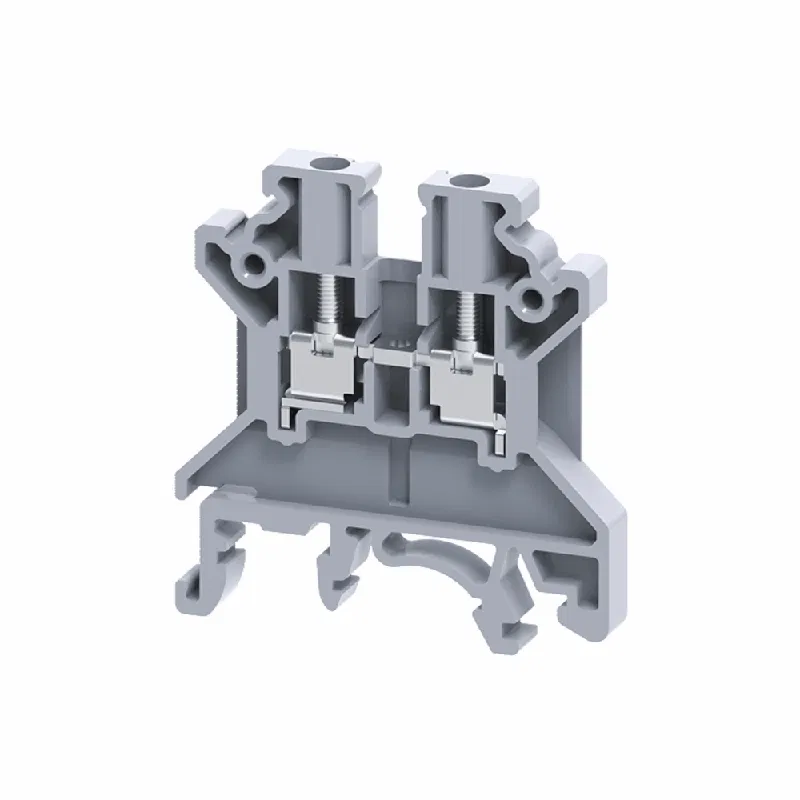

OptiClip CTS-2.5-I-24A-(0.2-2.5) yellow screw feed-through terminal block KEAZ 332718
SKU: 332718
ETIM: EC000897
57 ₽
Get back 1% in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Length
43 мм
Number of poles
1
Number of levels
1
Housing insulation material
Polyamide (PA)
Rated voltage
1000 В
Rated current In
24 А
Closing plate can be fitted if required
No
Operating temperature
85 град.C
Operating temperature from
-40 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
2.5 кв.мм
Stranded flexible conductor cross-section from
.2 кв.мм
Solid conductor cross-section to
4 кв.мм
Solid conductor cross-section from
.2 кв.мм
Mounting method
DIN rail/G-rail
Electrical connection type 1
Spring clamp connection
Color
Yellow
Width/connection pitch
5 мм
