Order multiple: 30 шт
From our own stock you can buy 28 шт in any quantity. Above that — supply on order, in multiples of 30 шт.
Analogues by specifications
Stock by warehouse

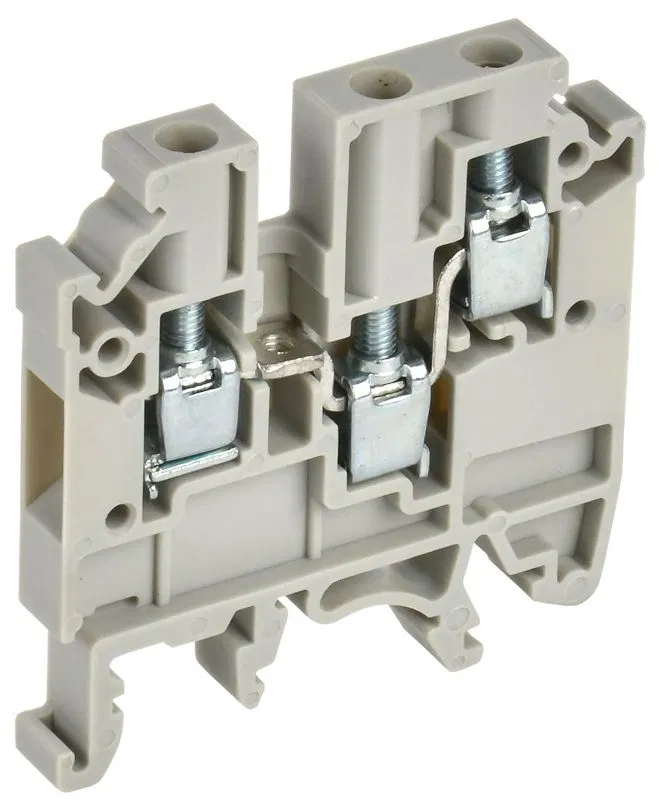

Screw terminal blocks are installed on a DIN rail in electrical panels and industrial equipment for reliable and convenient connection of conductors of various cross-sections and purposes. The conductor is clamped by a screw. They are designed for use in AC electrical circuits with a voltage of up to 800V and a frequency of 50Hz. Made of non-drying and non-cracking fire-resistant colored polyamide. Screw terminal blocks are used to create a convenient load distribution system, neat installation, and ease of further operation of electrical systems.
Insulated
Yes
Flammability class of insulation material in accordance with UL57
V0
Housing insulation material
Polyamide (PA)
Rated voltage
800 В
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40...85 град.C
With sealing head
No
Flexible stranded conductor cross-section up to
10 кв.мм
Stranded flexible conductor cross-section from
0.5...10 кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
0.5...6 кв.мм
Mounting method
DIN rail (O-profile) 35 mm
Electrical connection type 1
Screw connection
Color
Grey
Colour
Grey
