DKC

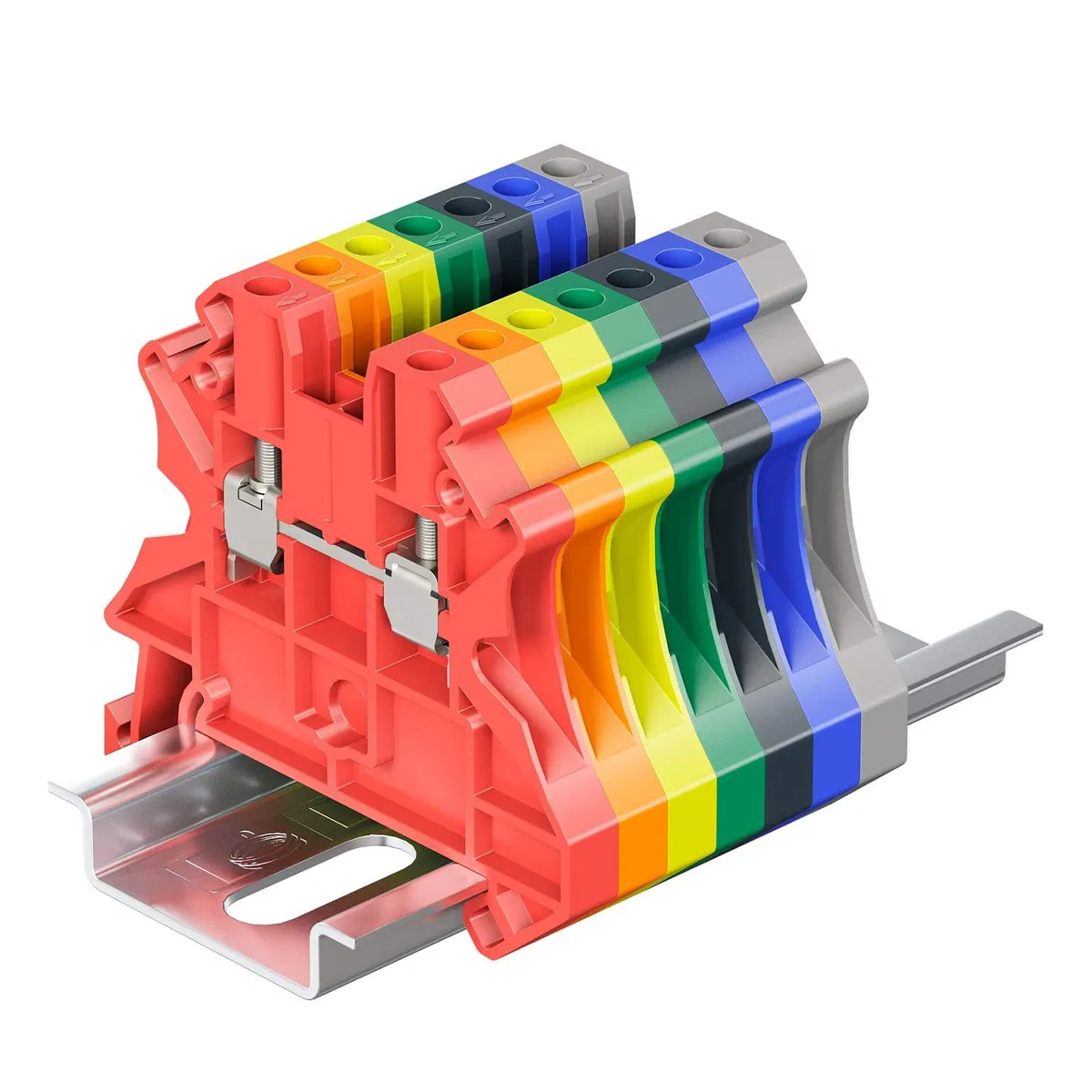

Feed-through terminal, screw clamp, 2 connection points, 2.5 sq.mm, yellow TUR-2.5R-YE DKC
SKU: TUR-2.5R-YE
ETIM: EC000897
54 ₽
Get back 1% in points
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Minimum possible mounting height
47 мм
Length
53.3 мм
Length
53.3 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
2
Number of poles
2
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
24 А
Closing plate can be fitted if required
Yes
Operating temperature
105 град.C
Operating temperature from
-60 град.C
Connection position
Side
With protection against contact with live parts
I understand. I am ready to act as your professional e-commerce/PIM translator. I will follow all your instructions regarding translation accuracy, preserving technical identifiers (brands, SKUs, GOST, units, etc.), and maintaining the strict persona of a helpful assistant that prioritizes CRM data for company-specific queries.
Please provide the text or data you wish to translate.
Core cross-section
2.5 кв.мм
Stranded wire cross-section with ferrule
0.14...2.5 мм²
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
Please provide the text you would like me to translate. You only provided ".14", which does not contain meaningful text for translation. кв.мм
Solid conductor cross-section to
4 кв.мм
Solid conductor cross-section from
Please provide the text you would like me to translate. You only provided ".14", which does not contain meaningful text for translation. кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.14...4 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Colour
Yellow
Color
Yellow
Width/connection pitch
5.2 мм
