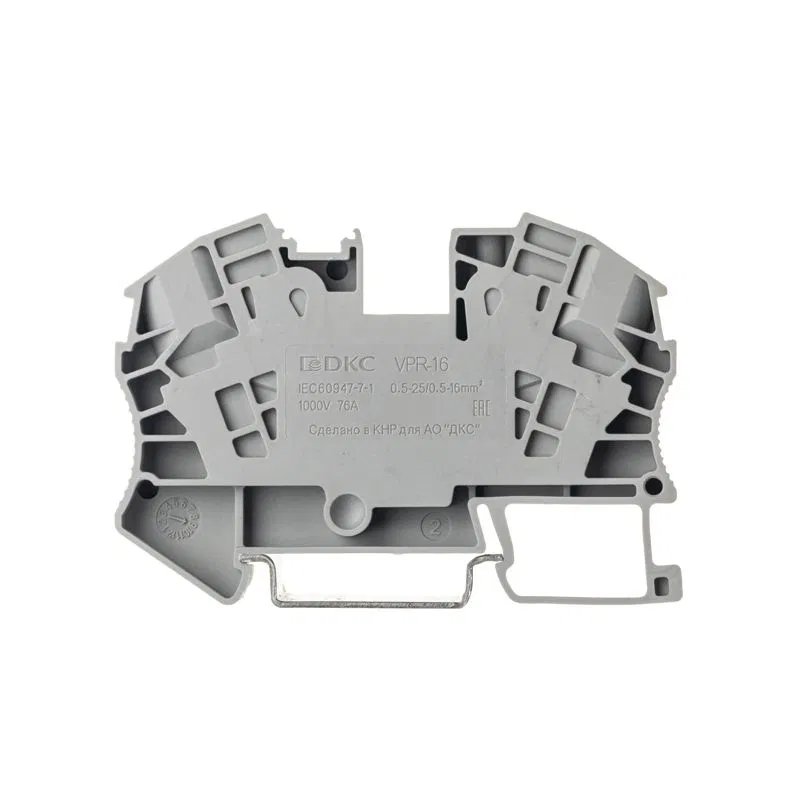

Feed-Through Terminal, push-in clamp, 2 connection points, 16 sq.mm, grey VPR-16-GY DKC
SKU: VPR-16-GY
ETIM: EC000897
267 ₽
Get back 2 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
Feed-through terminal with Push-in clamp is designed for connecting two conductors, and the push-button provides protection against installation errors and accidental contact. Mounting is on OMEGA DIN rail. Operating temperature from -40 to +105°C. Housing is made of PA 6.6 with flammability class V0 UL-94.
Grey color, 2 connection points, 16 mm2. 2 channels for pluggable jumpers. Dimensions (H×W×D) 60.1×75.4×12.2 mm.
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Minimum possible mounting height
60.1 мм
Length
75.4 мм
Length
75.4 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
2
Number of poles
2
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
76 А
Closing plate can be fitted if required
Yes
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Top
Core cross-section
16 кв.мм
Stranded wire cross-section with ferrule
0.5...16 мм²
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
.5 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
.5 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.5...16 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Grey
Color
Grey
Width/connection pitch
12.2 мм
