DKC

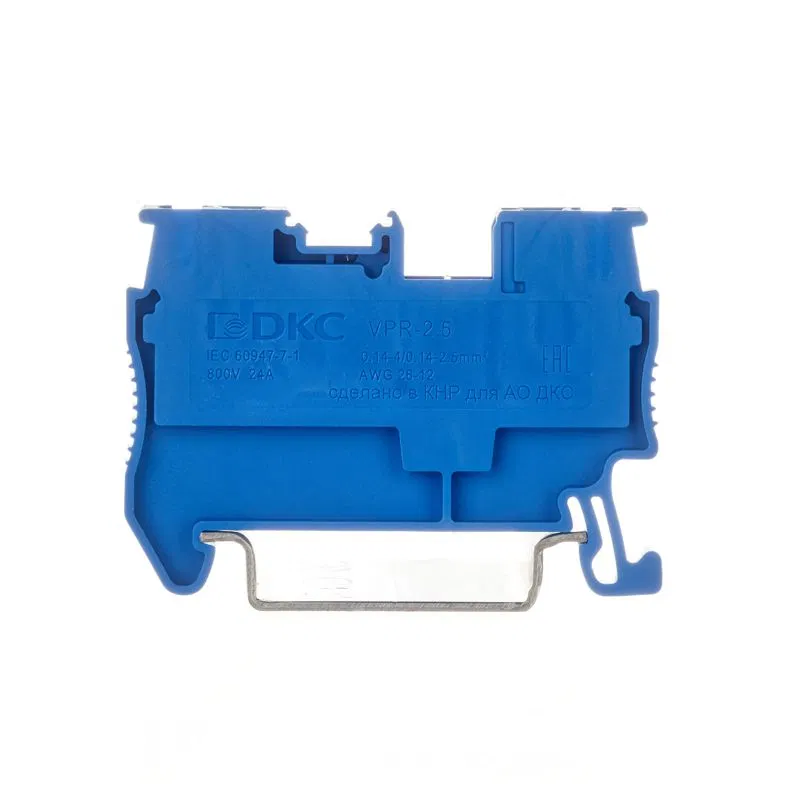

Feed-through terminal, push-in clamp, 2 connection points, 2.5 mm², blue VPR-2.5-BU DKC
SKU: VPR-2.5-BU
ETIM: EC000897
74 ₽
Price list (incl. VAT):
106 ₽
In stock
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
|
Moscow warehouse
In stock
|
82 | pcs | August 3 | August 3 | |
|
Manufacturer warehouse
Available
|
16880 | шт | August 5 | August 5 |
Select a warehouse to order
Проходная клемма с зажимом Push-in предназначена для соединения двух проводников, а за счет кнопки-толкателя обеспечивается защита от ошибок при монтаже и случайного прикосновения. Монтаж осуществляется на DIN-рейку OMEGA. Температура эксплуатации от -40 до +105оС. Корпус выполнен из ПА 6.6 с классом горючести V0 UL-94.
Синий цвет, 2 точки подключения, 2.5 мм2. 2 канала для вставных перемычек. Габариты (В?Ш?Г) 36,9?48,7?5,2 мм.
| Version tested for explosion protection "Ex e" | No |
| Internally linked levels | No |
| Minimum possible mounting height | 36.9 мм |
| Length | 48.7 мм |
| Length | 48.7 мм |
| Flammability class of insulation material in accordance with UL57 | V0 |
| Number of terminals per level | 2 |
| Number of poles | 2 |
| Number of levels | 1 |
| Housing insulation material | Thermoplastic |
| Rated voltage | 800 В |
| Rated current In | 24 А |
| Closing plate can be fitted if required | Yes |
| Operating temperature | 105 град.C |
| Operating temperature from | -40 град.C |
| Connection position | Top |
| Core cross-section | 2.5 кв.мм |
| Stranded wire cross-section with ferrule | 0.14...2.5 мм² |
| Flexible stranded conductor cross-section up to | 2.5 кв.мм |
| Stranded flexible conductor cross-section from | Please provide the text you would like me to translate. You only provided ".14", which does not contain meaningful text for translation. кв.мм |
| Solid conductor cross-section to | 4 кв.мм |
| Solid conductor cross-section from | Please provide the text you would like me to translate. You only provided ".14", which does not contain meaningful text for translation. кв.мм |
| Extra-fine-stranded flexible conductor cross-section without ferrule, from | 0.14...2.5 кв.мм |
| Mounting method | DIN rail 35 mm |
| Electrical connection type 1 | Spring clamp connection |
| Electrical connection type 2 | Spring clamp connection |
| Color | Blue |
| Colour | Blue |
| Width/connection pitch | 5.2 мм |
