DKC

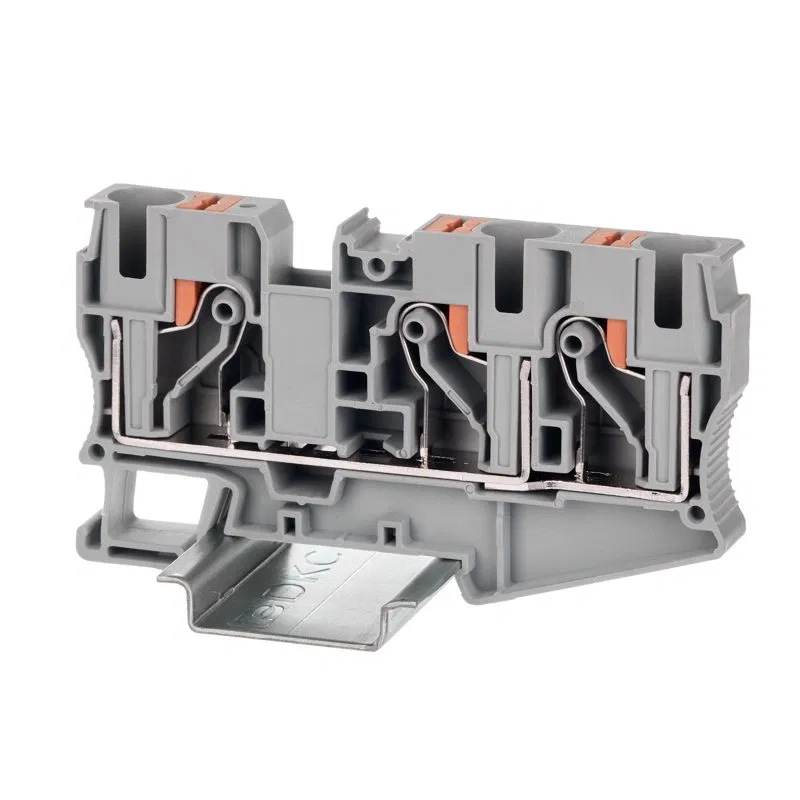

Feed-Through Terminal, push-in clamp, 3 connection points, 6 sq.mm, grey VPR-6-TWIN-GY DKC
SKU: VPR-6-TWIN-GY
ETIM: EC000897
272 ₽
Get back 2 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Minimum possible mounting height
44.1 мм
Length
74.2 мм
Length
74.2 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
3
Number of poles
3
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
41 А
Closing plate can be fitted if required
Yes
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Top
Core cross-section
4 кв.мм
Stranded wire cross-section with ferrule
0.5...6 мм²
Flexible stranded conductor cross-section up to
6 кв.мм
Stranded flexible conductor cross-section from
It appears your message contains only ".5". Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. кв.мм
Solid conductor cross-section to
10 кв.мм
Solid conductor cross-section from
It appears your message contains only ".5". Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.5...6 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Grey
Color
Grey
Width/connection pitch
8.2 мм
