DKC

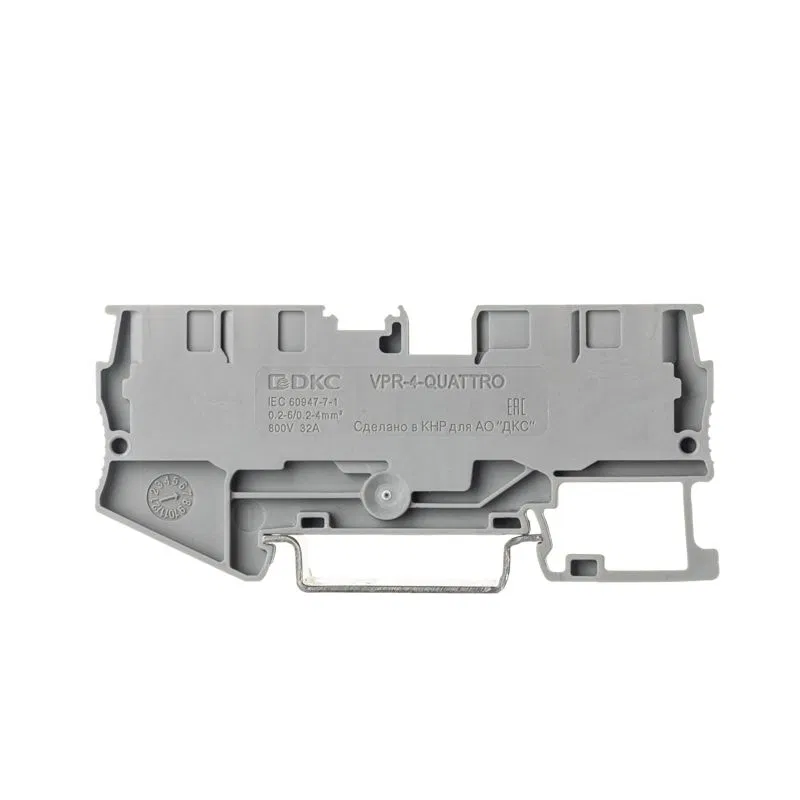

Feed-Through Terminal, Push-In Clamp, 4 Connection Points, 4 sq.mm, Gray VPR-4-QUATTRO-GY DKC
SKU: VPR-4-QUATTRO-GY
ETIM: EC000897
163 ₽
Get back 1 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Minimum possible mounting height
36.9 мм
Length
79 мм
Length
79 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
4
Number of poles
4
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
800 В
Rated current In
32 А
Closing plate can be fitted if required
Yes
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Top
Core cross-section
4 кв.мм
Stranded wire cross-section with ferrule
0.2...4 мм²
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
Please provide the text you would like me to translate. You only provided ".14", which does not contain meaningful text for translation. кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.14...4 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Grey
Color
Grey
Width/connection pitch
6.2 мм
