Legrand (группа IEK)

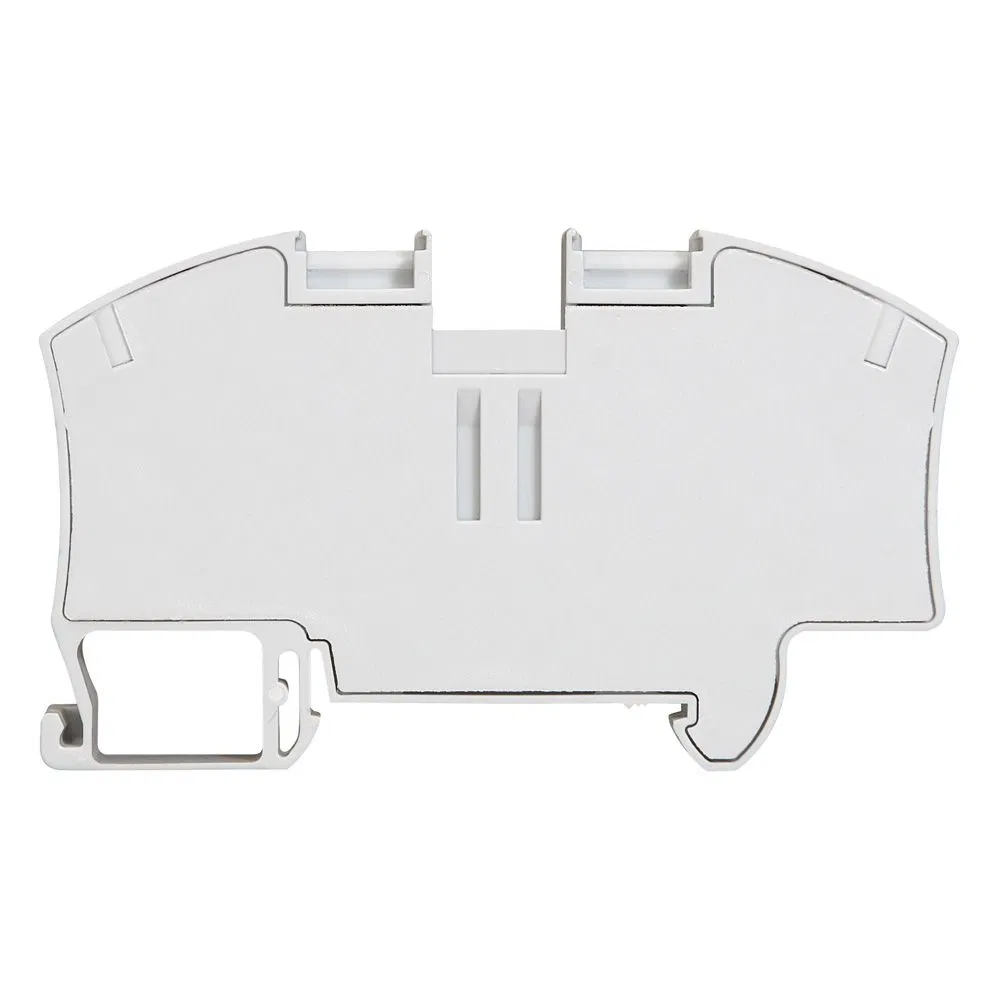

Spring terminal Viking3 16mm2 pitch 12mm Leg 037264 Legrand
SKU: 037264
ETIM: EC000897
1,710 ₽
Get back 17 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 10 шт
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
Yes
Internally linked levels
No
Minimum possible mounting height
51.5 мм
Length
85 мм
Number of terminals per level
2
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
800 В
Rated current In
76 А
Closing plate can be fitted if required
No
Operating temperature
40 град.C
Operating temperature from
-5 град.C
Connection position
Inclined
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
4 кв.мм
Solid conductor cross-section to
16 кв.мм
Solid conductor cross-section from
4 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Spring clamp connection
Color
Grey
Width/connection pitch
12 мм
