EKF

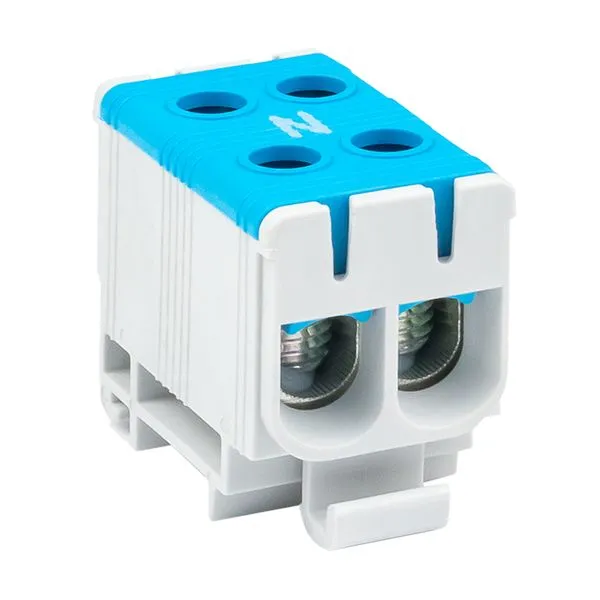

KSV 16-50mm2 single double input power terminal EKF plc-kvs2-16-50-blue
SKU: plc-kvs2-16-50-blue
ETIM: EC000897
295 ₽
Get back 2 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
EKF PROxima KSV terminals are designed for connecting incoming copper and aluminum conductors. Single-core and multi-core conductors can be connected, as well as flexible multi-wire wires with a ferrule. Cross-section of connected wires: from 2.5 to 240 mm2 (depending on the size of the terminals). The terminal is fixed on the DIN rail using a special fastener after applying slight force during installation. The process of connecting a conductor to the terminal is carried out in the classic way – loosen the hex screw, insert the conductor into the hole, and tighten the screw. KSV ensures a safe connection of copper and aluminum conductors.
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Minimum possible mounting height
43 мм
Length
49 мм
Insulated
Yes
Number of terminals per level
4
Number of poles
2
Number of levels
1
Housing insulation material
Polyamide (PA)
Rated voltage
800 В
Rated current In
160 А
Closing plate can be fitted if required
No
Operating temperature
80 град.C
Operating temperature from
-40 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
50 кв.мм
Stranded flexible conductor cross-section from
2.5 кв.мм
Solid conductor cross-section to
50 кв.мм
Solid conductor cross-section from
2.5 кв.мм
Mounting method
DIN rail
Electrical connection type 1
Screw connection
Color
Blue
Colour
Blue
Width/connection pitch
30 мм
