EKF
Power terminal block double KSV 35-150 yellow-green EKF PROxima kvs2-35-150-y-green
SKU: kvs2-35-150-y-green
ETIM: EC000897
900 ₽
Get back 9 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Minimum possible mounting height
58 мм
Length
95 мм
Insulated
Yes
Number of terminals per level
4
Number of poles
2
Number of levels
1
Housing insulation material
Polyamide (PA)
Rated voltage
800 В
Rated current In
320 А
Closing plate can be fitted if required
No
Operating temperature
80 град.C
Operating temperature from
-40 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
150 кв.мм
Stranded flexible conductor cross-section from
35 кв.мм
Solid conductor cross-section to
150 кв.мм
Solid conductor cross-section from
35 кв.мм
Mounting method
DIN rail/Screw
Electrical connection type 1
Screw connection
Color
Yellow-green
Width/connection pitch
49.5 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
446 ₽
DKC Distribution block with vertical adapter for rails width 15/35mm, push-in clamp, 1 input 6 sq.mm, 6 connection points 2.5 sq.mm, grey DTP1-106-104SPUG-V DKC
SKU: DTP1-106-104SPUG-V
429 ₽
IEK ARMAFIX Screw terminal CTS 35mm2 red IEK AF-CT10-00-K04-035
SKU: AF-CT10-00-K04-035
233 ₽

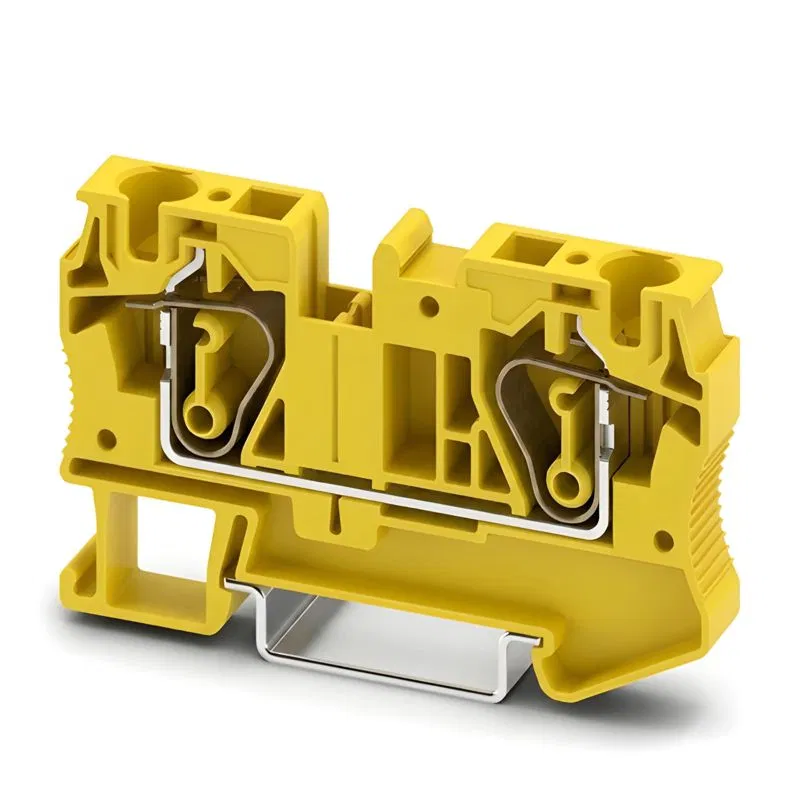

Phoenix Contact Feed-through terminal block STS 2.5-QUATTRO Phoenix Contact 3031746
