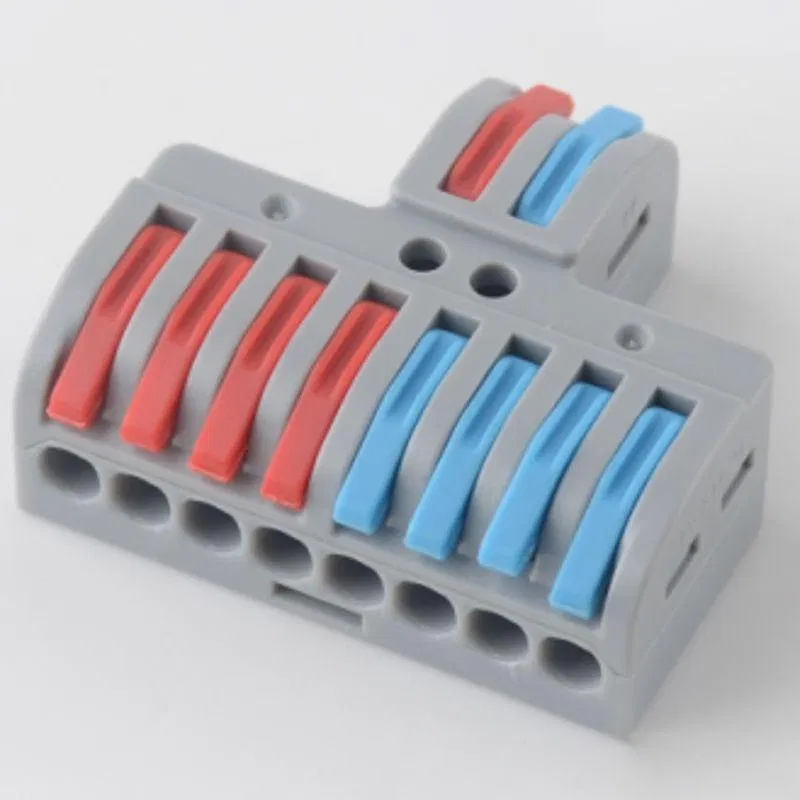

Terminal block SMK 2x4 pass-through branching 2 poles with mounting base (1 input 4 outputs per pole) Rexant 07-5231

REXANT reusable through-connection terminal blocks are designed for connecting single-core and multi-core stripped copper conductors. Consists of 2 insulated poles. Used for splitting 2-core wires into 4 directions. Contact is made by clamping the conductor with a plate. The design prevents accidental contact disconnection. A special technological hole on the terminal body is intended for checking the connection with a tester-probe or a multimeter probe. For ease of use, different phases of the terminal have unique color markings. Specifications: Material: Polyamide 66 Number of poles: 2 Number of inputs: 10 Contact material: tinned copper Clamp: steel Color: gray Voltage: 450 V Wire types: single-core, multi-core Current: for single-core wires — 32 A, for multi-core wires — 24 A Supported cross-section: 2x0.14-4 mm2 (single-core wire), 2x0.2-2.5 mm2 (multi-core wire) Operating temperature: –40...+85 °C Stripping length: 10 mm
