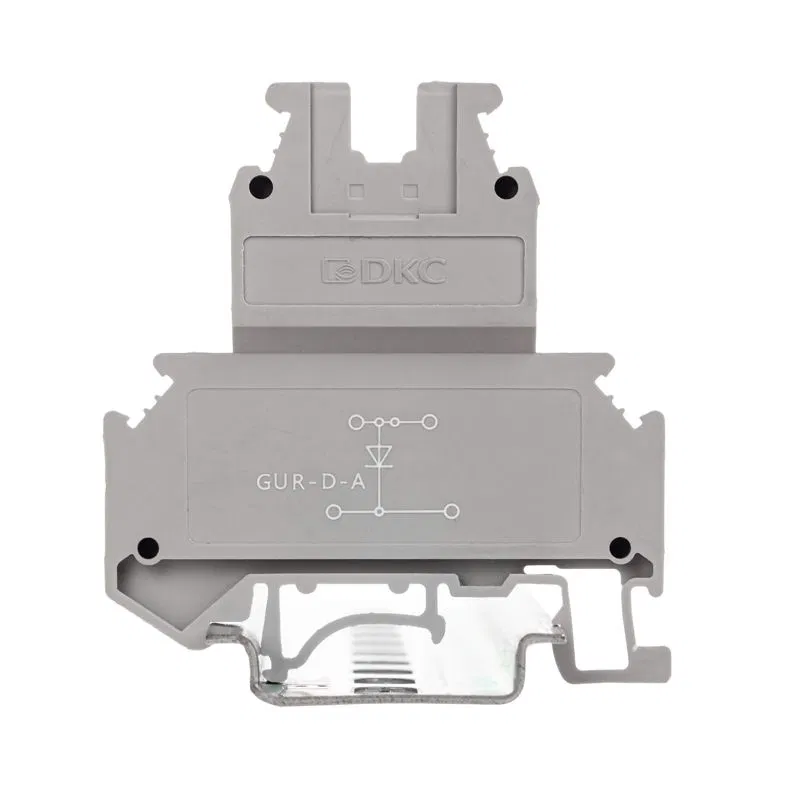

Terminal with built-in diode, two-level, one diode between upper and lower level, cathode connected to lower level, screw clamp, 4 connection points, 4 sq.mm, grey GUR-D-A DKC
SKU: GUR-D-A
ETIM: EC000903
318 ₽
Get back 3 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Internally linked levels
Yes
Length
56 мм
Length
56 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
2
Number of levels
2
Housing insulation material
Thermoplastic
Rated voltage
500 В
Rated current In
.5 А
Closing plate can be fitted if required
Yes
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Sideways
Stranded wire cross-section with ferrule
0.2...4 мм²
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
.25 кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
.2 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.25...4 кв.мм
Mounting method
DIN rail/G-rail
Component type
Diode
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Color
Grey
Colour
Grey
Width/connection pitch
6.2 мм
