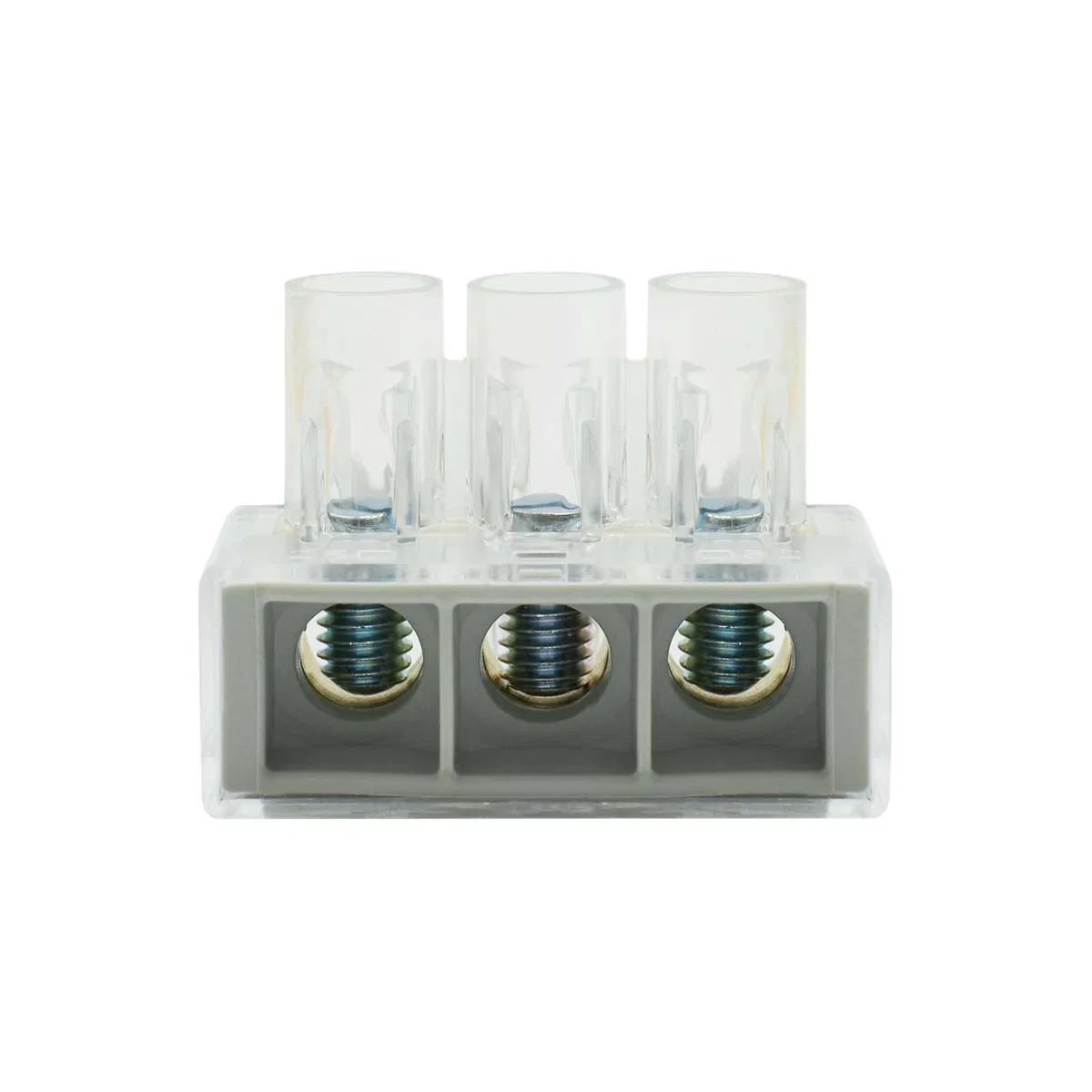

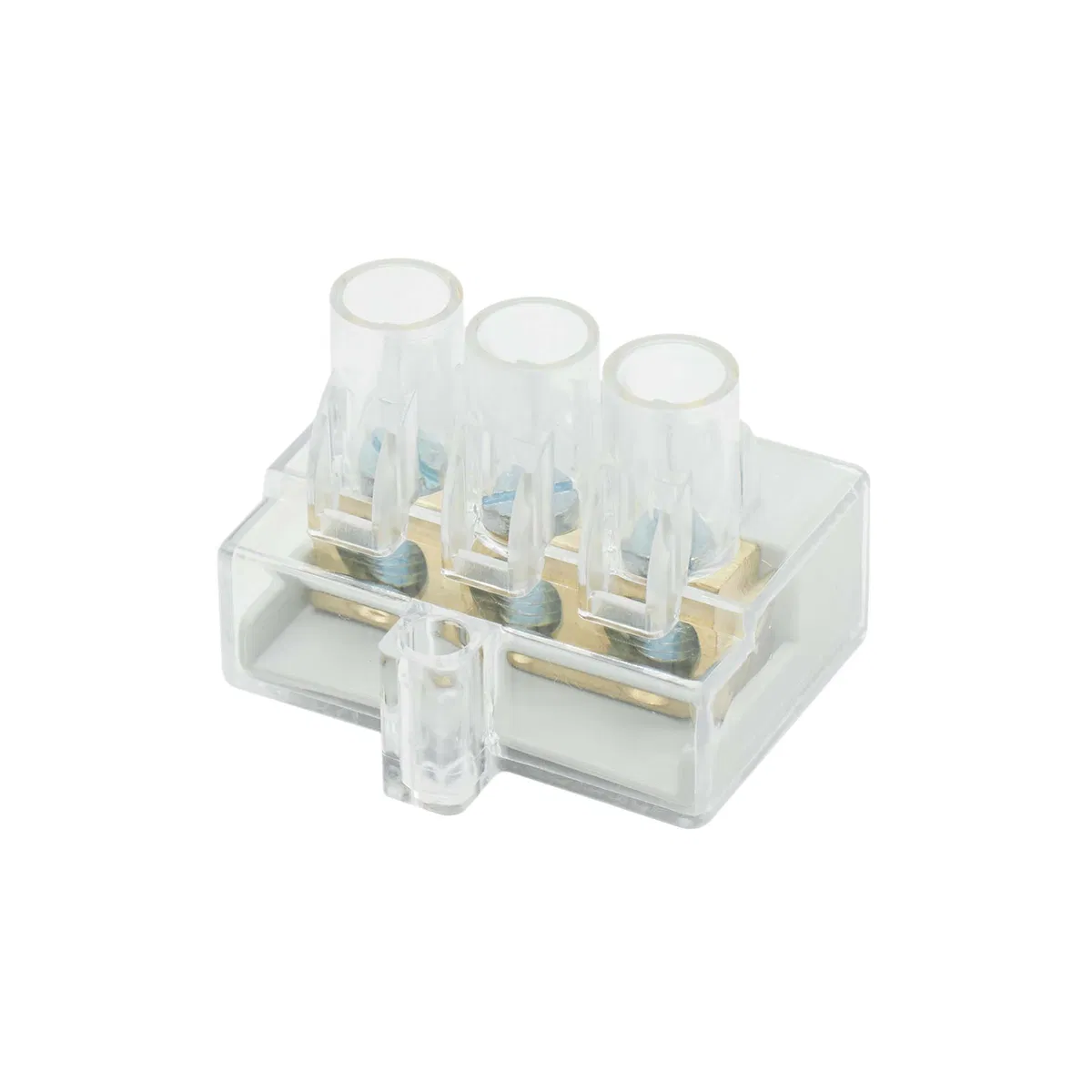

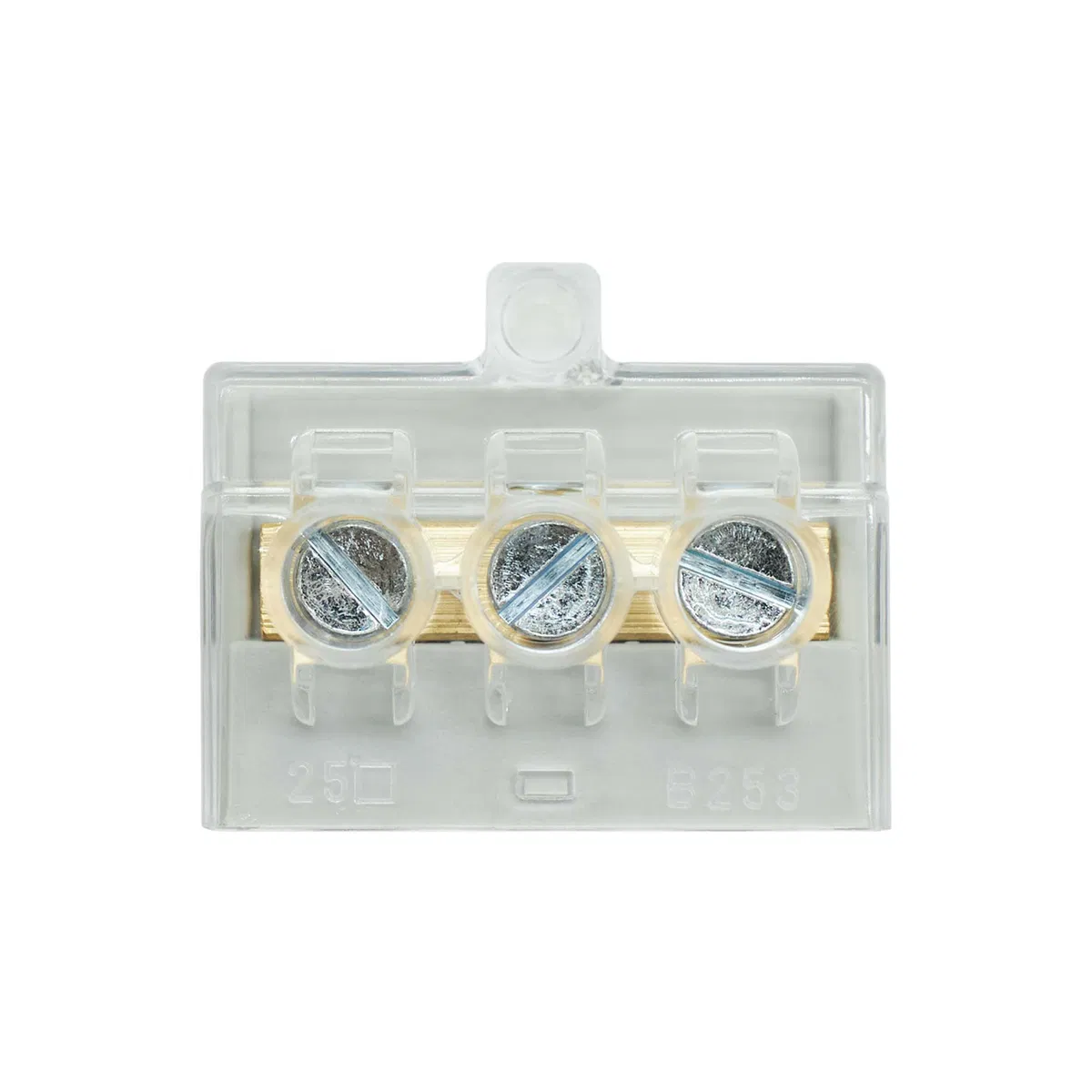

Single-pole terminal block is designed for connecting conductors using screw fixation. Durable galvanized steel screws prevent thread stripping. The special shape of the insulating part prevents the fully unscrewed fastener from falling out. The block can be mounted on a DIN rail using the 159SM support or to a surface via a mounting loop. Maximum conductor cross-section – 25 mm2. Number of holes in the block – 3 pcs.
Version tested for explosion protection "Ex e"
No
Minimum possible mounting height
30 мм
Length
40 мм
Length
40 мм
Flammability class of insulation material in accordance with UL57
EV004431
Number of terminals per pole
3
Number of poles
1
Housing insulation material
Polycarbonate (PC)
Rated voltage
500 В
Rated current In
100 А
Closing plate can be fitted if required
No
Transparent
Yes
Operating temperature
85 град.C
Operating temperature from
-5 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
1 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
10 кв.мм
Mounting method
EV000154
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Grey
Color
Grey
Width/connection pitch
33 мм
