505 ₽
Get back 5 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse

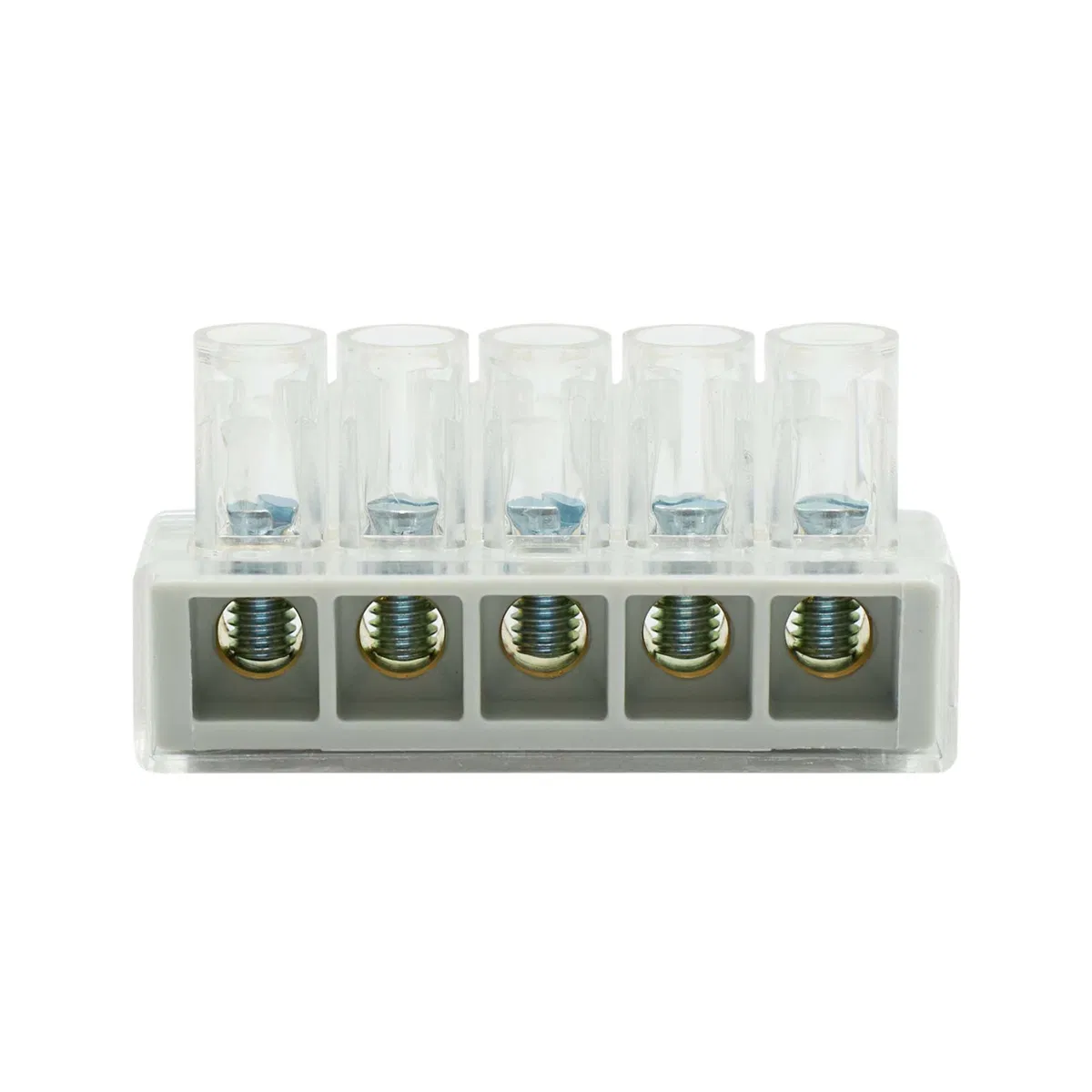

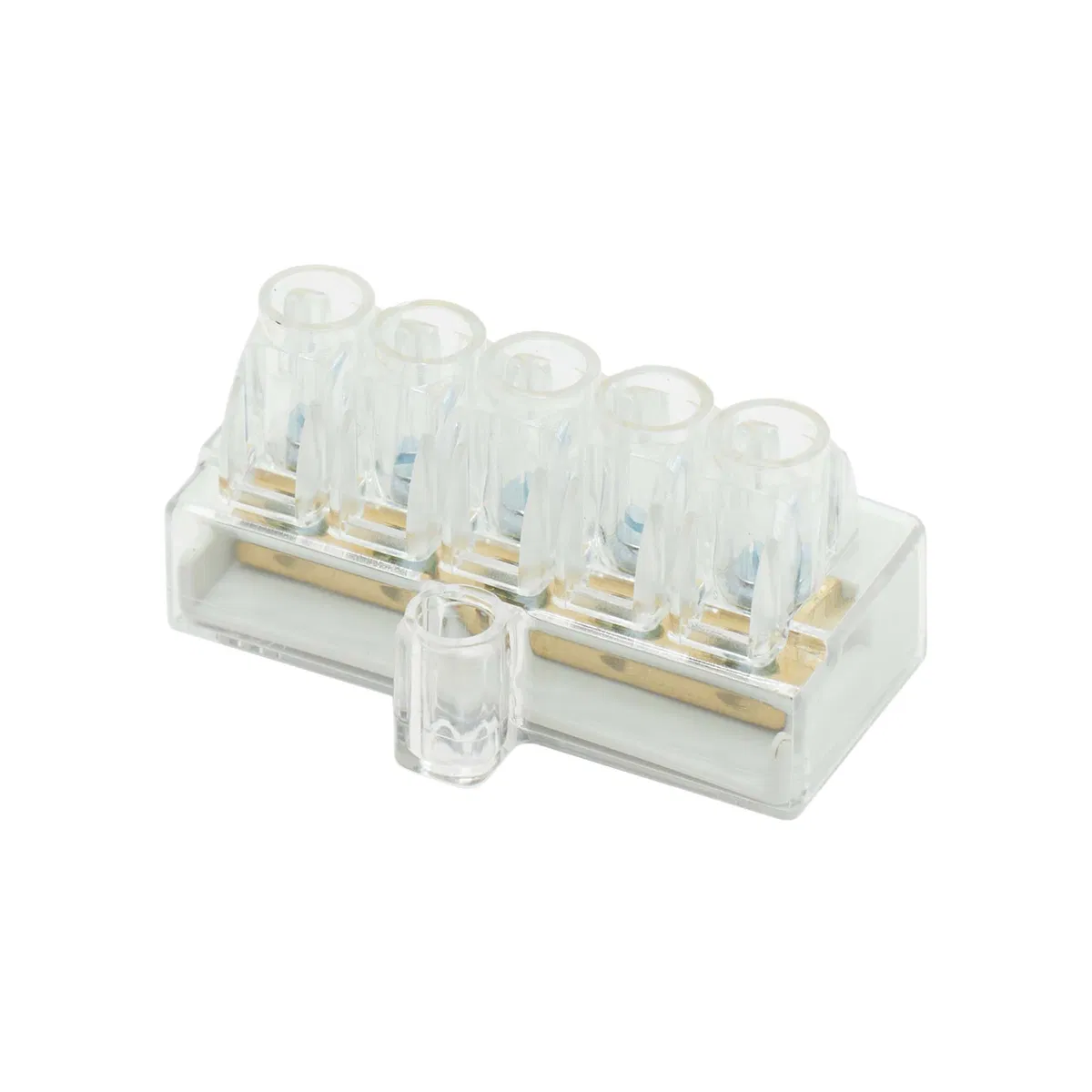

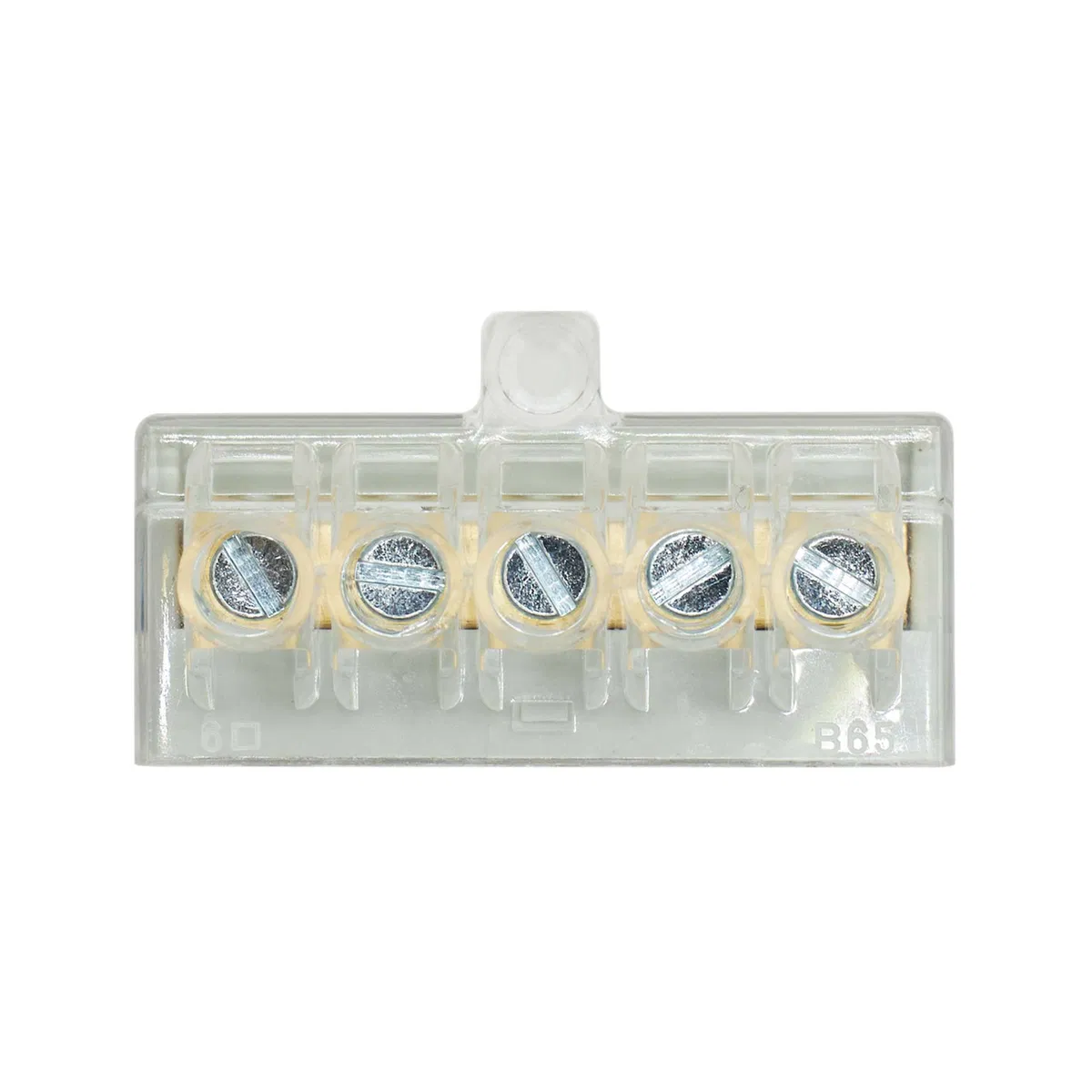

Single-pole terminal block is designed for connecting conductors using screw fixation. Strong galvanized steel screws prevent thread stripping. The special shape of the insulating part prevents the fully unscrewed fastener from falling out. The block can be mounted on a DIN rail using the 159SM support or to a surface via a mounting loop. Maximum conductor cross-section – 6 mm2. Number of holes in the block – 5 pcs.
Version tested for explosion protection "Ex e"
No
Minimum possible mounting height
23 мм
Length
45 мм
Length
45 мм
Flammability class of insulation material in accordance with UL57
EV004431
Number of terminals per pole
5
Number of poles
1
Housing insulation material
Polycarbonate (PC)
Rated voltage
450 В
Rated current In
42 А
Closing plate can be fitted if required
No
Transparent
Yes
Operating temperature
85 град.C
Operating temperature from
-5 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
6 кв.мм
Stranded flexible conductor cross-section from
1 кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
2.5 кв.мм
Mounting method
EV000154
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Grey
Color
Grey
Width/connection pitch
25 мм
